Connector Configurations
126 PT2000™ & TopGun™
PT Dock

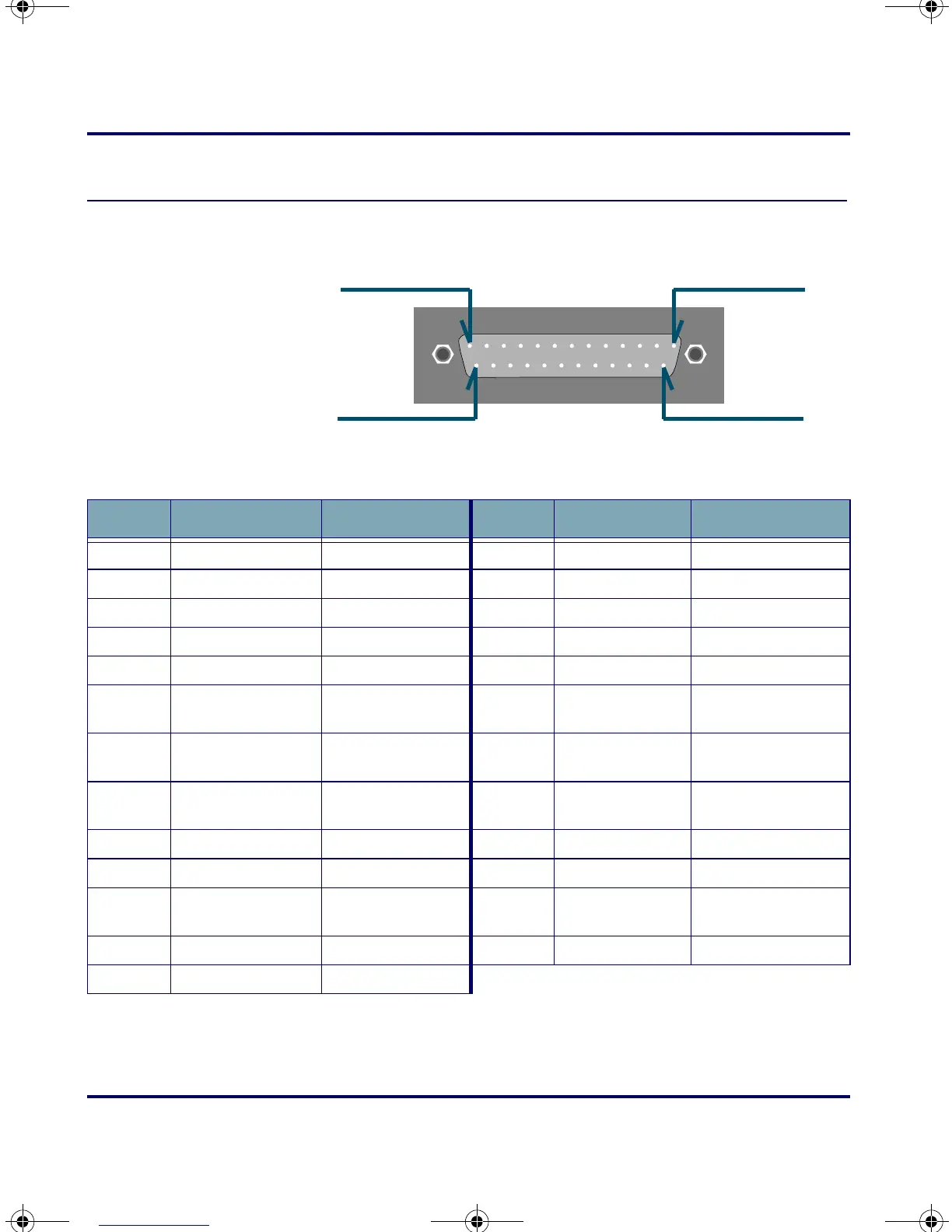

Figure F-3: PT Dock Pinouts
Table F-3: PT Dock Pinouts
Pin #13 Pin #1
Pin #25 Pin #14
Pin # Description Usage Pin # Description Usage
1 No connection 14 Ground
2 No connection Reserved 15 No connection
3 No connection Reserved 16 No connection
4 485- Reserved 17 No connection
5 485+ Reserved 18 No connection
6 No connection 19 Serial handshake
out
Controls received
data
7 Keyboard interface 20 Serial data in Received data to
dock
8 Keyboard interface 21 Serial data out Transmitted data
from dock
9 No connection 22 No connection
10 No connection 23 +5V +5 volts in to dock
11 Serial handshake in Controls
transmitted data
24 No connection
12 Keyboard interface 25 Ground
13 Keyboard interface
