Connector Configurations
124 PT2000™ & TopGun™
Bar Code & Magnetic Stripe Reader Connector

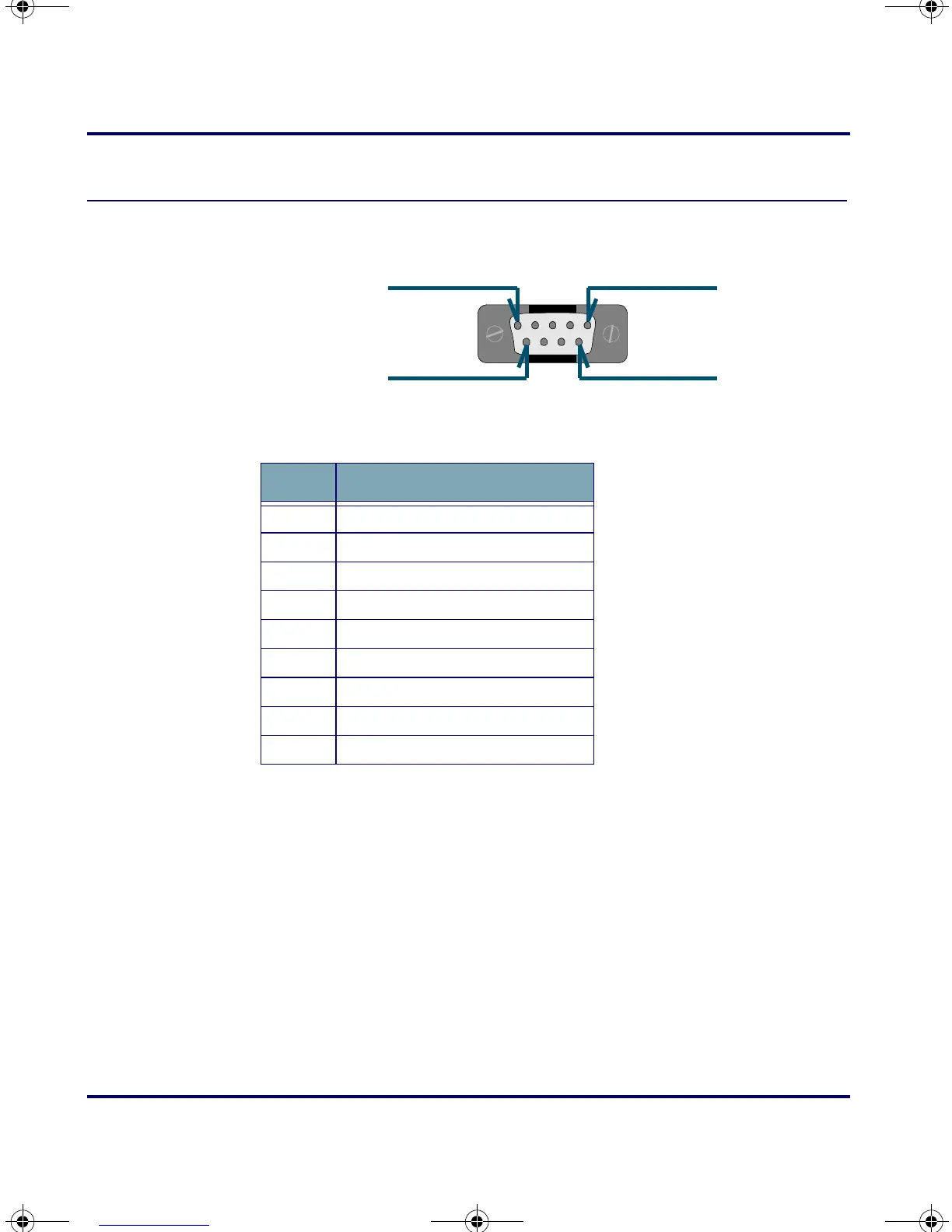

Figure F-1: Bar Code & Magnetic Stripe Reader Pinouts
Table F-1: Bar Code & Magnetic Stripe Reader Pinouts
Pin #1 Pin #5
Pin #6 Pin #9
Pin # Description
1 Laser sync in
2 Bar code data in
3 Good-read out
4 Mag stripe information in
5 Laser trigger in
6 Laser-scan enable out
7 Ground
8 Ground
9+5V
