© PSI (Photon Systems Instruments), spol. s r. o.
56

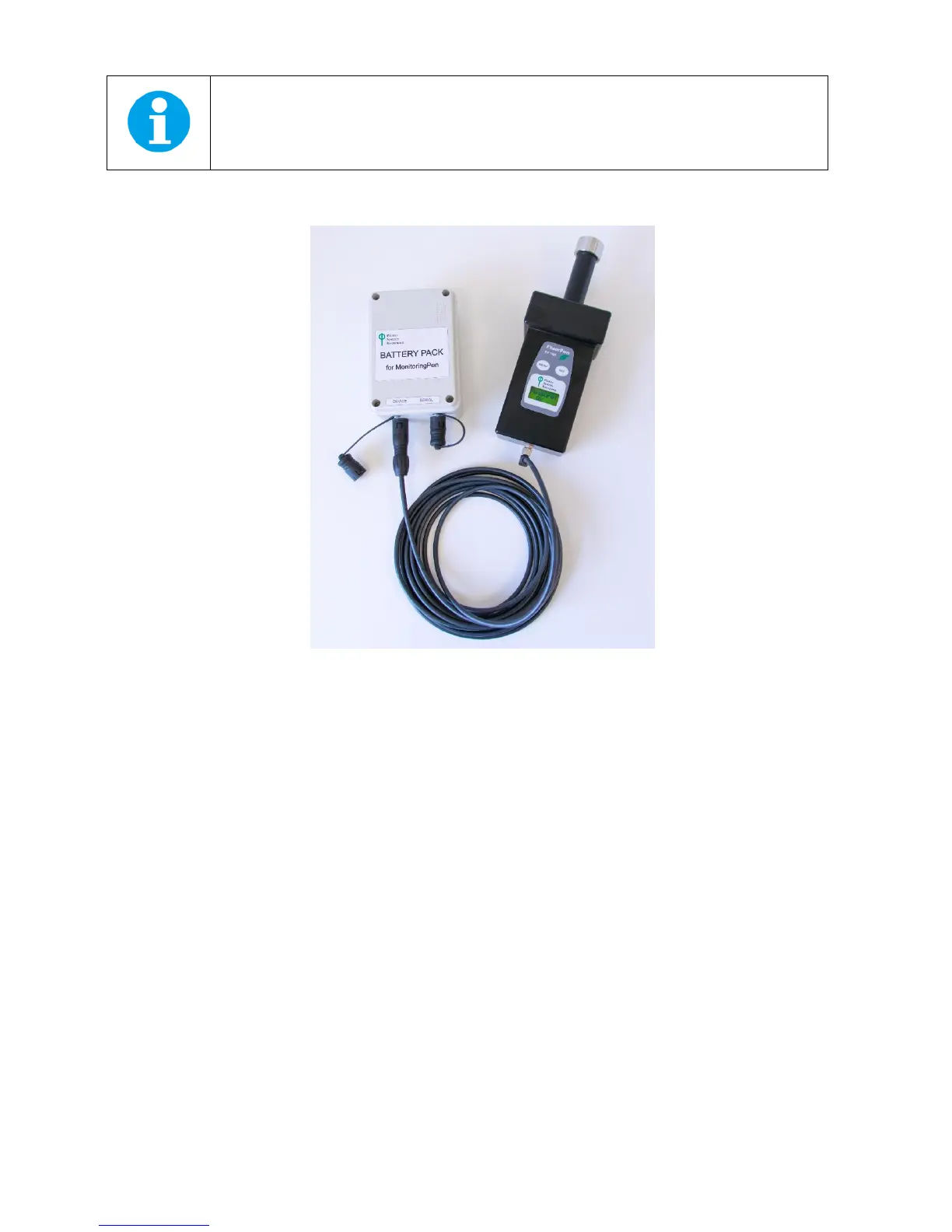

Fig. 34 Monitoring Pen MP 100-A charged via Extended Temperature Range Battery Pack.
Connectors of Battery Pack:
Device
Serves for connection between Monitoring Pen and the battery. This connection is necessary for Pen operation and data
download.
Serial
The connector enables communication between Monitoring Pen and PC.
Battery exchange:
1. Unscrew 4 screws and remove the battery pack cover (Fig. 35 a, b).
2. Disconnect the internal battery from the cable (Fig. 35 c).
3. Place new battery into the pack, connect it with the cable and put back the cover.
