PT PT200MI - Rear Panel Description

PT200MI instruction manual 7

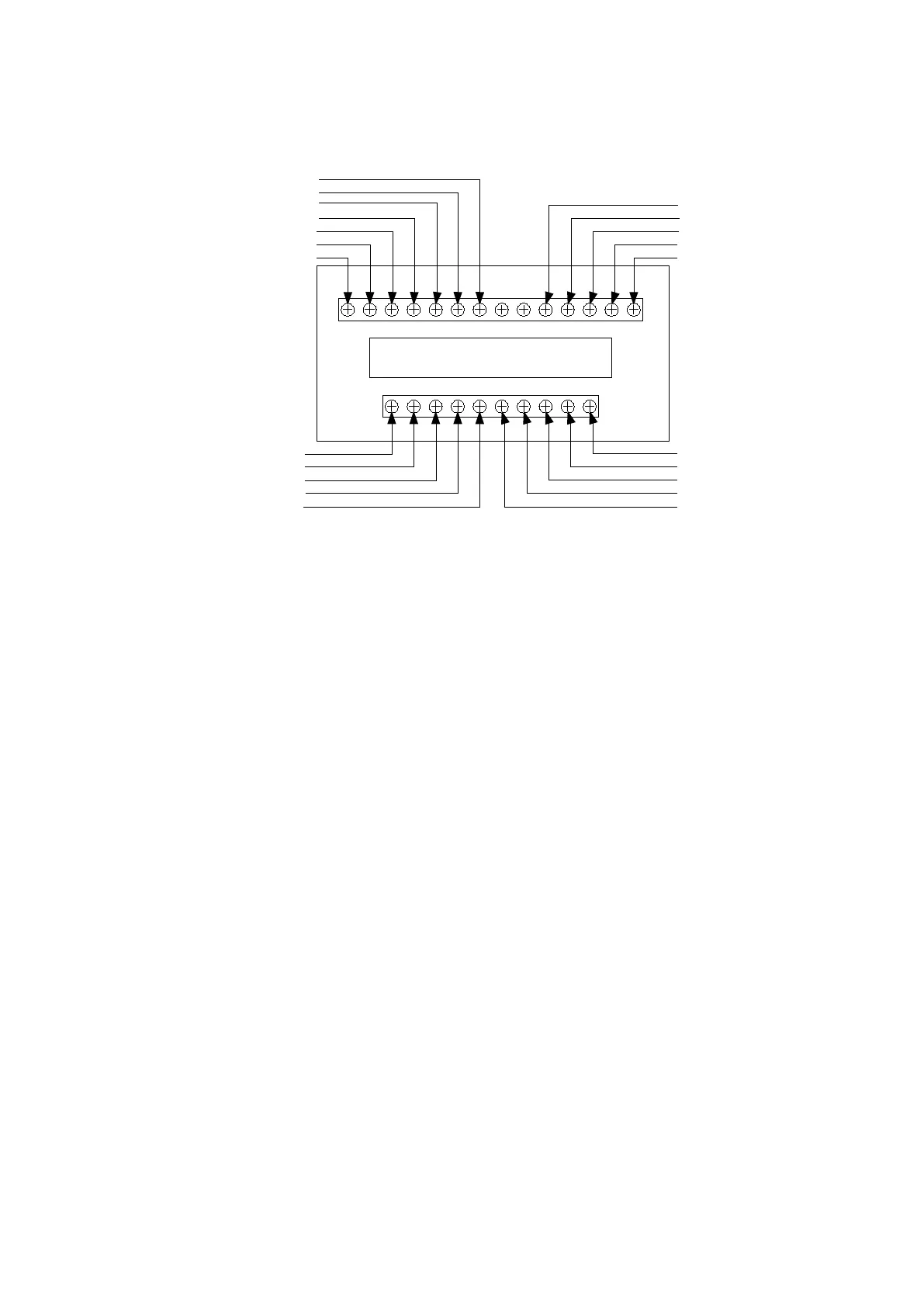

4.3 REAR PANEL DESCRIPTION
1. Mains power input terminal: AC (PH), AC (N), EARTH
2. Load cell input terminal: SIG+, SIG-, EXC+, EXC-, SHIELD
3. Input terminal: IN1, IN2, IN3, COM (Input 1, Input 2, Input 3, Input Common)
4. Hi/Lo comparison output terminal: HH, HI, LO, LL, COMMON (with option)
Single material batch output terminal: OP, PL, FF, ZB, COMMON (with options)
5. Serial communication terminal: TxD, RxD, COMMON (with options)
6. Analogue signal output terminal: OUTPUT, COMMON (with options)
Common for Analogue options
Optional BCD Connector
Output for Analogue options
Common for RS232/RS485 options
RxD/- for RS232/RS485 options
TxD/+ for RS232/RS485 options
HH/OP for Comparator/Batching options
HI/PL for Comparator/Batching options
LO/FF for Comparator/Batching options
LL/ZB for Comparator/Batching options
Common for Comparator/Batching options
Input 2
Input 3
Input for load cell SIG+
Input for load cell SIG-
Input for load cell EXC+
Input for load cell EXC-
Input for load cell Shield
AC Mains connection
AC Mains connection
Earth connection
Input Common
Input 1
