Keypad Adapter Plate
• A keypad adapter plate is an aluminum plate used to mount
keypads to stands, bollards, and goosenecks manufactured by
other companies.
• The installer measures, marks, and drills holes in the adapter
plate to match the stand configuration. To prevent tampering,
ensure the holes are countersunk on the same side as the
installed screws so that the keypad covers the mounting screws.
• The screws and screwholes provided on the aluminum plate
match up with the APEX keyhole mounting pattern.
Single Bollard
A bollard is an attractive and functional stand for
keypads. It helps protect the keypad from vehicle
damage. It can be used in driveways for vehicle
access or near doors as a keypad stand. Height is
determined by the length of the pipe on which it is
mounted.
Bollards can be filled with concrete and used as
barriers to protect keypads, walls, or gates.

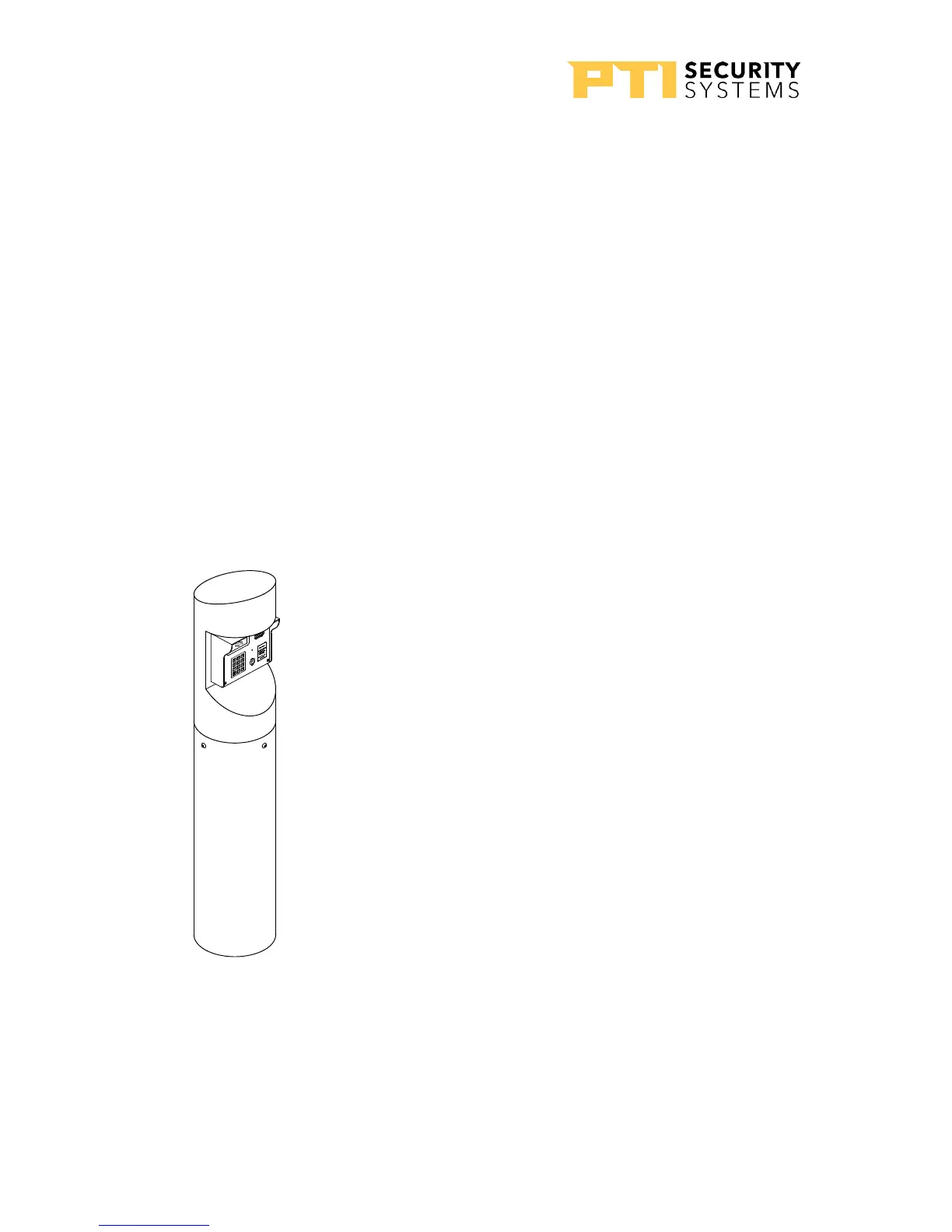

Drawing 7: single
bollard
APEX Access Device
8
114A3863.E rev. 7-2017
