Installation Instructions
1
Open the device by removing the four stainless steel button
head machine screws on the front of the keypad faceplate
using the security hex key provided with the unit. The front
and back half will separate.
2
Mount the back plate to the desired keypad location using the
three-keyed holes. Seal around the back of each screwhole
and around the back of the wire hole with an outdoor silicone
sealant as shown in”Drawing 9: silicone seal for goosneck” on
page 11
• If the keypad is being mounted
on a gooseneck or bollard, run
a bead of silicone in a triangle
around the three screwholes as
shown in Drawing 9 on page
11:
• If the keypad is being mounted
on a wall, before mounting, run
a bead of silicone in a square
around the back of the keypad
about ½ inch from the edge.
3
Pull the necessary wires through the wire hole on the back
of the housing. Allow an extra 1 foot of wire to remain inside
the housing. After the wire connections are complete, excess
wire can be pushed back into the gooseneck or wall or it can
be carefully positioned inside the keypad housing for future
maintenance and service. Each keypad should have the
following wires as shown in “Drawing 10: KP wiring for the
APEX keypad” on page 12:

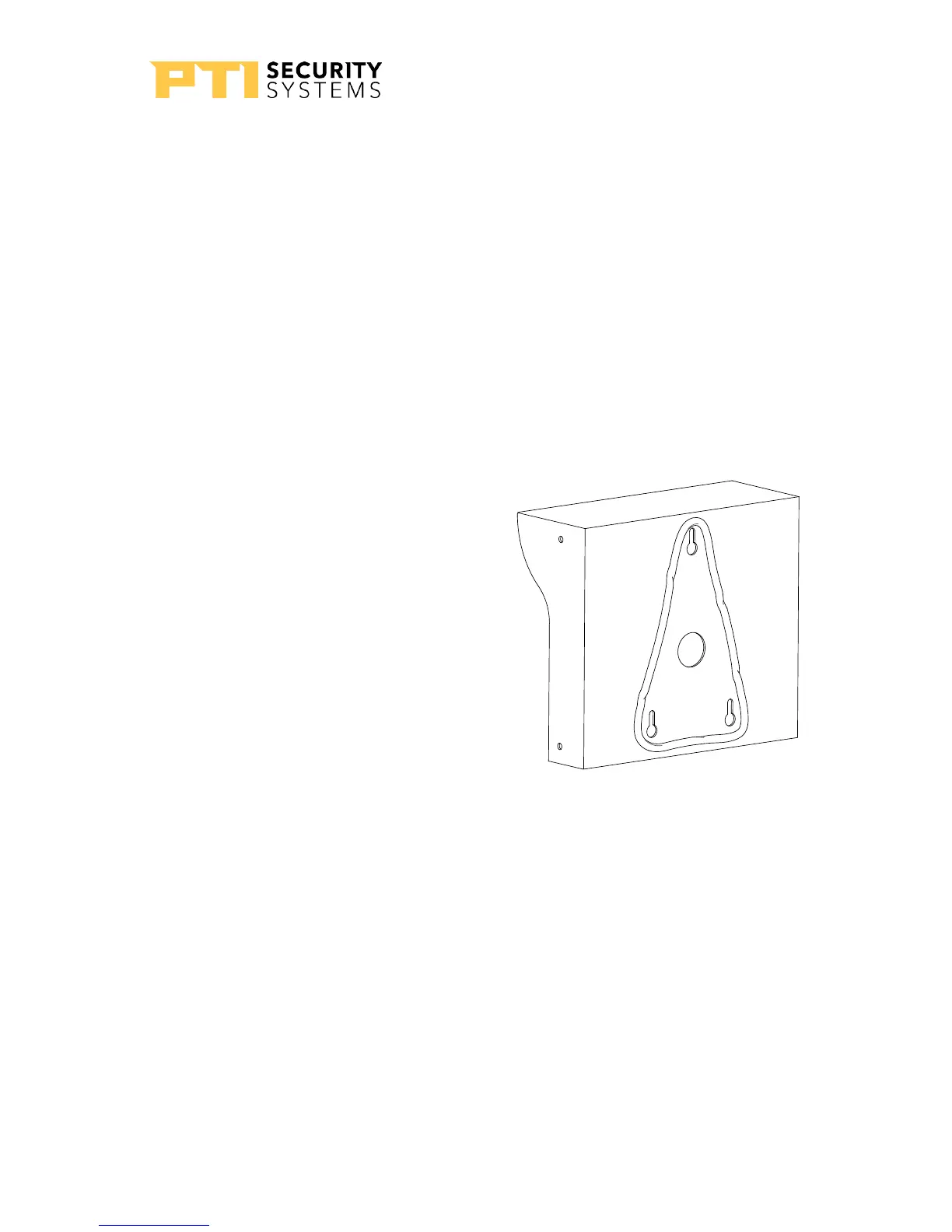

Drawing 9: silicone seal for
goosneck
APEX Access Device
11
rev. 7-2017 114A3863.E
