DRY CONTACT INPUTS:

IN 1 = DOOR CONTACT

IN 2 = REQUEST TO EXIT

IN 3 = PRESENCE SENSE

IN 4 - INTERCOM CALL

NOTES

1. Dry contact inputs only for both extended mux chan-

nels and extended doors wiring.

2. Common wires connected to even numbered terminals

of connector

(terminals numbers shown above for reference)

APEX

MOTHERBOARD

IN 4

IN 3

IN 2

IN 1

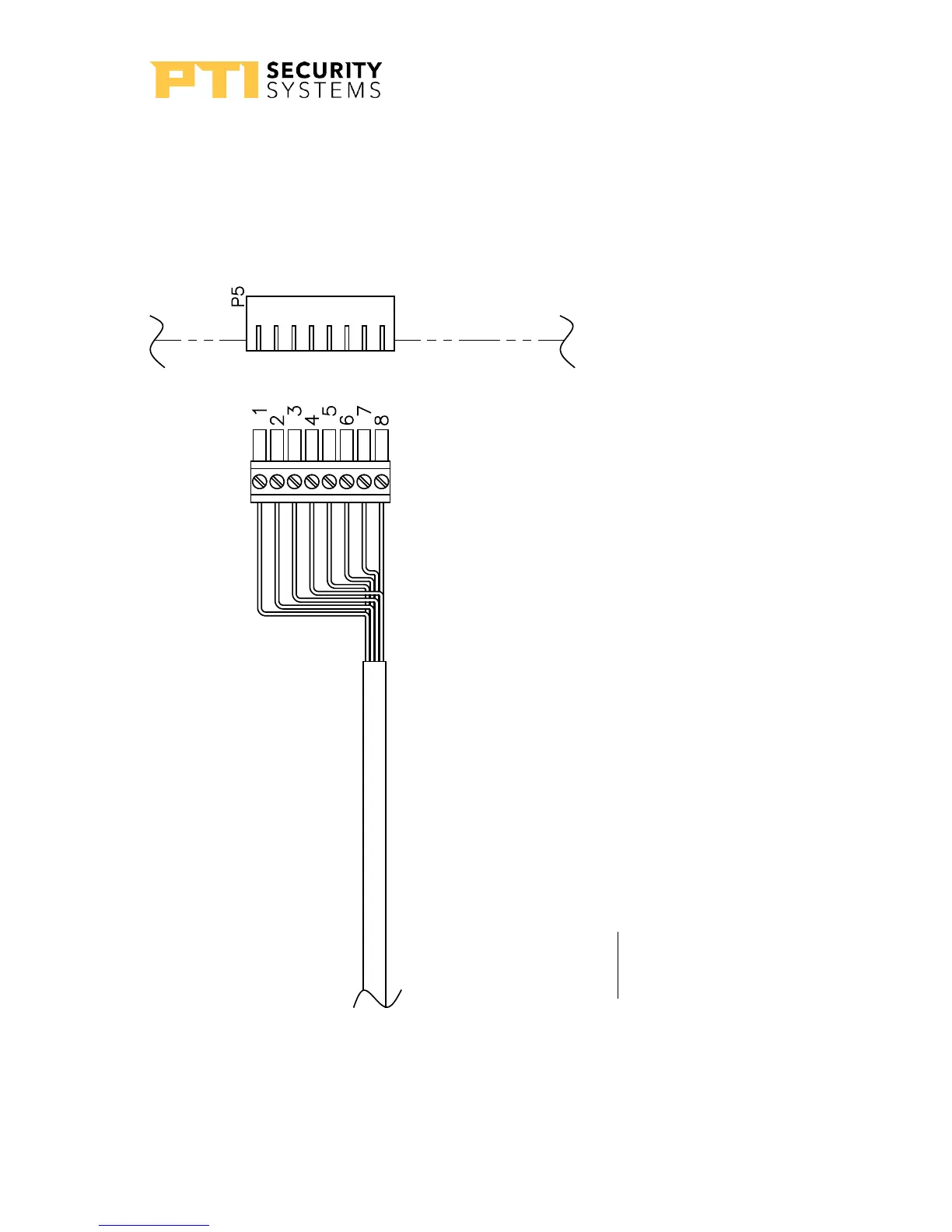

Drawing 19: Dry contacts inputs

APEX Access Device

rev. 7-2017 114A3863.E

PTI security systems APEX - Page 33
