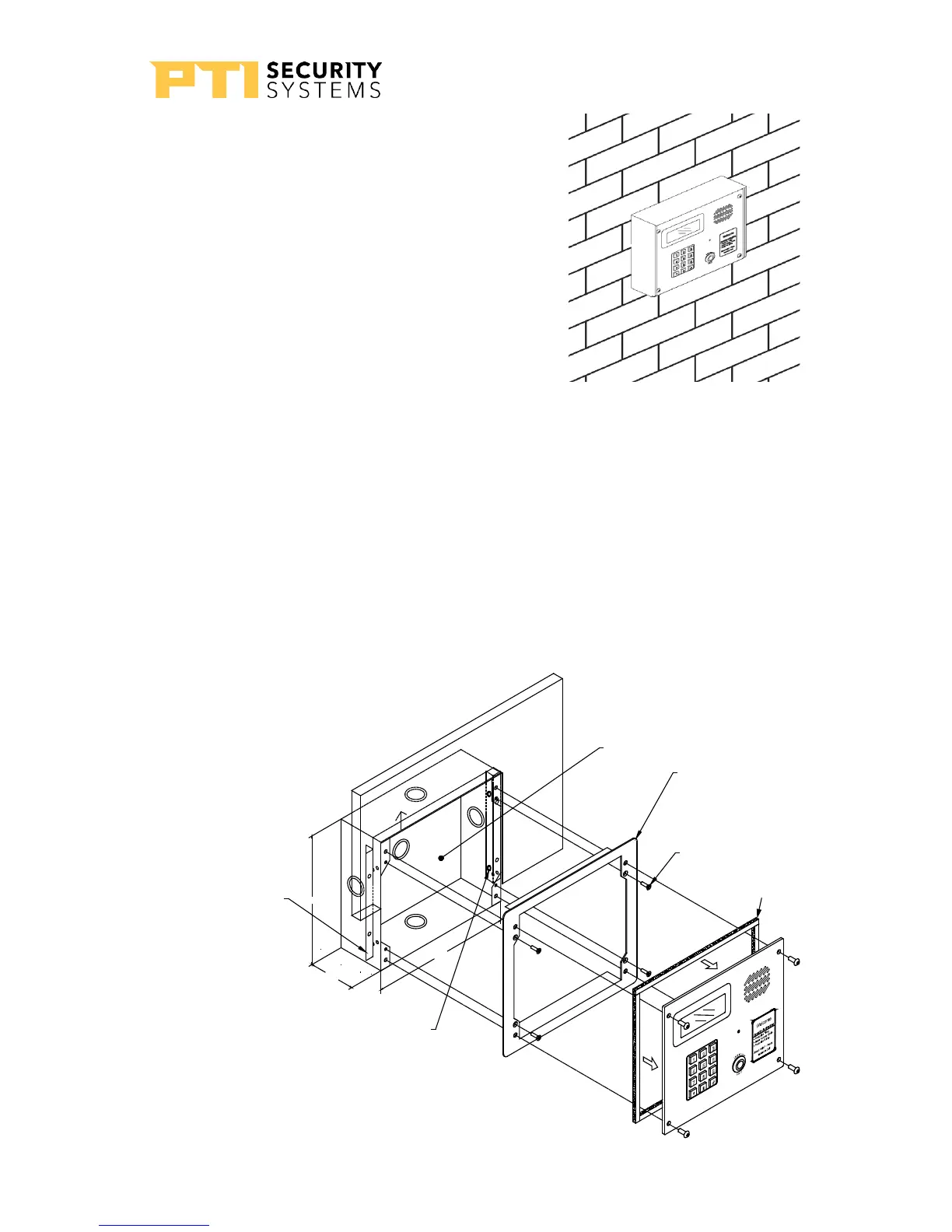

Box Mount
A box mount with no shaded overhang
is available for locations that require the
keypad to be mounted lower than standard
height, such as for handicap access. This
box mount must be ordered separately.
With a normal APEX mount, a standing
person may not be able to see the display.
Mounting height varies from 42” – 58”
from the finished floor to the center of the
‘5’ button on the touchpad.
Most standard keypad installations place the ‘5’ button on the
touchpad at approximately 50 inches from the finished floor for
walk up keypads, and 45 inches from the finished driveway for
standard vehicle access.
6 - 32 x /”
F.H MACHINE SCREWS
ADAPTOR/
COVER PLATE
JUNCTION BOX
GASKET
MATERIAL
SHEETROCK
TOP
ADJUSTABLE BRACKET.
BRACKET CAN BE POSITIONED
FLUSH TO EDGE OF J-BOX
⁄” FROM EDGE AND /” FROM
EDGE (LEFT AND RIGHT
6 - 32 x /” P.H MACHINE SCREWS
(FASTENS J-BOX MOUNTING
BRACKETS TO J-BOX)
7.800”
2.800”
8.440”
