Page 13 of 52
Automatic Stroke Adjustment
If ordered with a controller you would have the XAE which is a microprocessor-based stroke length
control device. The unit is physically attached and integrated into the pumps design. This controller
allows for precise adjustment of output flow of a process media by means of stroke length position. For
additional information on your XAE please download or review a copy of the IOM.

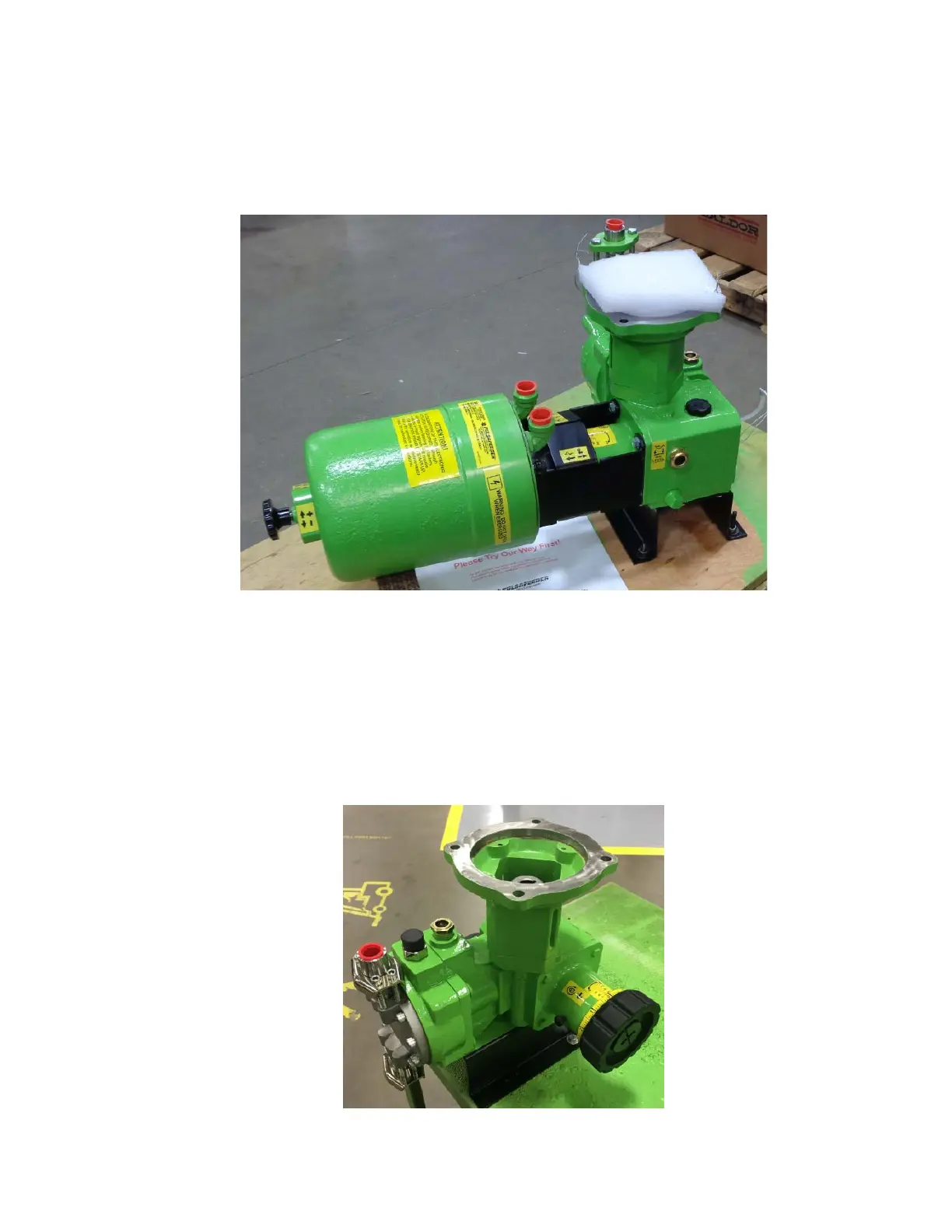

Figure 13
Gear Ratio Assembly/Motor Adaptor
PulsaPro pumps are driven by a standard C-face electric motor mounted on the adaptor input flange.
The motor drives a set of worm gears located in the gearbox which will then convert rotational speed
into torque. They in turn power the eccentric shaft assembly that converts rotary motion into
reciprocating motion. The motor adaptor is available in a variety of sizes to accommodate different
motor frame specifications.
Figure 14
