Owner’s Manual 12/11/2013 24
Assembly and Parts, Cont.
Drive End Cap Assembly

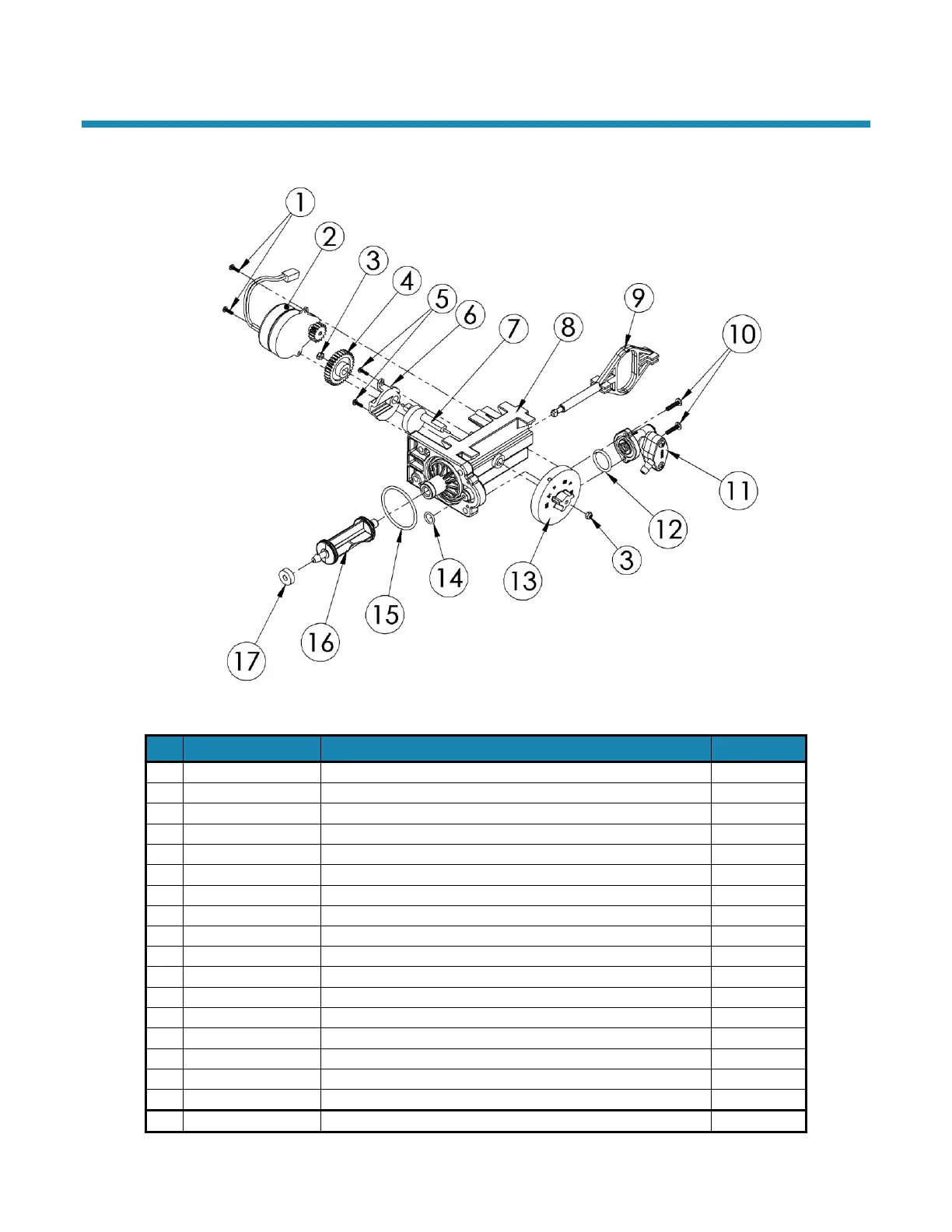

Figure 12: Drive End Cap Assembly
Part #
Description
Quantity
1
90802
Screw
2
2
90217
Drive Motor
1
3
93891
1/4-inch Hex Nut
2
4
93238
Drive Gear
1
5
90809
Screw, Cam Cover
2
6
93219
Piston Slide Cam Cover
1
7
93217
Piston Slide Cam
1
8
93583
Drive End Cap
1
9
54202
Piston Slide
1
10
90818
Screw
2
11
93699
Brine Valve Assembly (Barbed)
1
12
90821
O-Ring
1
13
54502 KIT
Magnet Disk Assembly
1
14
90828
O-Ring
1
15
93808
O-Ring
1
16
53322
Drive Piston Assembly
1
17
93839
Drain Gasket
1
95301T
Entire Assembly (all of the above parts except 1, 2, and 13)
