the preheat time and increase cutting efﬁciency. This function is the commonly-used edge perforation function.

• If press [X], the system considers current point is the paused point, it will continue cutting it. That is, the system offsets the cutting point. When the

cutting machine paused or a power outage, if the cutting tip or steel plate with the pan has been offset, or the user would like to think that is offset

cutting, you can press this button.

• If press [Y], The system only return to the paused point quickly, and then break off. During the cutting process, if discovery cutting torch malfunction,

or other issues, need to move the cutting tip out of cutting region to overhaul. After the maintenance, this key can be pressed. Then return to the paused

point, press the «start» button, the system automatically continues to cutting.

BACK TO REFERENCE FUNCTION

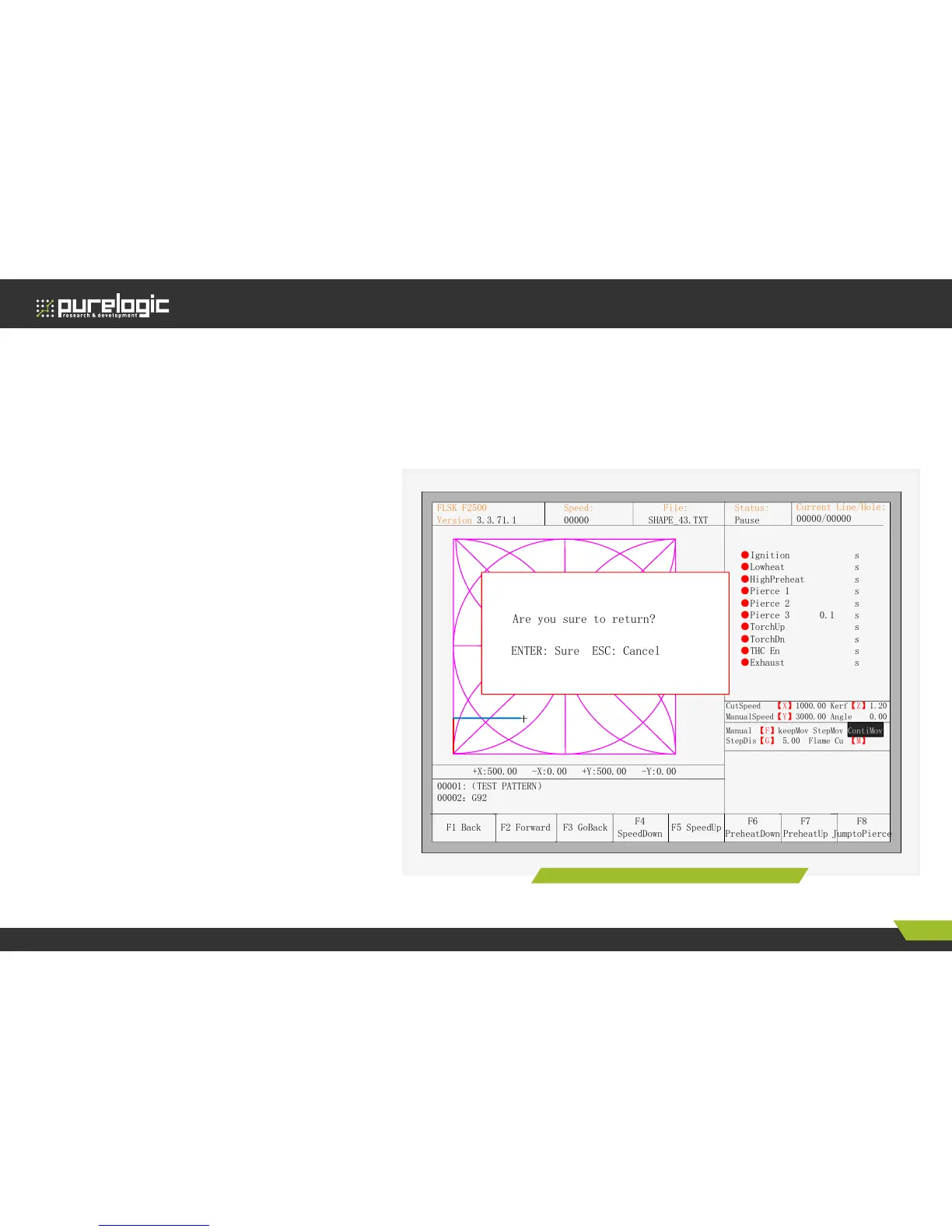

Pause in the processing, if press the [F3], then the

system will prompt.

Press the Enter key, the system will automatically return

to the starting point of the work piece, and then the

system automatically switches to processing the main

interface, and waits for further user action.

F1 Back F2 Forward F3 GoBack

SpeedDown

F5 SpeedUp

PreheatDown

PreheatUp

JumptoPierce

FLSK F2500

Version 3.3.71.1

Speed:

00000

File:

SHAPE_43.TXT

Status:

Pause

Current Line/Hole:

00000/00000

+X:500.00 -X:0.00 +Y:500.00 -Y:0.00

00001:（TEST PATTERN）

00002：G92

●Ignition s

●Lowheat s

●HighPreheat s

●Pierce 1 s

●Pierce 2 s

●Pierce 3 0.1 s

●TorchUp s

●TorchDn s

●THC En s

●Exhaust s

Manual 【F】keepMov StepMov ContiMov

StepDis【G】 5.00 Flame Cu 【M】

CutSpeed 【X】1000.00 Kerf【Z】1.20

ManualSpeed【Y】3000.00 Angle 0.00

Are you sure to return?

ENTER: Sure ESC: Cancel
