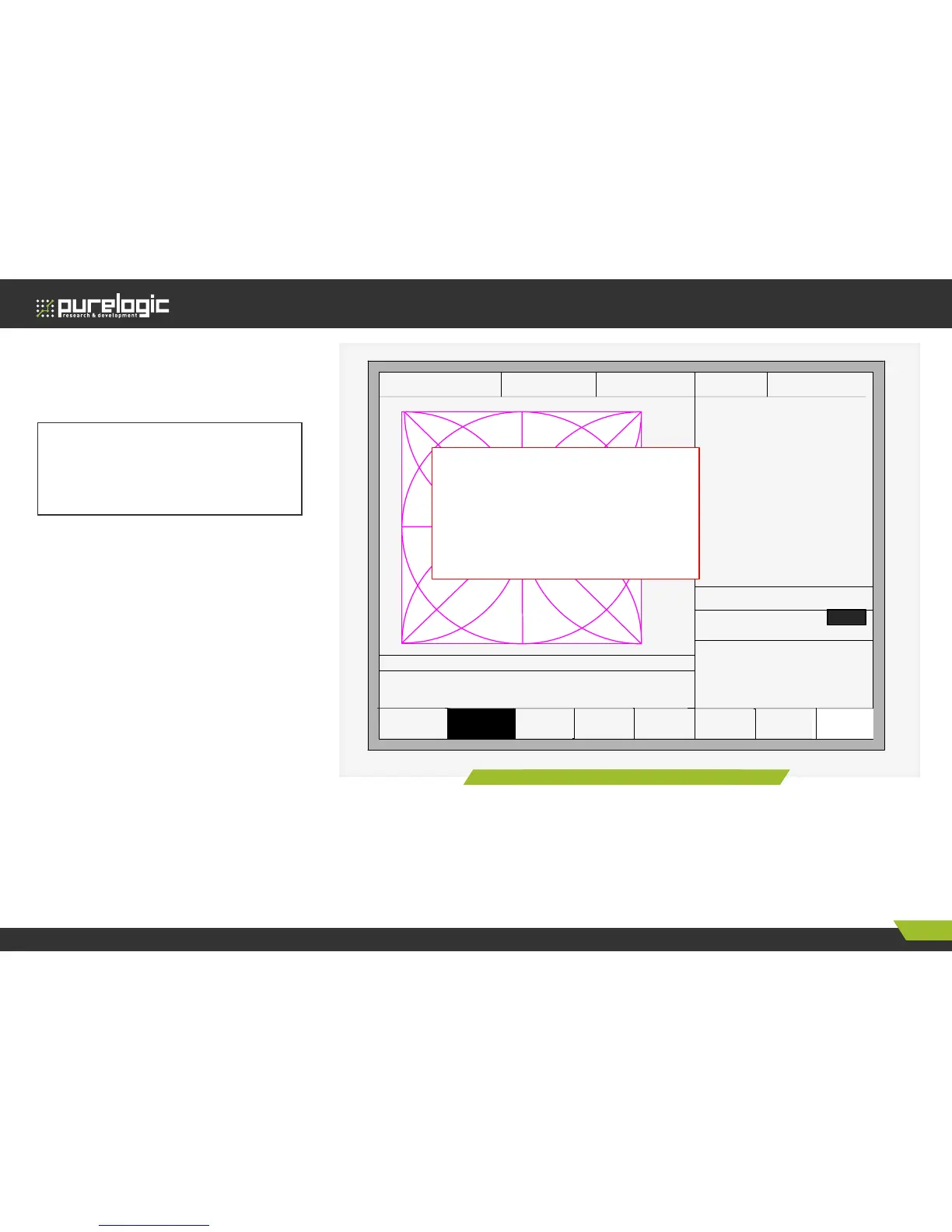

Figure 16. Return to the start point after adjusting
F1 Mirror F2 Angle F3 Array F4 Scale
F5
SelLinePierce
F6 EditFile F7 Revert
F8 OK
FLSK F2500
Version 3.3.71.1
Speed:
00000
File:
SHAPE_43.TXT
Status:
Pause
Current Line/Hole:
00000/00000
+X:500.00 -X:0.00 +Y:500.00 -Y:0.00
00006: G01 X0 Y500.00
00007：G01 X500.00 Y0
●Ignition s
●Lowheat s
●HighPreheat s
●Pierce 1 s
●Pierce 2 s
●Pierce 3 0.1 s
●TorchUp s
●TorchDn s
●THC En s
●Exhaust s
Manual 【F】keepMov StepMov ContiMov
StepDis【G】 5.00 Flame Cu 【M】
CutSpeed 【X】1000.00 Kerf【Z】1.20
ManualSpeed【Y】3000.00 Angle 0.00
ENTER: Return back
ESC: Don’t move back
ENTER ANGLE
When the angle of the current work piece is
known, you can enter the angle:
After manually enter the angle, press
[ENTER] to make sure, the graphic will be
rotate with the corresponding angle. Positive
angle means rotate in counterclockwise,
while negative means clockwise. Press [ESC]
to exit angle adjusting.
ARRAY
In the part options menu, press [F3], the
system will prompt as Fig. 17, there are three
ways to arrange, arrange in matrix, staggered
arrange, arrange in stack.
Please enter angle
min: -360 max: 360
Angle: 0.00
