Purelogic HYD-2300

HYD-2100. CNC Plasma&Flame Cutting Control System
Edition of 28.07.2015
53
www.purelogic.ru8 (800) 555 63 74
F1 Input
F2 Output F8 Save
Definition of output
Ignition 03
LowPreheat 01
HighPreheat 17
LowOxygen 04
MidOxygen 05
HighOxygen 14
TorchUp 02
TorchDown 15
Exhaust 06
THC 08
PosDetect 19
ArcStart 16
LowSpdInCorner 18
Dust spray 07
Raise dust 20
Dust preheat 21
F3 Axes F4 Motor
Port Type
Port Type
Port- Press PgUp/PDn Type-Press Enter
F1 Input
F2 Output F8 Save
Definition of output
Ignition 03
LowPreheat 01
HighPreheat 17
LowOxygen 04
MidOxygen 05
HighOxygen 14
TorchUp 02
TorchDown 15
Exhaust 06
THC 08
PosDetect 19
ArcStart 16
LowSpdInCorner 18
Dust spray 07
Raise dust 20
Dust preheat 21
F3 Axes F4 Motor
Port Type
Port Type
Port- Press PgUp/PDn Type-Press Enter
Signal
Shaping
Photoele
-ctric
isolation
Different
-ial
output
X
Y+
Y-
XDIR/XPWM-
XPWM+
YDIR/YPWM-
YPWM+
XDIR+
XDIR-
YDIR+
YDIR-
XCP+
XCP-
YCP+
YCP-
System
Signal
Shaping
Photoele
-ctric
isolation
Different
-ial
output
X
Y+
Y-
XDIR/XPWM-
XPWM+
YDIR/YPWM-
YPWM+
XDIR+
XDIR-
YDIR+
YDIR-
XCP+
XCP-
YCP+
YCP-
System

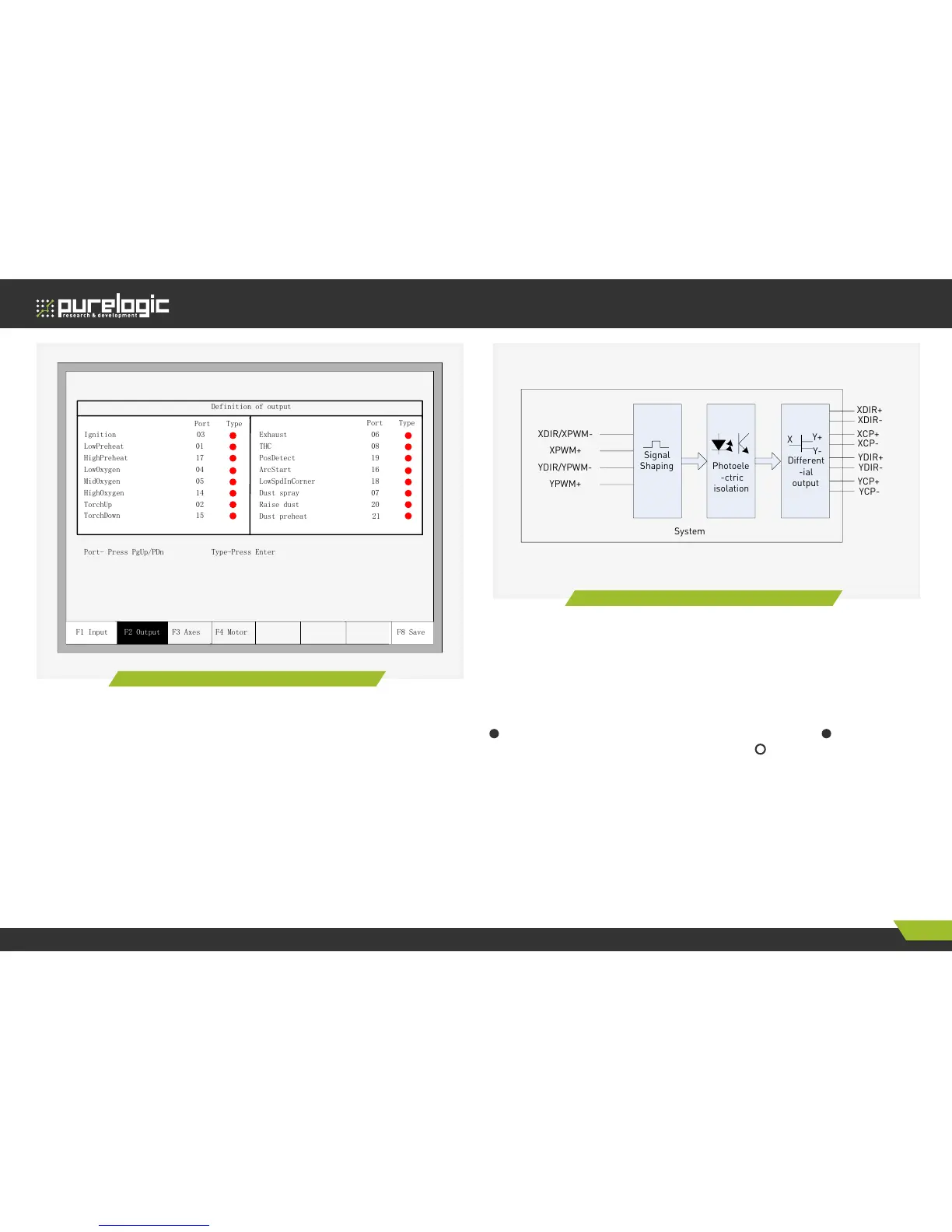

Figure 61. Output Configuration
Figure 62. Motor port schematic diagram
In the output configuration interface, move the cursor to numbers of the serial number, Press the PgUp or PgDn to change the input port number,
that also changes the pin number of 25-pin input terminal. Move the cursor to place, you can press ENTER to change the input type. « » is for the
normally open type of the input, when invalid, it is for the signal of turning off, when effective, it is for the signal of closure. « » is the normally closed
type of input, when invalid, it is the signal of closure, when effective, it is the signal of turning off.
