USR-DR13X User Manual

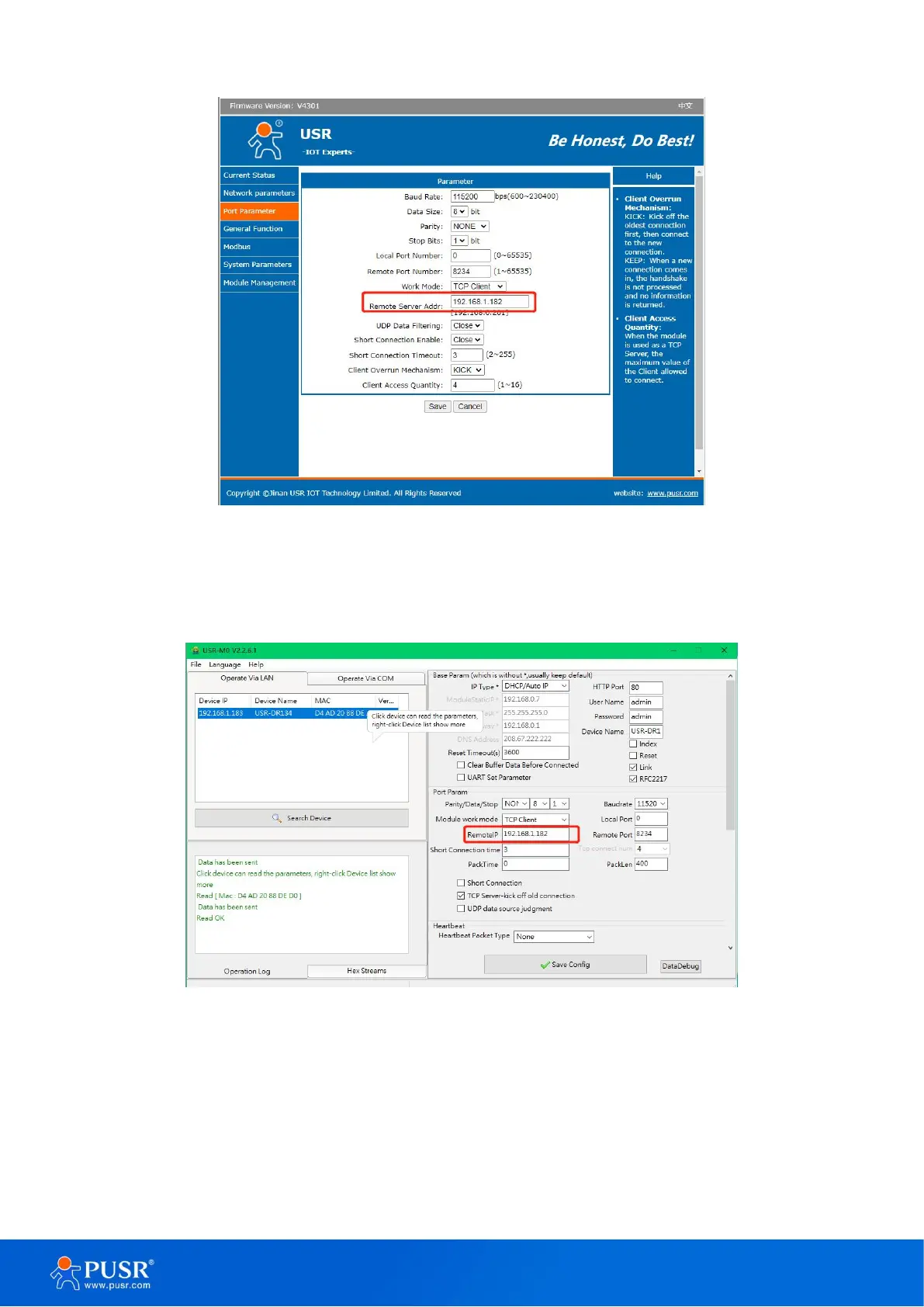

Figure 8. Serial port parameters
After restarting, check the parameters via the config software. Form the picture, we can see the parameters has
already taken effect.
Figure 9. Parameters checking via config software
The IP address of the PC must be modified to ensure that it is in the same local area network as the IP of the
serial server if you want to connect DR13X to PC directly via a net cable. The default IP address of serial server is:
192.168.0.7. Set the PC's IP address as: 192.168.0.X (X is any valid value from 2 to 253 except 7). The specific
Windows system operation page is shown in the following figure. you can access the Web page of the USR-
DR13X series serial server through browser as mentioned above.
