10Operation of the Software PVPM.disp 23
10 Operation of the Software PVPM.disp

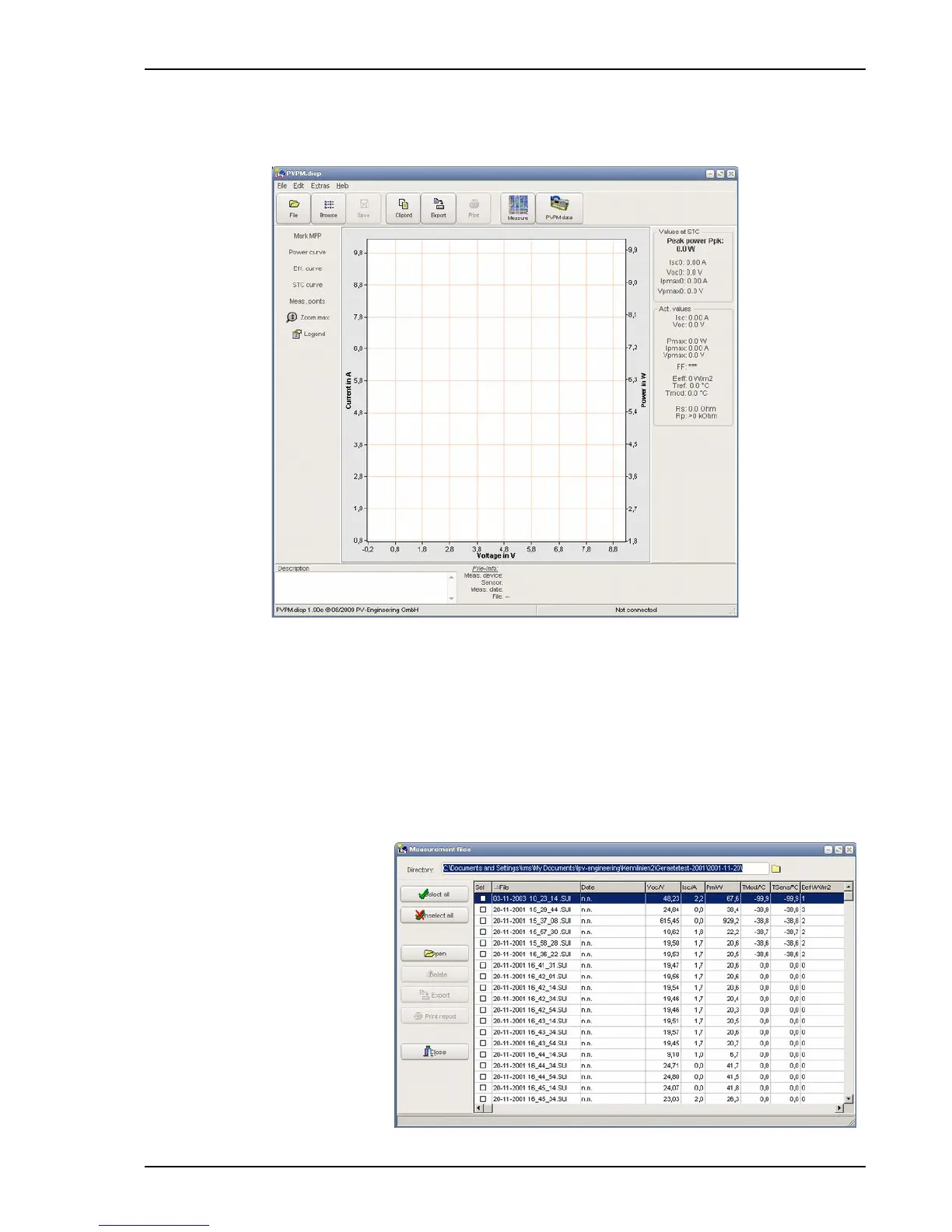

For the installation of the software please refer to chapter8. After starting the software the following window
appears:
The displayed document is empty, all values are zero. Now you can open an exisiting data file, make a
measurement or retrieve already measured data from the PVPM. The new or received data will be stored to this
document and you are able to continue evaluating these data or save it to a hard disk file. For the evaluation
you can refer to the line diagram of measured data and the displayed results. The function “Export” lets you
export the data to different file formats for further evaluation in other software.
Buttons are grayed out, when they are not active. They change to normal state, when this function is
meaningful.
10.1 Main Menu File
10.1.1 Open
I-V-curves saved to disk before can be
reloaded using the „Open“ button. The
loaded data will overwrite the data in
memory. If you want to re-use the
current data later you will have to save
it to a disk file before loading different
data. The files have the default
extension .SUI.
If you click on the directory symbol
near the displayed directory in the
above dialogue window, you can
select the directory, whose measuring
data are to be displayed in the list.
In this list you can now either select an
entry by doubleclick (these data will
Operation manual for PVPM devices PV-Engineering GmbH
