10Operation of the Software PVPM.disp 25
The buttons on top of the preview window are from left to right:
• Starting printout
• Export to PDF
• Zoom factor
• Full page
• Page settings
• Page backward / forward
• Close preview

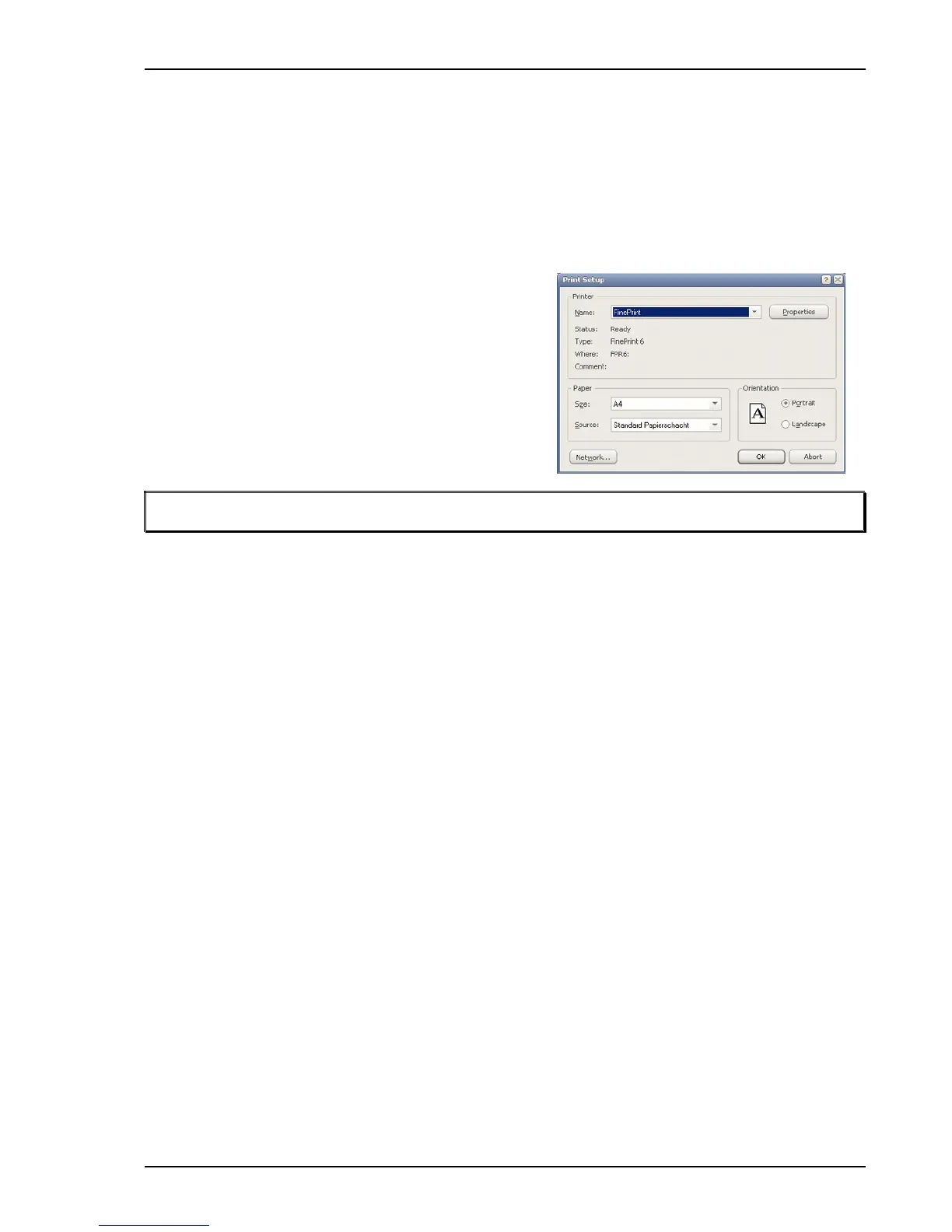

10.1.6 Printer Settings
Calls the windows standard dialogue “Printer Settings”. Select
the desired printer settings here.
10.1.7 Quit Program
Here you finish the program PVPM.disp. The current data are
not saved automatically but you will get an warning, that your
data should be saved before closing the program
Don’t forget:
Finish “Transfer” on the PVPM when you close PVPM.disp
Finish PVPM.disp always using one of the functions “Quit program”, the button “End” or the key combination
<ALT>-<F4>. It is also important, that you shut down your operating system properly, because else a data loss
might occur due to a write back cache etc.
10.2 Edit
This function is only active when the cursor is placed in a text edit field.
10.2.1 Cut
Cuts the marked text and moves it to the clipboard.
10.2.2 Copy
Copies the marked text and moves it to the clipboard.
10.2.3 Insert
Inserts the contents of the clipboard at the cursor position.
10.3 Extra
Switch the PVPM at first to „transfer“ (the solar generator under test as well as the sensors should, if necessary,
already be attached), before you use the following function “measurement”.
10.3.1 Start Measurement on PVPM / Button „Measure“
After starting the function the status line will display the message “Measurement processing– Please wait”.
The measurement will take up to 2 seconds. Directly after the measurement the measured values will be
transferred to the PC (process will be displayed in the status line) and the main window will display the values
and results. Now you can display the data in a diagram (chap. 10.4) or a list (chap. 10.5), export (chap. 10.1.3)
or save to file (chap. 10.1.2).
Important: When the measurement is initialized from the PC the data will not be stored in the PVPM!
Operation manual for PVPM devices PV-Engineering GmbH
