14I-U diagram: Explanation 38

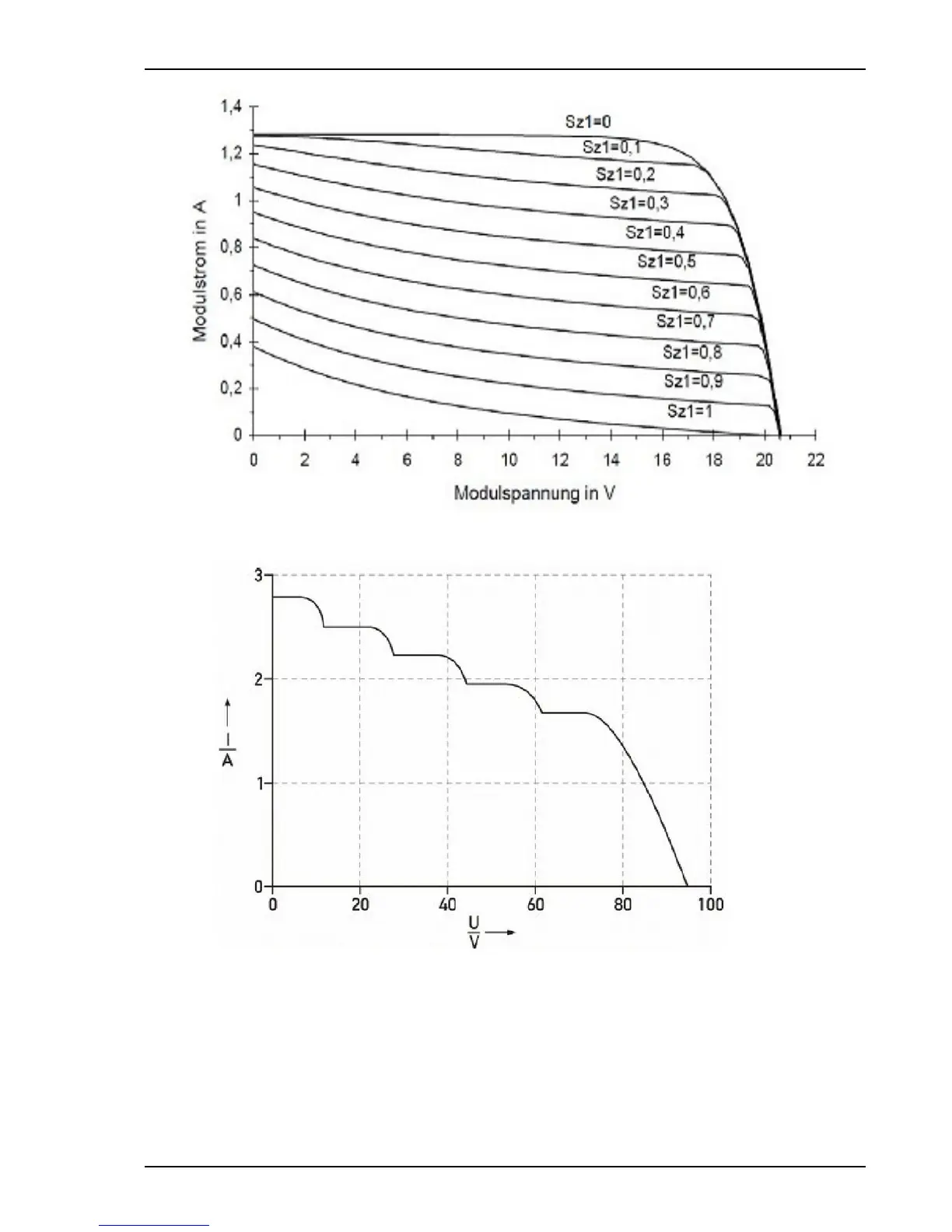

fig: Module characteristics of the module SM50 without bypass diodes, first cell differently shadows (shading
degree of SZI = 0..1), E = 407W/m2, T = 300K
fig: Resulting characteristic during series connection with bypass diode
Operation manual for PVPM devices PV-Engineering GmbH
