Pyle PLTS78DUB User Manual

www.PyleUSA.com
6
Note: the ground connection cable (parking brake B-) must be connected in order
for pictures to be played back to the monitor. If the cable has not been correctly
connected, warning message appears on the monitor.

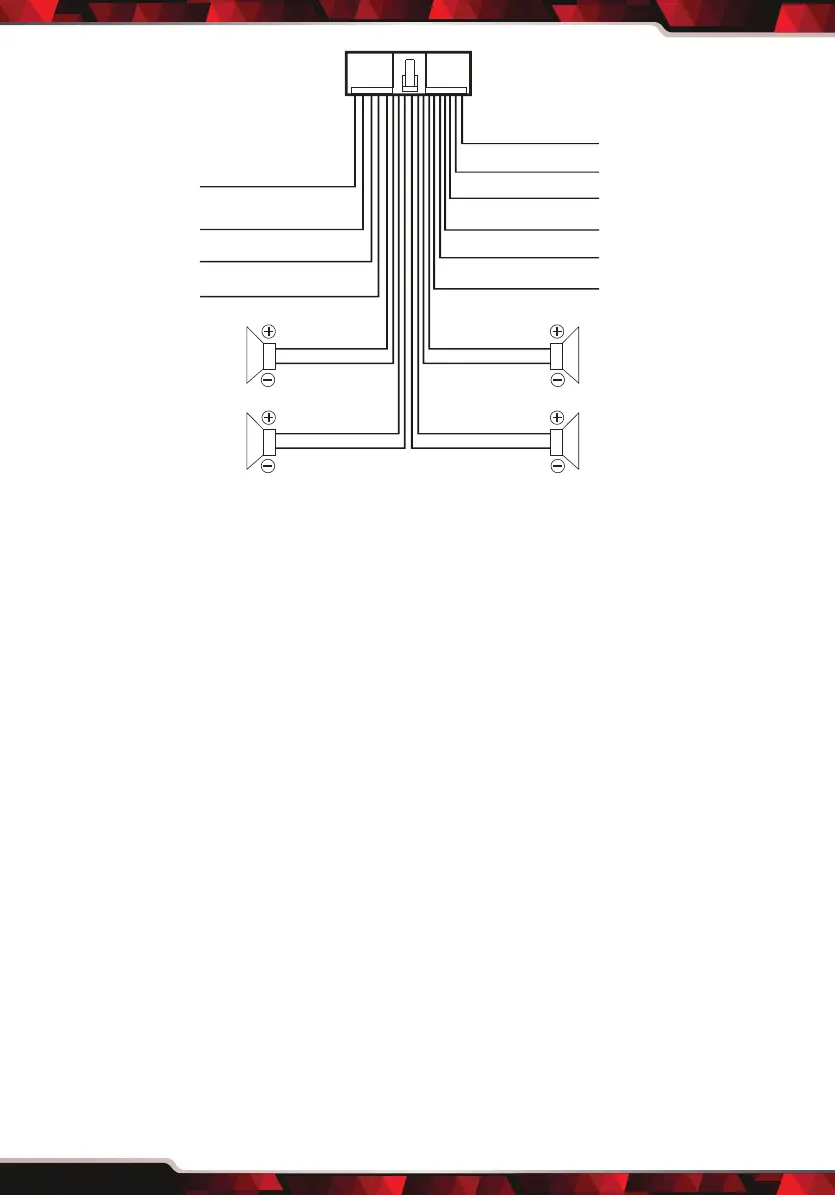

AUDIO/VIDEO I/O CONNECTIONS
RED
YELLOW
BLACK
BLUE
ACC
B+
GROUND
POWER ANTENNA
FRONT LEFT
CHANNEL SPEAKER
REAR LEFT
CHANNEL SPEAKER
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
SWC - GND
SWC - 1
SWC - 2
REVERSE (+)
PARKING BRAKE (B-)
ILLUMINATION (+)
FRONT RIGHT
CHANNEL SPEAKER
REAR RIGHT
CHANNEL SPEAKER
ORANGE
BROWN
BROWN / WHITE
BLACK
PINK
ORANGE / BLACK
GRAY
GRAY / BLACK
VIOLET
VIOLET/BLACK
CAMERA: Rear Camera Video input Socket (Yellow)
SUB2: Subwoofer Output Socket 2 (Green)
SUB1: Subwoofer Output Socket 1 (Green)
V-IN: AV IN Video input Socket (Yellow)
AV-L: AV IN Left CH Audio input Socket (White)
AV-R: AV IN Right CH Audio input Socket (Red)
V-OUT1: Video Output Socket 1 (Yellow)
RL: Rear Left CH RCA Output Socket (White)
RR: Rear Right CH RCA Output Socket (Red)
V-OUT2: Video Output Socket 2 (Yellow)
FL: Front Left CH RCA Output Socket (White)
FR: Front Right CH RCA Output Socket (Red)

Pyle PLTS78DUB Specifications

General

MP3 playback	Yes
USB direct playback	No
Audio formats supported	MP3
Video formats supported	MPEG4
Supported radio bands	AM, FM
Preset stations quantity	30
Output power	320 W
Product color	Black
Ready for iPod	-
Disc types supported	CD, CD-R, CD-RW, DVD
Audio output channels	4.0 channels
Analog signal format system	NTSC, PAL
Aspect ratio	16:9
Display type	LCD
Display diagonal	7 \
Display brightness	400 cd/m²
Display resolution	1440 x 234 pixels
AV output	1
Compatible memory cards	MMC, SD
Number of optical discs	1 discs

Weight and Dimensions

Dimensions (WxDxH)	178.1 x 166.1 x 50.29 mm
