3.4.5 Mounting and installation of the base
The base must be fixed installed on the basement with 4pcs M8×80 foundation bolts.

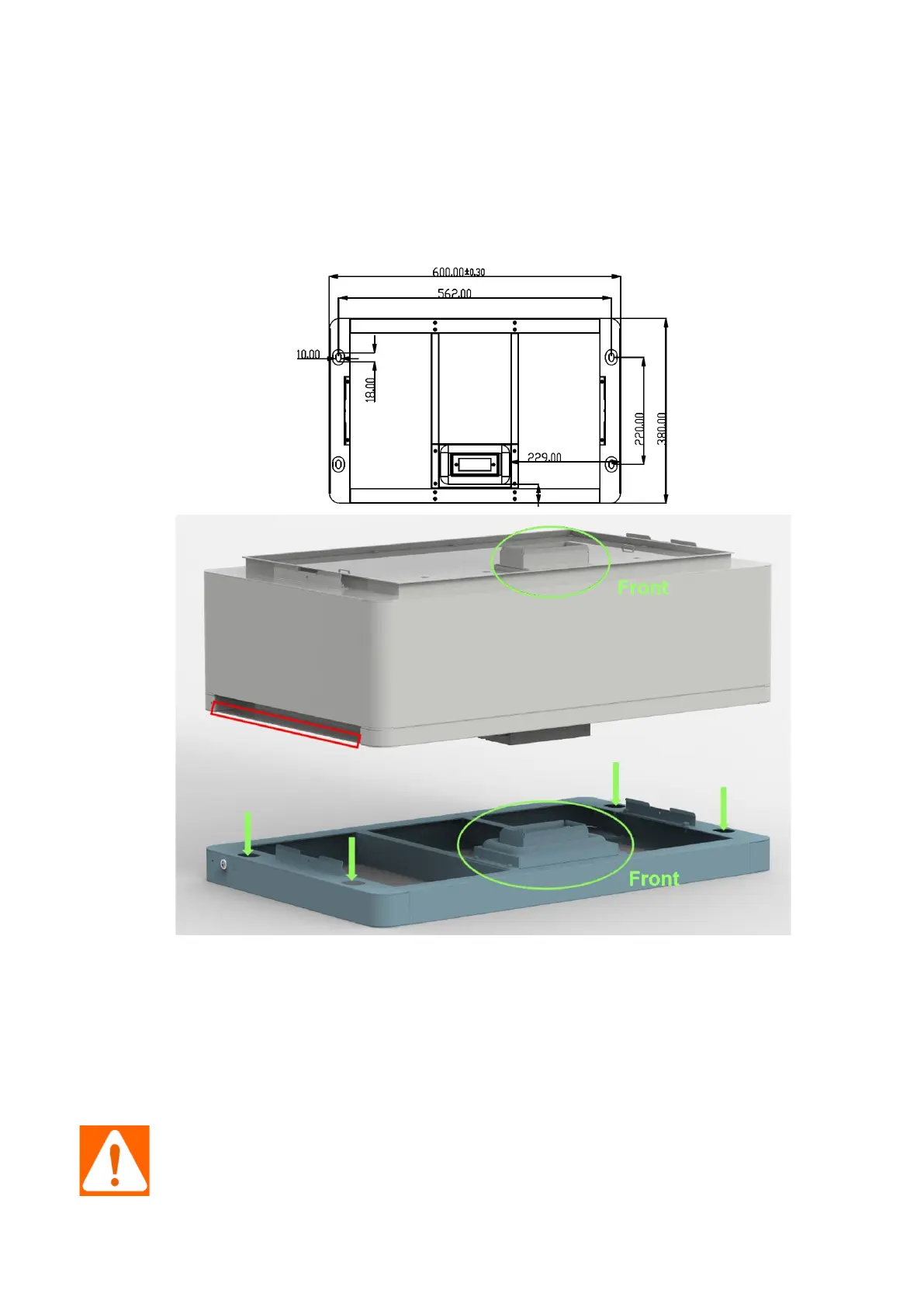

Battery rack basement holes bitmap (unit: mm):
3.4.6 Battery Modules and Control Module (BMS) pile up
Handle above the red marked edgings of the both side of these battery modules and control
module (BMS).
Caution: If hands under this red marked side, hands will get hurt.
