32

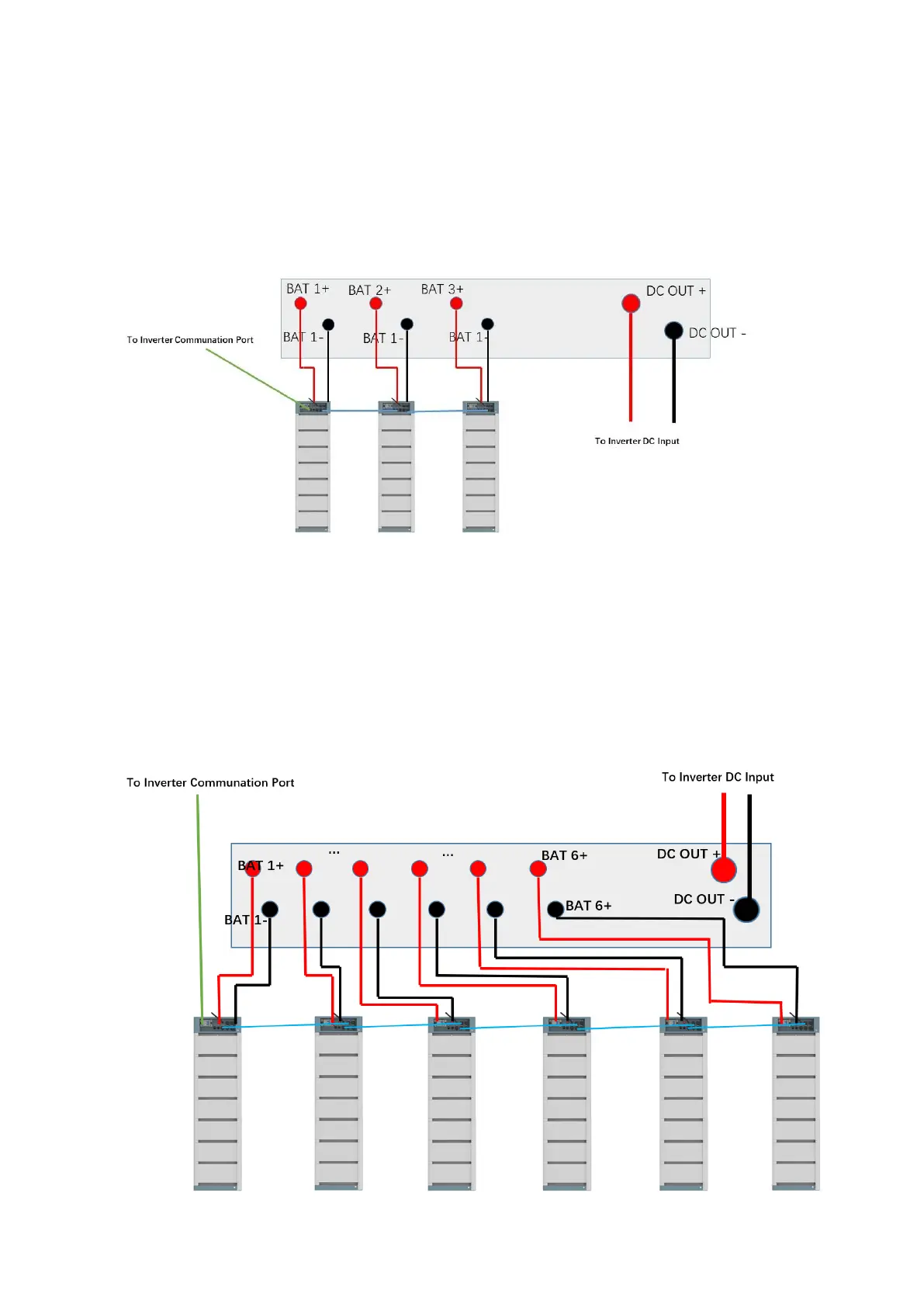

3.5.3 Multi-groups battery wiring diagram
Wiring diagram of 3 strings` system
*It`s suggested to use P-Combiner-HV-3 for upto 3 strings, max. 50Amps synchronized continuous
operation.
*It`s not allowed to use the P-Combiner-HV-6 or similar concept of multi-groups connection
method in case the multiple groups` of battery are operation independently.
Make sure to have the D+ & D- plug into the combiner box properly.
Wiring diagram of 6 strings` system
To Next Page
