Pylontech Force-H1-V2 User Manual

41
5.2 Replacement of main component
Danger: The Force-H1-V2 is a high voltage DC system, operated by qualified and authorized
person only.
Danger: Before replace the main component must shut off the maintenance battery string’s
power. Must confirm the D+ and D- terminal are without power. The turn off
progress refer to chapter 3.6.5.

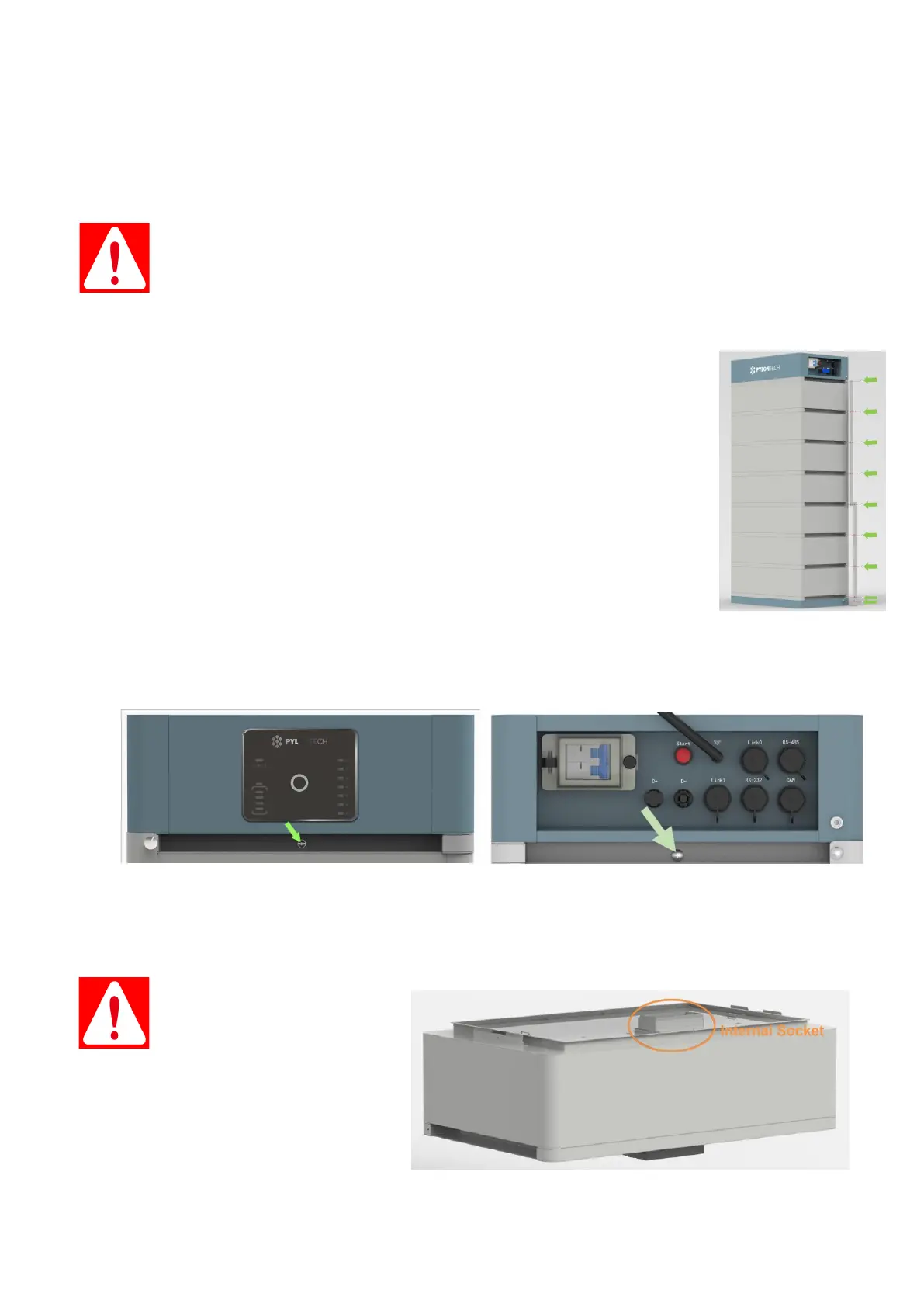

5.2.1 Replacement of Battery Module
5.2.1.1 Charge existing module to full (SOC 100%). Make sure new battery
module is 100% as well.
5.2.1.2 Turn off the whole battery string’s power. Must confirm the D+ and D-
terminal are without power. The turn off progress refer to chapter 3.5.4.
5.2.1.3 Dismantle D+ and D- Power Cable, Communication Cable and
Grounding Cable.
5.2.1.4 Dismantle the control Module’s fix screw of left and right side. And dismantle the fix
metal brackets.
5.2.1.5 Move the control module and each battery module one by one.
Danger: when battery is
connected together with the
base the internal socket still
have high voltage DC power
from serial connected battery
modules (battery module
can’t be turned off).
