Pylontech Force-H1 User Manual

11
/34
Remark: Slow flashing: 2.0s ON/1.0s OFF. Flashing 0.5s ON/0.5s OFF.
Fast flashing: 0.1s ON/0.1s OFF.

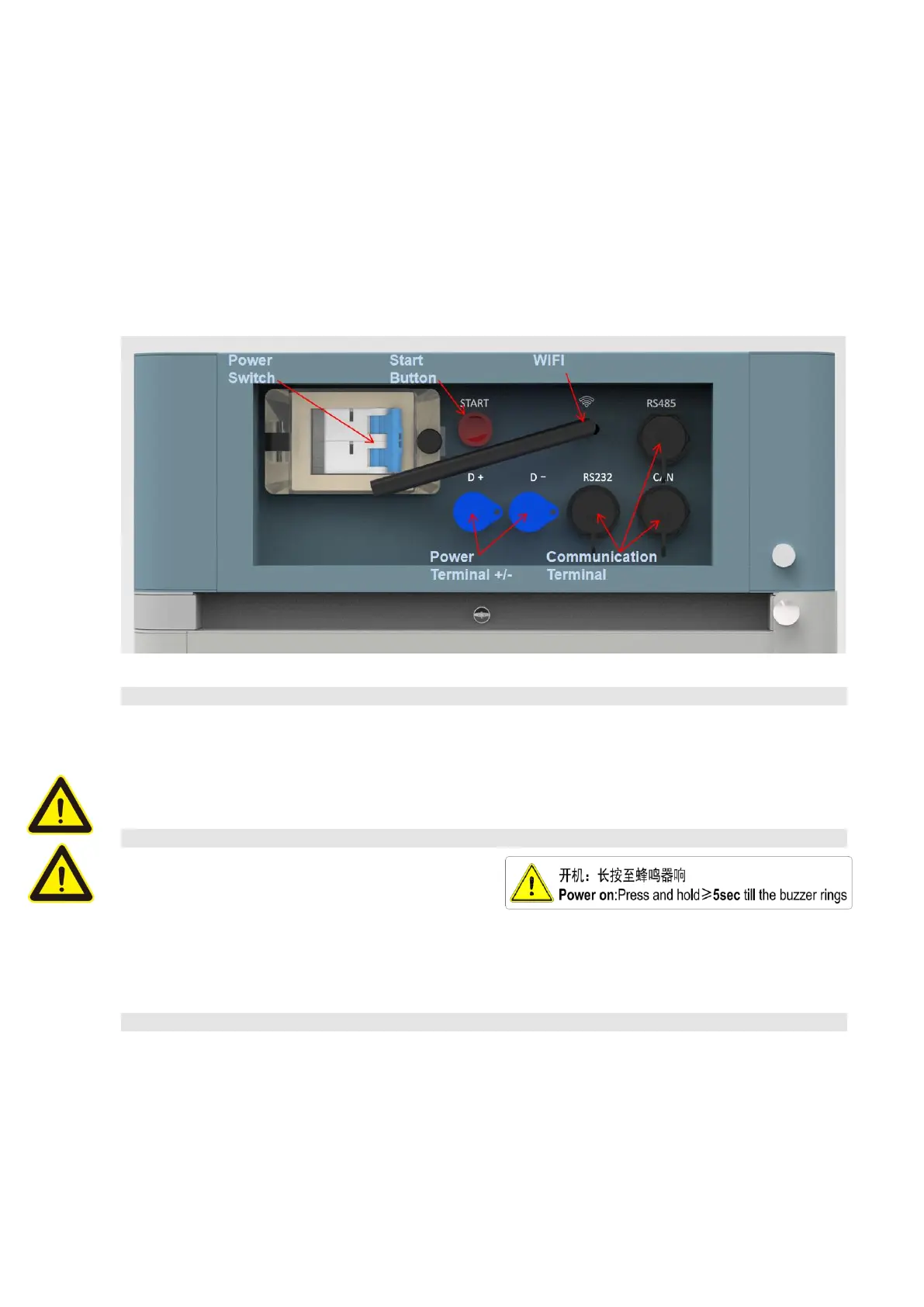

Control Module (FC0500-40S) Cable Panel
Power Switch
ON: main breaker ON, able to turn on battery system by start button.
OFF: system turn off completely, no power output.
Caution: When the breaker is tripped off because of over current or short circuit, must wait
more than 30min then can turn on it again, otherwise may cause the breaker damage.
Start
Start function: press more than 5sec until the
buzzer rings, to turn on controller.
Black start function: when system turn on, and relay is OFF, press more than 10sec, and relay will
turn on for 10 min without communication(depends on conditions).
WiFi
Manufacturer: Pylon Technologies Co., Ltd.
Address: Plant 8, No.505 Kunkai Road, JinXi Town, 215324 Kunshan City, Jiangsu Province,
PEOPLE'S REPUBLIC OF CHINA
Importer: XXXX （Located in installed country）

Pylontech Force-H1 Specifications

General

Battery Type	Lithium Iron Phosphate (LiFePO4)
Nominal Voltage	48 V
Capacity per Module	3.55 kWh
Operating Temperature	-10°C to 50°C
Communication	CAN, RS485
Warranty	10 years
Peak Discharge Current (3 seconds)	100 A
Charge Voltage	52.5 V - 54 V
Storage Temperature Range	-20°C to 60°C
IP Rating	IP20
Cycle Life	>6000 cycles
