3.4.5 Battery Modules and Control Module (BMS) pile up

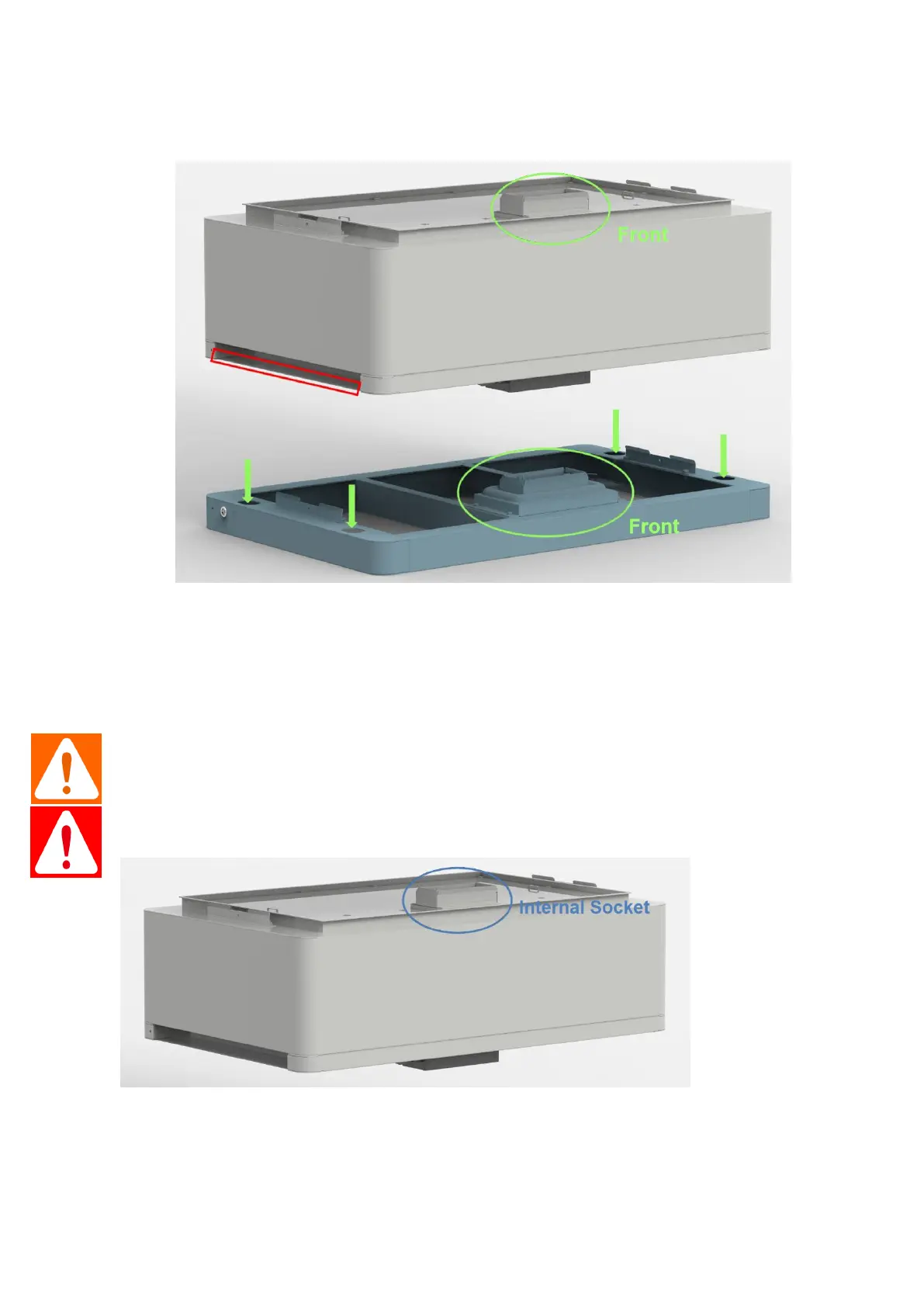

Handle above the red marked edgings of the both side of these battery modules and control
module (BMS).
The internal DC Power connection and Communication connection between the batteries and
BMS Controller are automatically connected when the battery/controller module is mount over
the other.
Caution: If hands under this red marked side, hands will get hurt.
Danger: when battery is connected together with the base the internal socket still have high
voltage DC power from serial connected battery modules (battery module can’t be turned off).
