19
/34

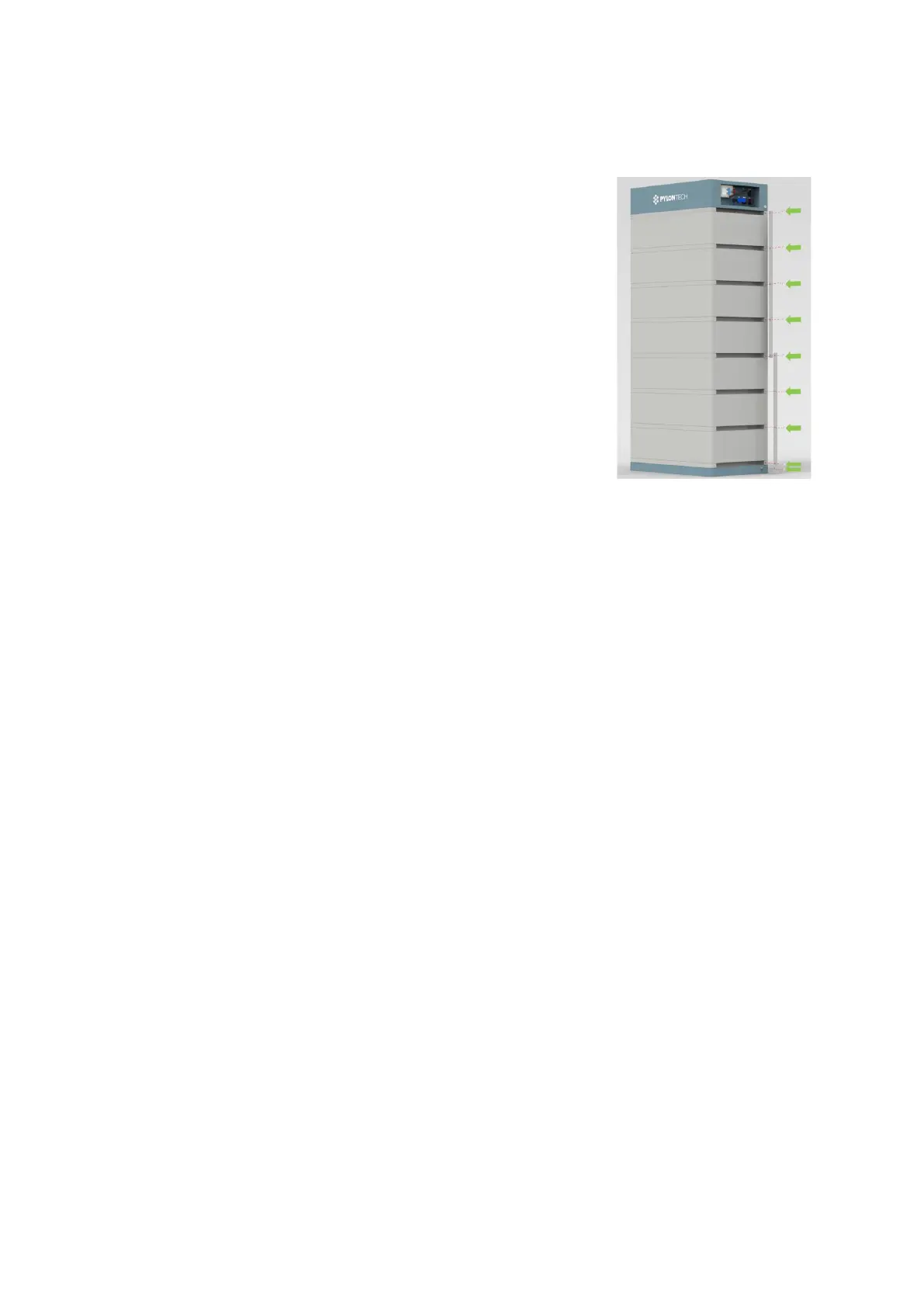

3.4.6 Installation of the metal bracket for the system
In control module’s package has 2pcs short and 2pcs long
metal brackets.
Fix these metal brackets at the both back side corners.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Pylontech Force-H1 and is the answer not in the manual?

Pylontech Force-H1 Specifications

General IconGeneral
Battery TypeLithium Iron Phosphate (LiFePO4)
Nominal Voltage48 V
Capacity per Module3.55 kWh
Operating Temperature-10°C to 50°C
CommunicationCAN, RS485
Warranty10 years
Peak Discharge Current (3 seconds)100 A
Charge Voltage52.5 V - 54 V
Storage Temperature Range-20°C to 60°C
IP RatingIP20
Cycle Life>6000 cycles
