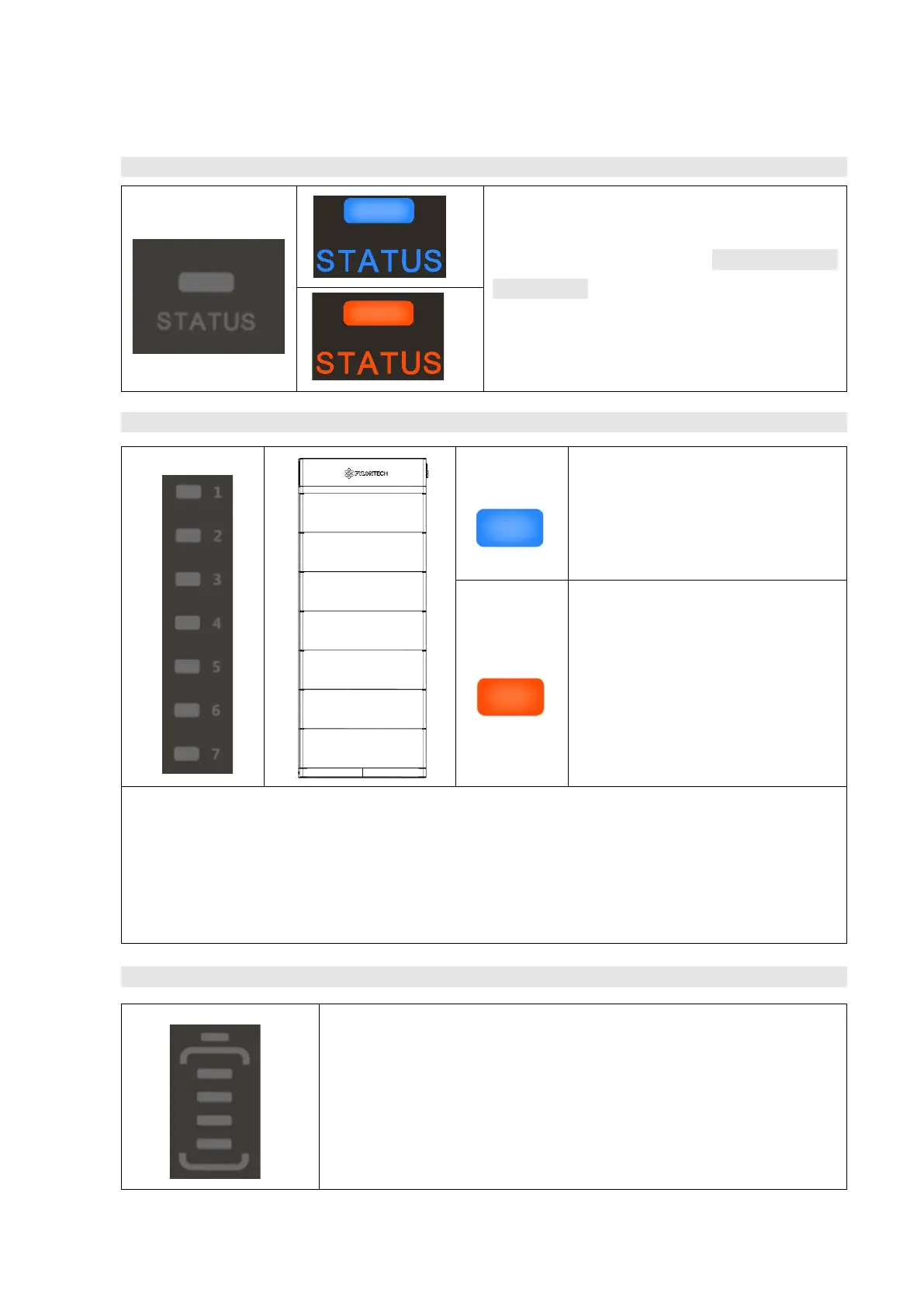

System Status LED
Refer to Instructions of the
LED Indicators
Instructions
Below.
Battery Module Status
Blue light
Normal
Orange light
Individual module alarm or protection
occurs.
See trouble shooting steps in section
5.1
Instructions:
(1) Each Status LED (1~7) represents one individual battery module from number 1 (the one right
beneath the control module) to number 7 (the one next to the base), as shown in the above
illustration.
(2) If your system has less than 7 battery modules, the Status LED without corresponding battery will
be always OFF.
System Capacity Status Light
Indicate the system SOC.
Each LED indicates 25%SOC
7
6
5
4
3
2
1
