28
3.4.5 Mounting and Installation of the Battery Rack Basement
The base must be fixed securely on the support surface with 4pcs M8×60 expansion bolts.

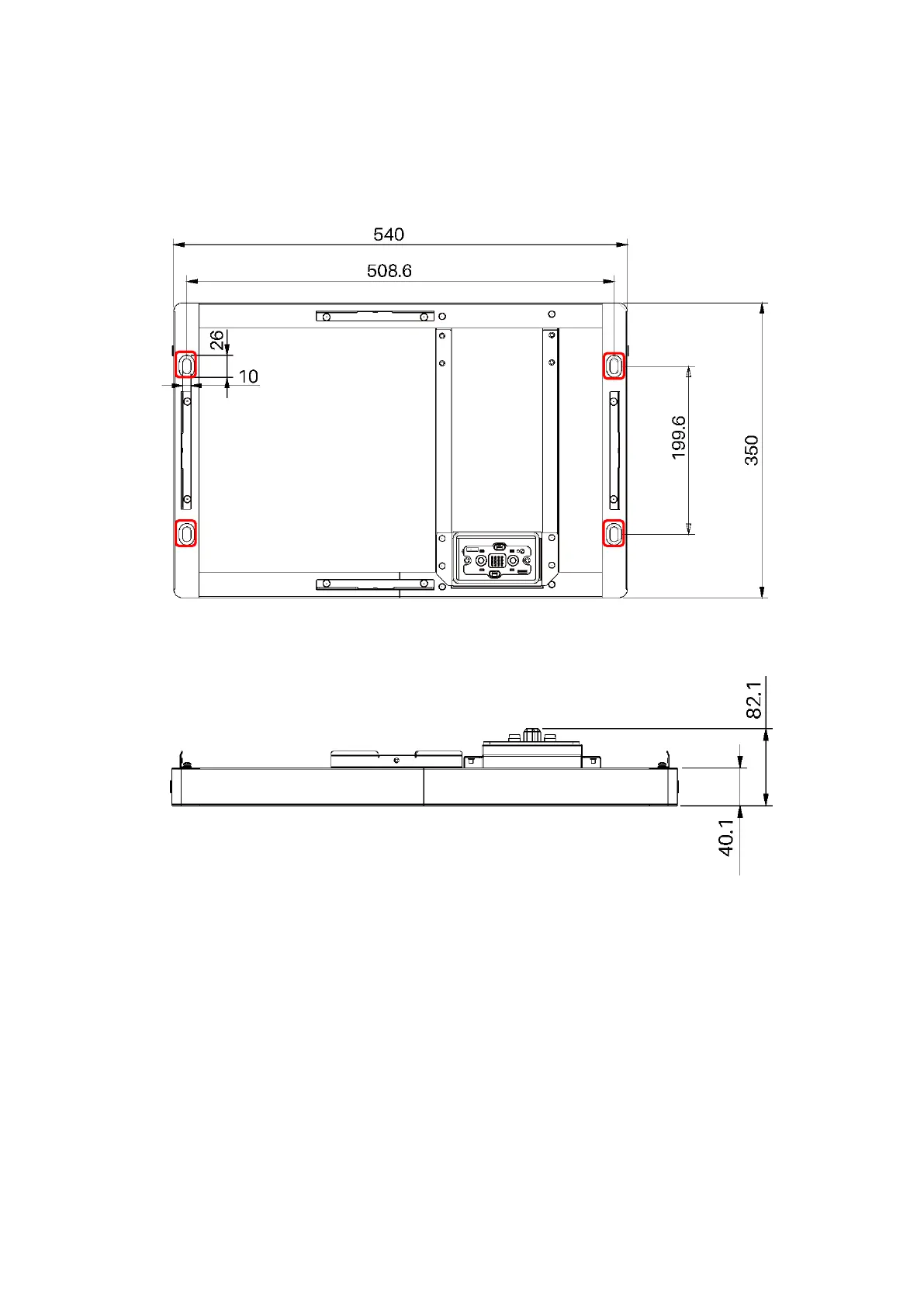

Battery rack base holes’ (circled in red) bitmap (unit: mm)
Battery rack basement bitmap (unit: mm)
