Pylontech Force-H3 User Manual

21

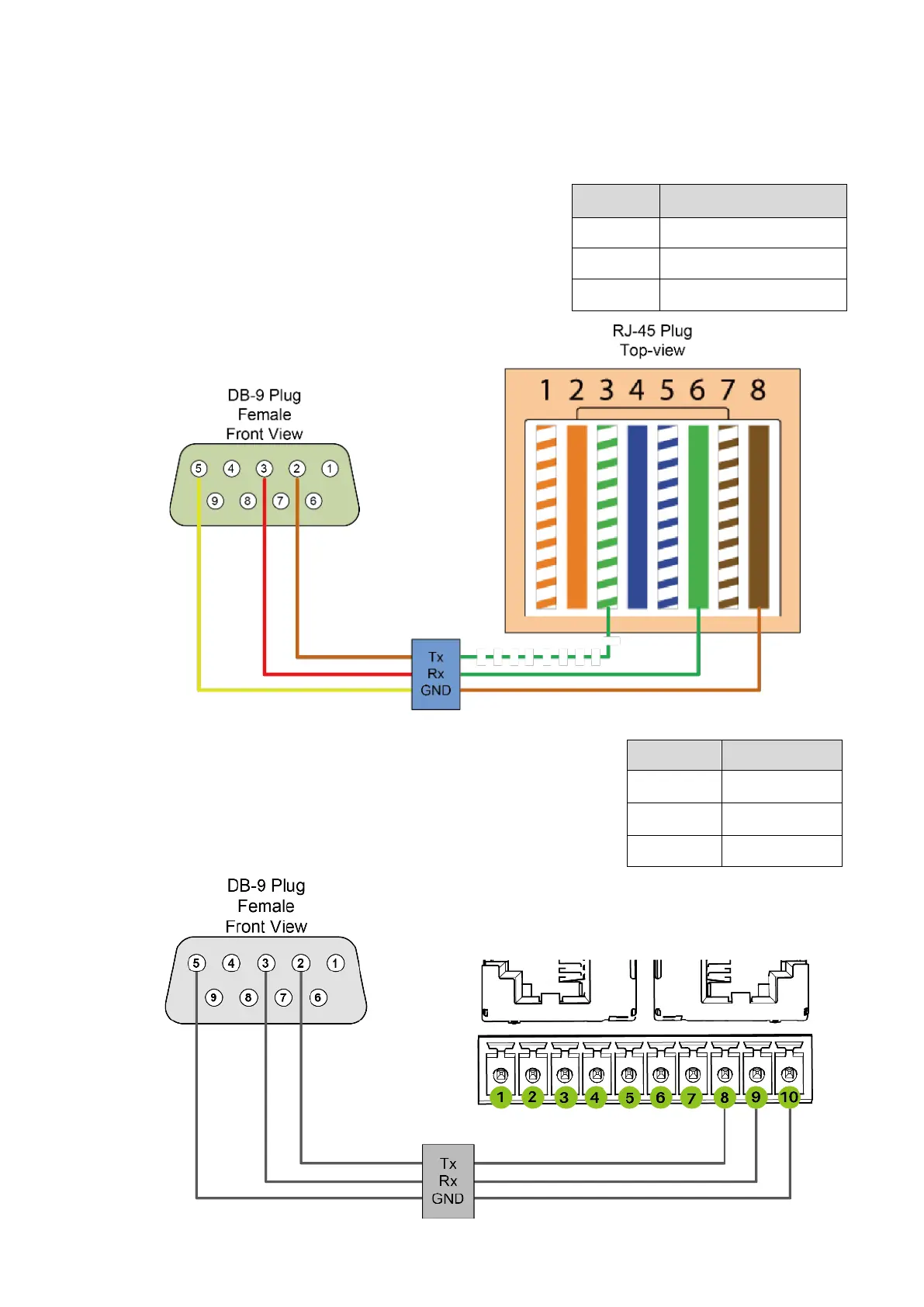

RS232 Communication Terminal: for manufacturer or professionals to debug or service.
A. If you have RS232 debug tool (DB9 – USB – RJ45)
provided by PYLONTECH before, PIN8~10 here
corresponds to PIN3, PIN6 and PIN8 of RJ45.
B. If you use a new RS232 debug tool (DB9 – USB),
the Pin 8~10 here corresponds to PIN 2,3,5 of DB9
terminal.
PIN 1-10
RJ45
PIN 8 PIN 3 (Green and white)
PIN 9
PIN 6 (Green）
PIN10 PIN 8 (Brown)
PIN 1-10
DB9
PIN 8 PIN2
PIN9 PIN3
PIN10 PIN5
