Pylontech Force-H3 User Manual

Name: Pylontech Force-H3
Brand: Pylontech
Rating: 5 (1 reviews)

60 pages

To Next Page

To Previous Page

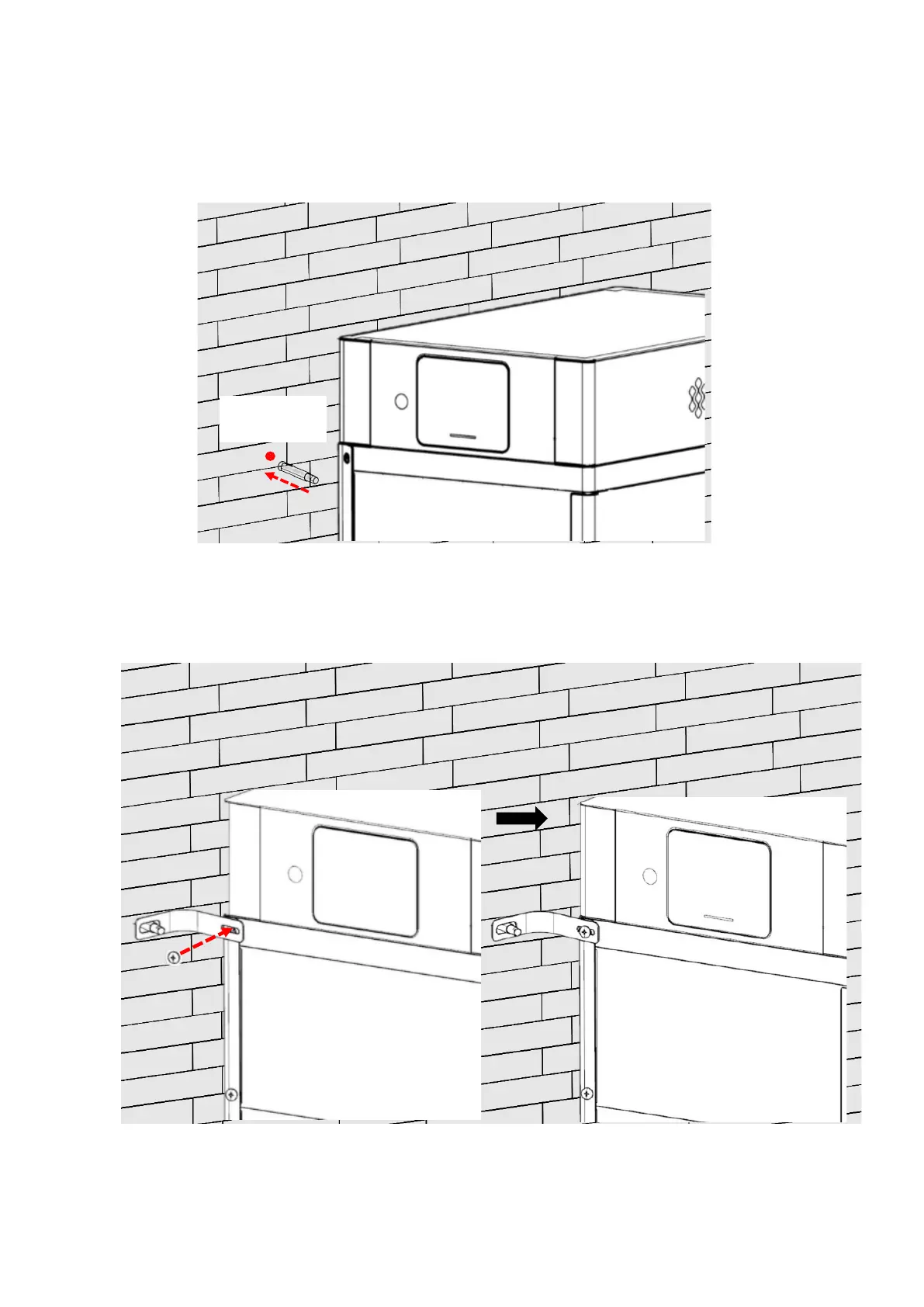

6. Embed the two M8 expansion bolts into the holes respectively.

7. Fit the brackets across the M8 expansion bolts on both sides, then fix the brackets on the BMS

with M4 screws.

M8 Expansion

bolt

Table of Contents2
Safety4
Symbols5
Abbreviations Used in this Manual7
General Safety Instructions8
Safety Instructions before Connecting the Battery9
Safety Instructions in Using the Battery9
System Introduction10
Product Introduction10
Specifications10
System Parameters11
Single String System Parameters11
Multi-Strings System Parameters (Max. 6 Strings Per System)13
Battery Module Specifications14
Battery Module Parameters14
Control Module Specifications15
Control Module Parameters15
Control Module Display Panel16
Control Module Interface Panel19
System Diagram26
Installation27
Tools27
Safety Gear27
System Working Environment Checking28
Cleaning28
Temperature28
Fire-Extinguisher System28
Grounding System28
Clearance28
Handling and Placement29
Handling and Placement of the Battery Module29
Handling and Placement of the Base29
Requirements of Installation Site29
Packing List30
Mounting and Installation of the Battery Rack Basement31
Installation of the Battery Module Onto the Base32
Battery Modules and Control Module (BMS) Pile up33
Installation of the Metal Brackets for the System34
Installation of the Anti-Toppling Brackets for the System34
Cables Connection41
Grounding41
Cables42
Multi-Strings' Battery Wiring Diagram43
Electrical Wiring43
Communication Cables Connection of Master and Slave Battery Strings45
Operation46
System Power on46
Single String System Power on46
Multi-Strings System Power on48
System Power off49
System Debug50
Maintenance51
Trouble Shooting51
Replacement of Main Components53
Replacement of Battery Module53
Replacement of Control Module (BMS)54
Battery Maintenance55
Remarks56
Storage56
Capacity Expansion56
Shipment57
Annex 1: Installation and System Power on Process List58
Annex 2: System Power off Process List59
