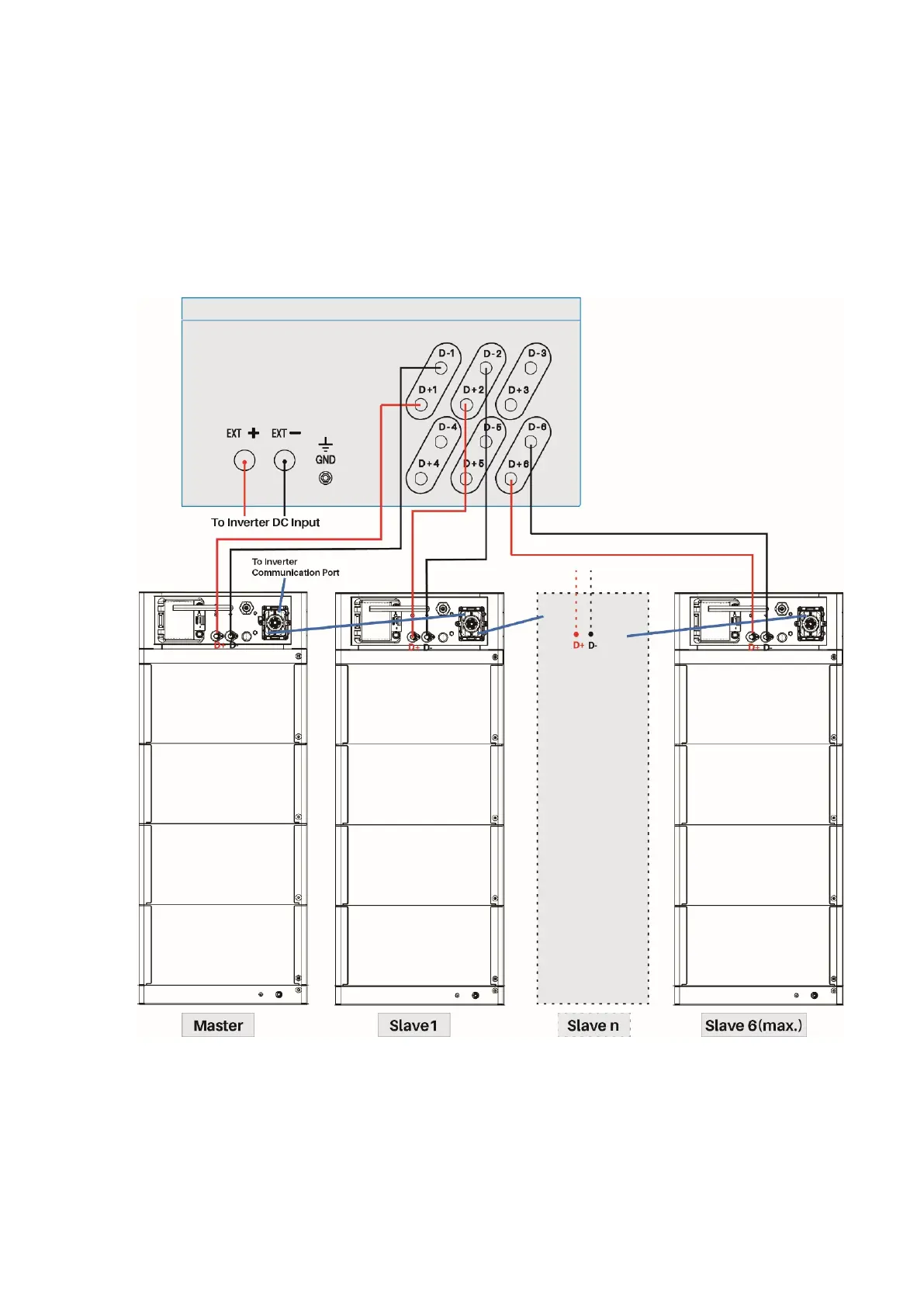

B. Wiring diagram of multi strings’ system (3<String qty.≤6)
It`s suggested to use P-Combiner-HV-6-V2 for up to 6 strings, max.100Amps continuous
operation.
IMPORTANT
: DO NOT use P-Combiner-HV-6-V2 or similar concept of multi-strings
connection method in case the multiple battery strings need to be operated independently.
NOTE
: Make sure to have the D+ & D- plugs into the combiner box properly.
