Maximum Transmitting power: 18dBm
Wireless maximum output power: 20dBm
Operating frequency: 2412-2472MHz
Gain of antenna: Max 3dBi
Modulation system：
DBPSK/DQPSK/CCK(DSSS)
BPSK/QPSK/16QAM/64QAM(OFDM)
Modulating Repetition：
1Mbps/2Mbps/5.5Mbps/11Mbps(DSSS)
6Mbps/9 Mbps/12 Mbps/18 Mbps/24 Mbps/36 Mbps/48 Mbps/54 Mbps(OFDM)
MCS0~MCS7(802.1 1n 20MHz)
Channel spacing:5MHZ
Type of antenna: 2.4G IPEX-SMA Antenna
Power Terminal (+/-)
Connect power cables of battery system with Inverter.
Communication Terminal (RS485 / CAN / RS232 / Link Port 0 / Link Port 1)
RS485 Communication Terminal: (RJ45 port) follow RS485 protocol, for communication between
battery system and inverter.
CAN Communication Terminal: (RJ45 port) follow CAN protocol, for communication between
battery system and inverter.
Link port0/1 for communication between battery piles.
RS232 Communication Terminal: (RJ45 port) for manufacturer or professional engineer to debug
or service.

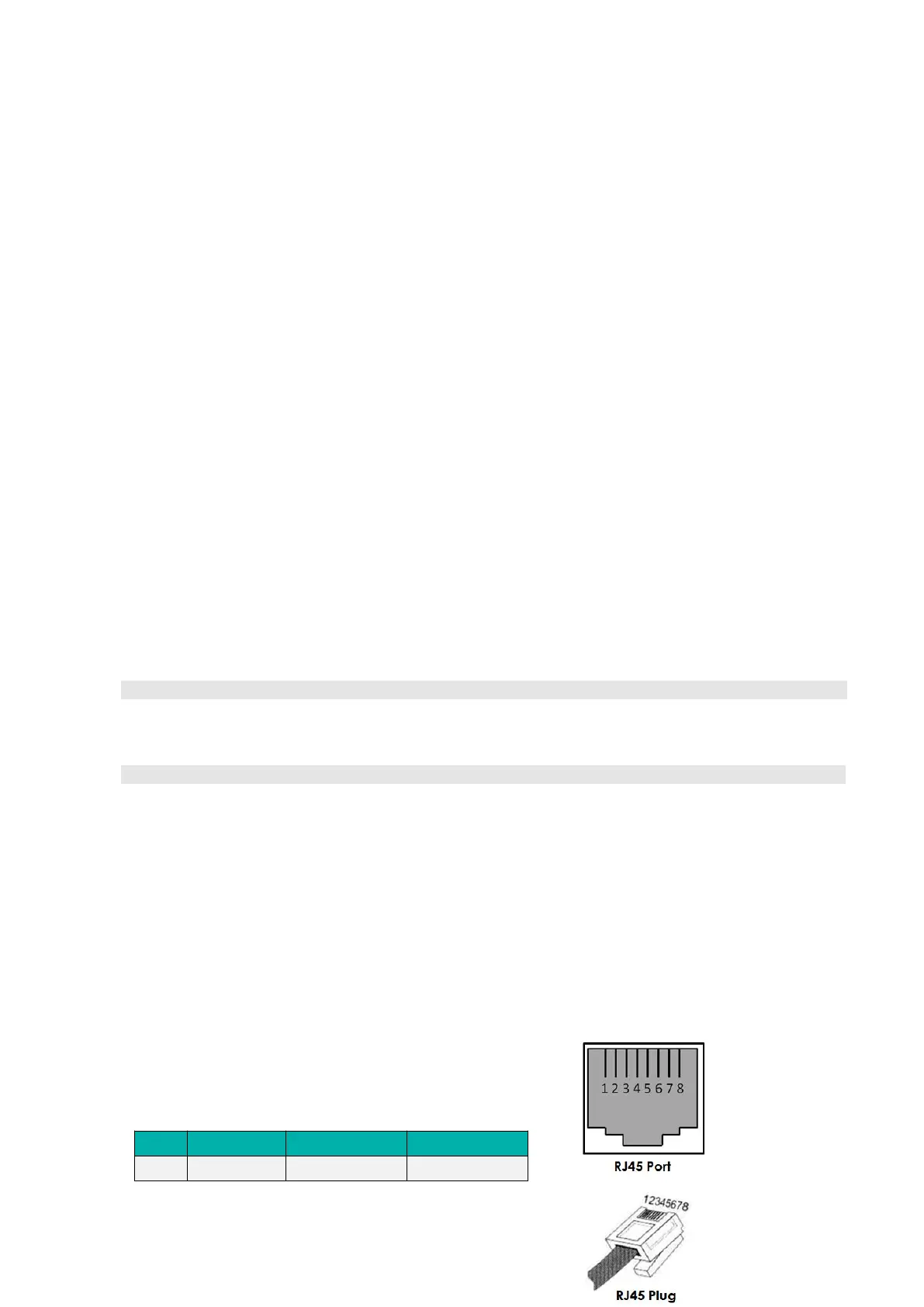

Definition of RJ45 Port Pin
CAN
RS485
RS232
1
---
---
---
