Pylontech Force-L2 User Manual

22 / 31

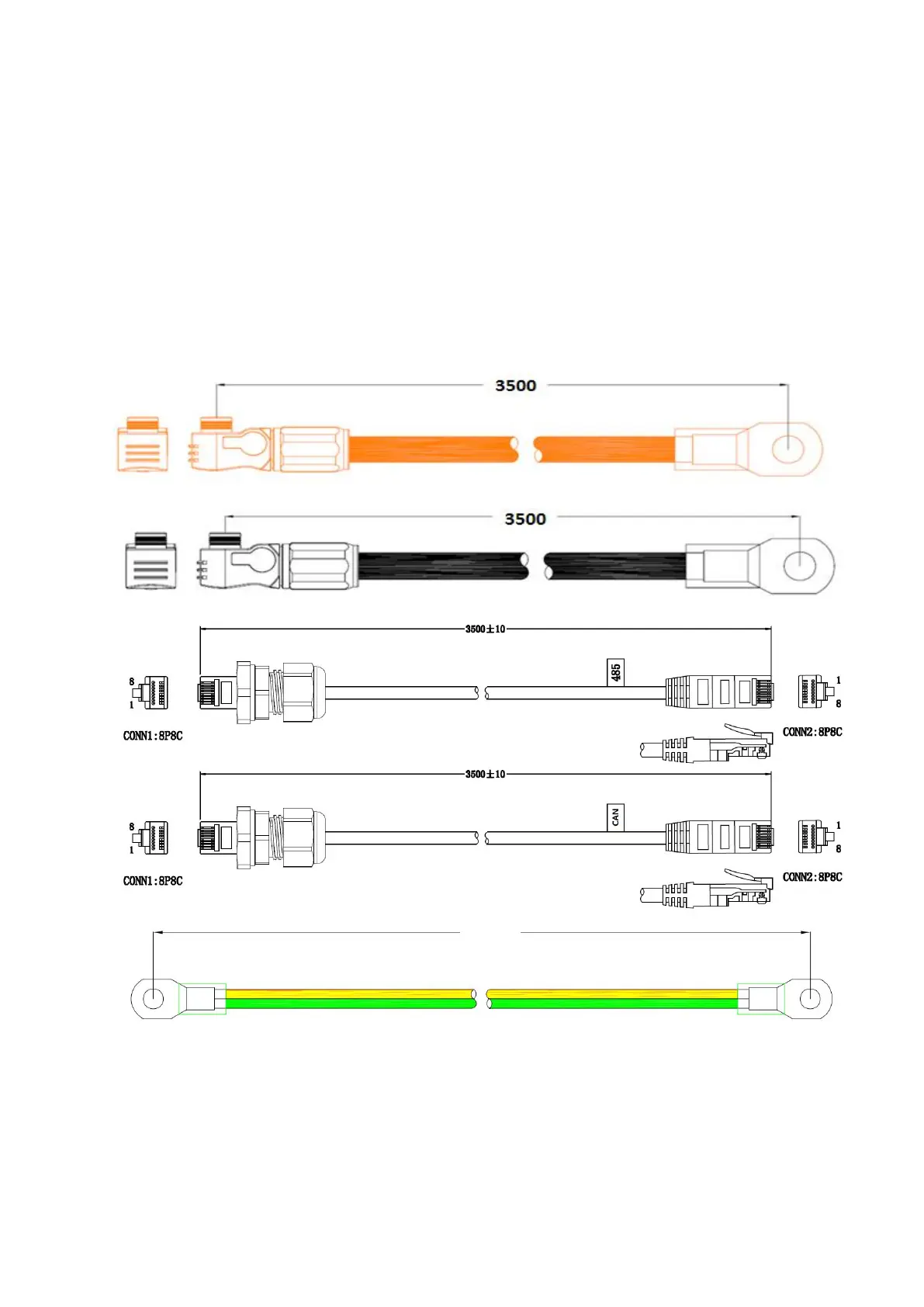

3.5.2 Cables
Note: Power cable uses water-proofed connectors.
Note: Communication cable uses RJ45 connector and water-proofed cover matched with
controller connection port.
For inverter follow same pin definition, the communication cable can be used directly.
For inverter with different pin definition or not using RJ45 port, when change the connecter,
please check the pin order and make sure undefined pin is not connected with each other and
not connected to the inverter.
1000

Pylontech Force-L2 Specifications

General

Battery Type	Lithium Iron Phosphate (LiFePO4)
Nominal Voltage	51.2 V
Capacity per Module	3.55 kWh
Usable Energy	3.2 kWh
Operating Temperature	-10°C to 50°C
Communication Interface	CAN, RS485
Warranty	10 years
Peak Discharge Current (3 sec)	100 A
Protection Degree	IP20
Cycle Life	6000 cycles at 80% DoD
