Pylontech Force-L2 User Manual

5 / 31
2. System Introduce
2.1 Product Introduce

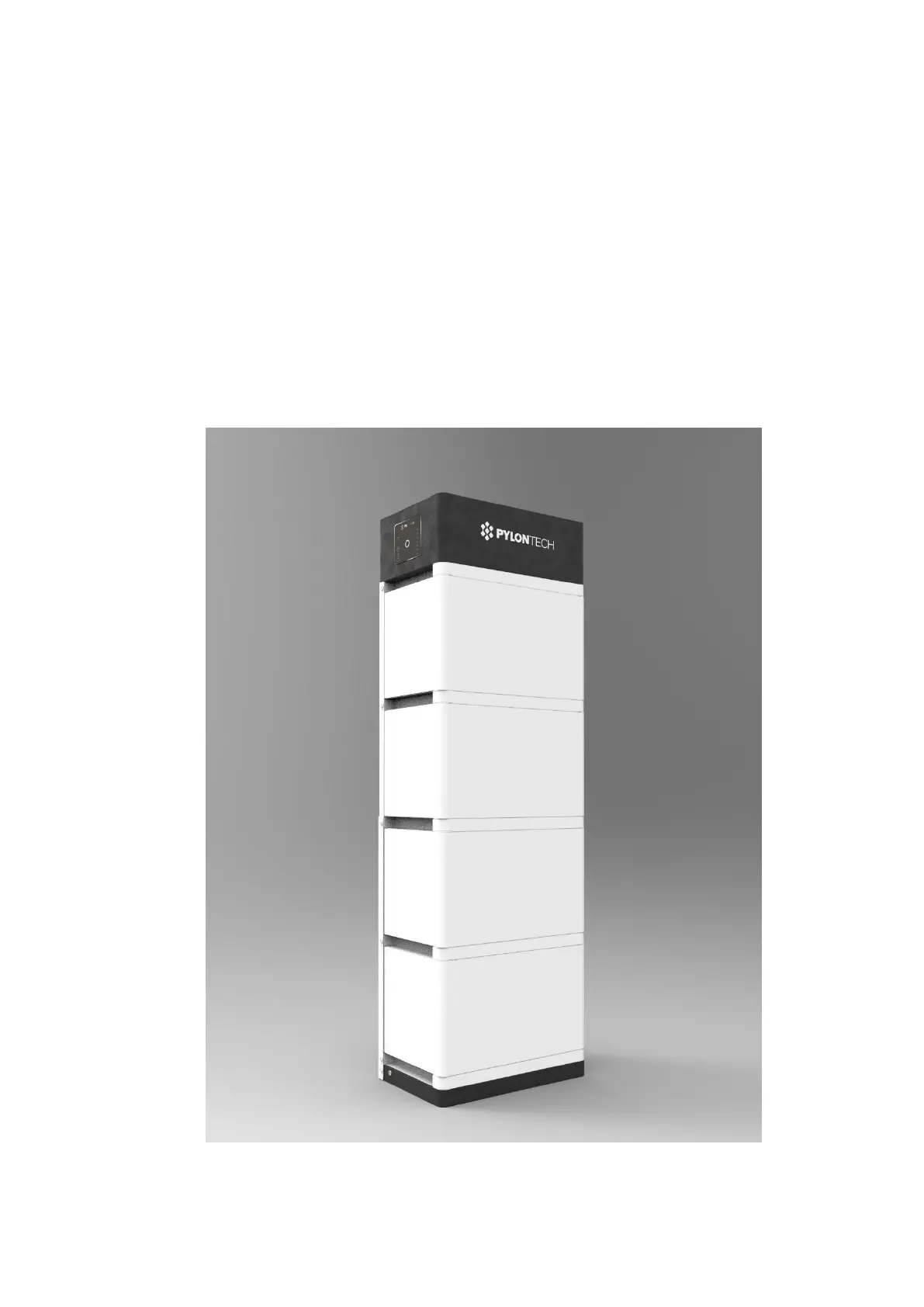

Force-L2 is a 48VDC battery storage system based on lithium iron phosphate battery, which is one
of the new energy storage products developed and produced by Pylontech. It can be used to
support reliable power for various types of equipment and systems. Force-L2 is especially suitable
for those application scenes which required high power energy, limited installation space,
restricted load-bearing and long cycle life.
2.2 Specifications
2.2.1 System parameter

Pylontech Force-L2 Specifications

General

Battery Type	Lithium Iron Phosphate (LiFePO4)
Nominal Voltage	51.2 V
Capacity per Module	3.55 kWh
Usable Energy	3.2 kWh
Operating Temperature	-10°C to 50°C
Communication Interface	CAN, RS485
Warranty	10 years
Peak Discharge Current (3 sec)	100 A
Protection Degree	IP20
Cycle Life	6000 cycles at 80% DoD
