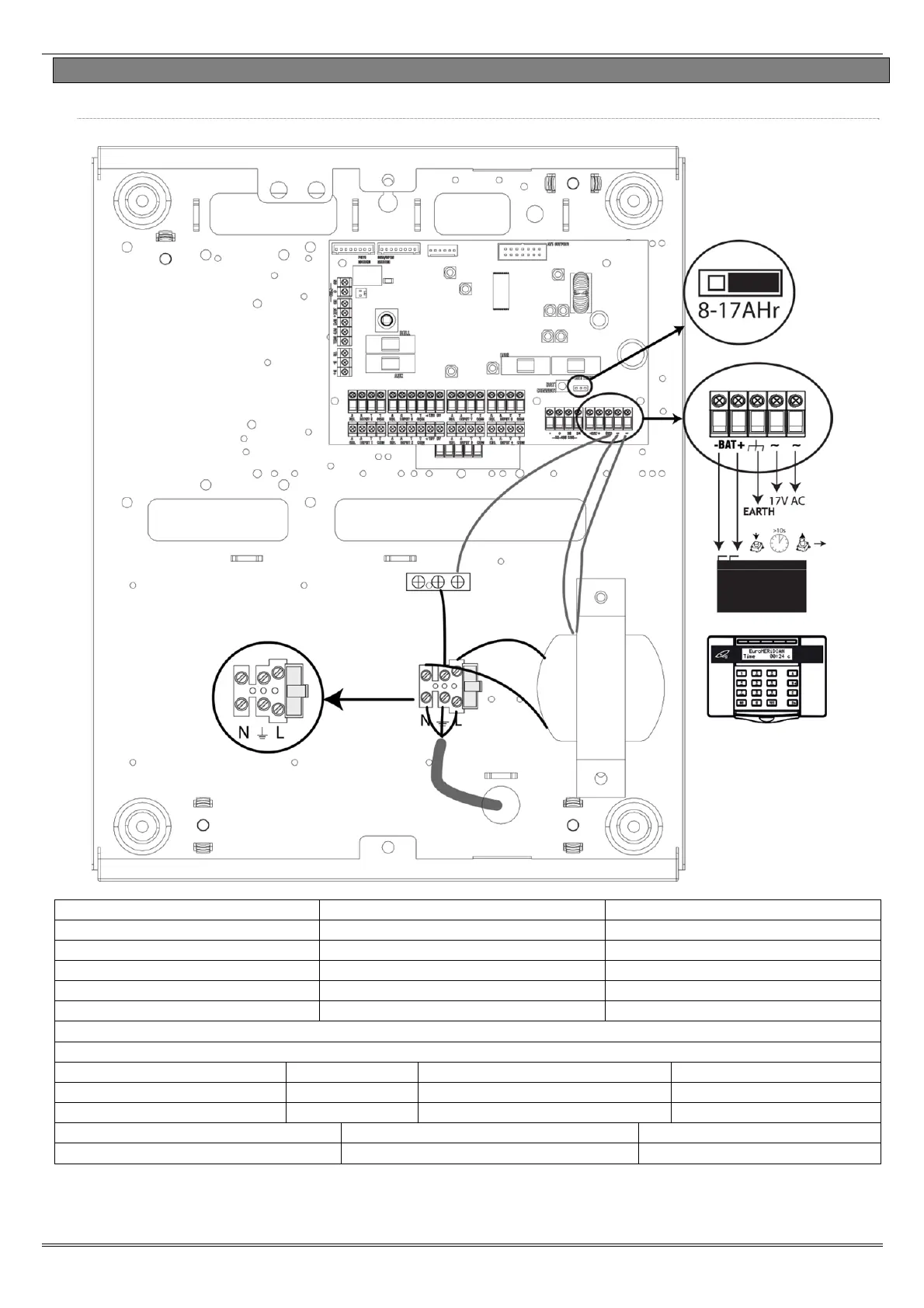

3.4 Power and Battery Connections
3.4.1 The EURO 46 Large (Grade 3)
Panel Power Supply Input Nominal Range
Mains Supply Voltage AC 230V AC at 50Hz -15% +10%
Transformer Rating EURO 46L 45VA 18.5V at 2.5A
Panel Power Supply Output Nominal Range
Output Voltage 13.7V DC 10-15V DC
Output Current EURO 46L 1.5A Continuous 2.0A peak, during battery charging
Power Supply Type A.
Battery Charging Specification
Float Voltage 13.8v DC Control Panel Type
Battery low voltage cut off 10.5v Standby battery capacity current 300mA (3A to 7A)
Recharge time <24 Hours Standby battery capacity current 700mA (8A to 17A)
Fuses Value Type
230V Mains Fuse for mains terminals T500mA H anti-surge slow blow 250V Ceramic
NOTE: The battery connect button is only used if no mains is present and a battery power up is required.
