EURO 46 Installation Manual
Page: 14

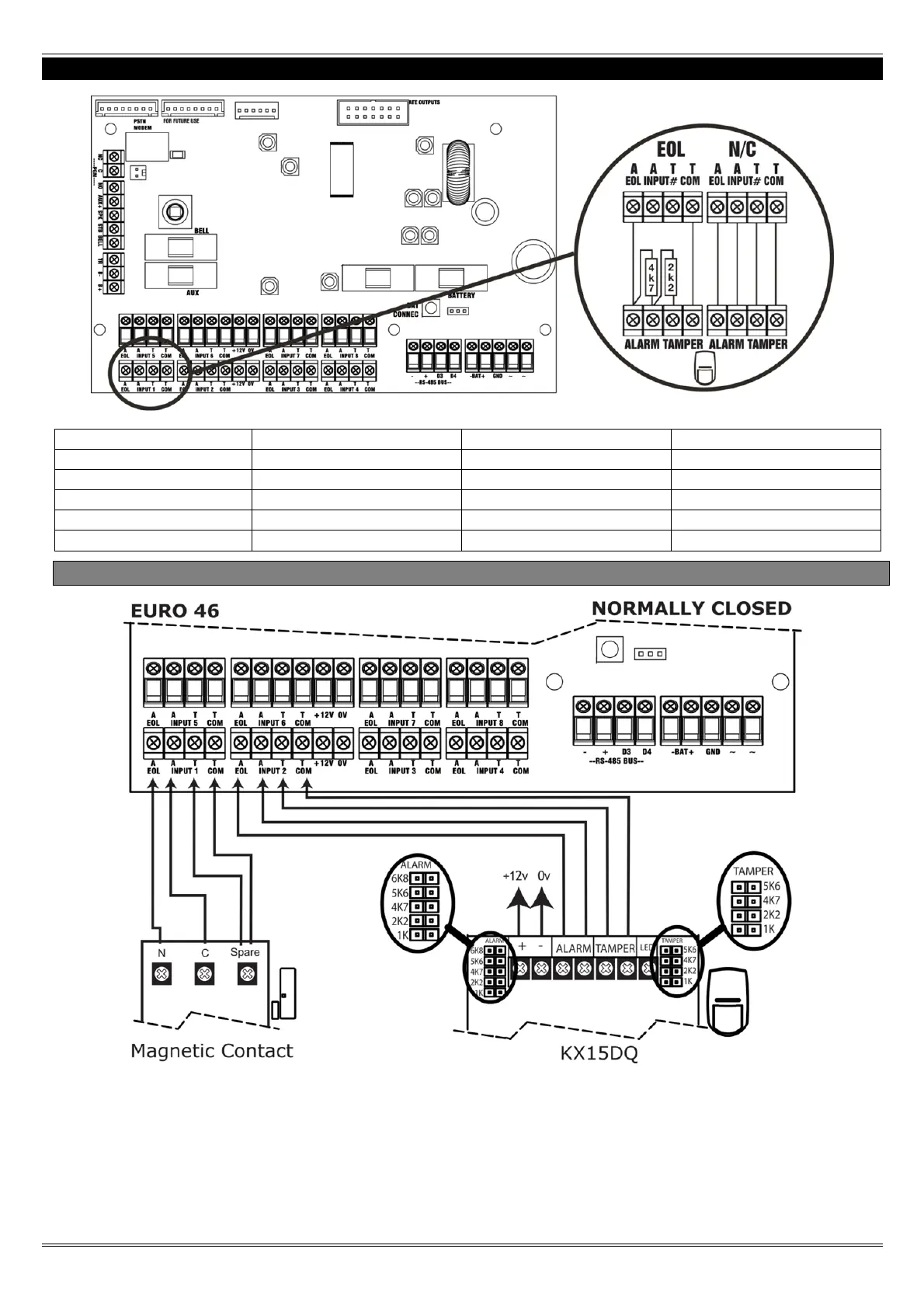

4. Input Connections
Input Resistance 1k / 1k DEOL Range 4k7 / 2k2 DEOL Range 4k7 / 4k7 DEOL Range
Normal 0k5 to 1k4 1k4 to 2k9 3k7 to 8k3
Burglary Alarm 1k5 to 5k9 4k2 to 7k8 8k4 to 10k2
Fault 6k to 8k1 8k to 11k3 10k3 to 14k9
Masking (6k8) 8k2 to 17k 11k6 to 22k 15k to 22k
Tamper <0k5 or >17k <1k4 or >22k <3k7 or >23k
4.1 Normally Closed Input Wiring
The above wiring example shows the normally closed connections for a KX15DQ PIR detector.
