Enforcer: Installation Manual
Page: 13
Wireless ZEM input Addressing:
Wireless ZEM Address
Inputs
ZEM32-WE
ZEM Address 0 35-42
ZEM Address 1 43-50
ZEM Address 2 51-58
ZEM Address 3 59-66
Wireless ZEM Header Addressing:
Wireless ZEM Address 0-3 4-7 8-11
ZEM32-WE ZEM Address 0 OFF ON OFF
ZEM Address 1 OFF ON OFF
ZEM Address 2 OFF ON OFF
ZEM Address 3 OFF ON OFF

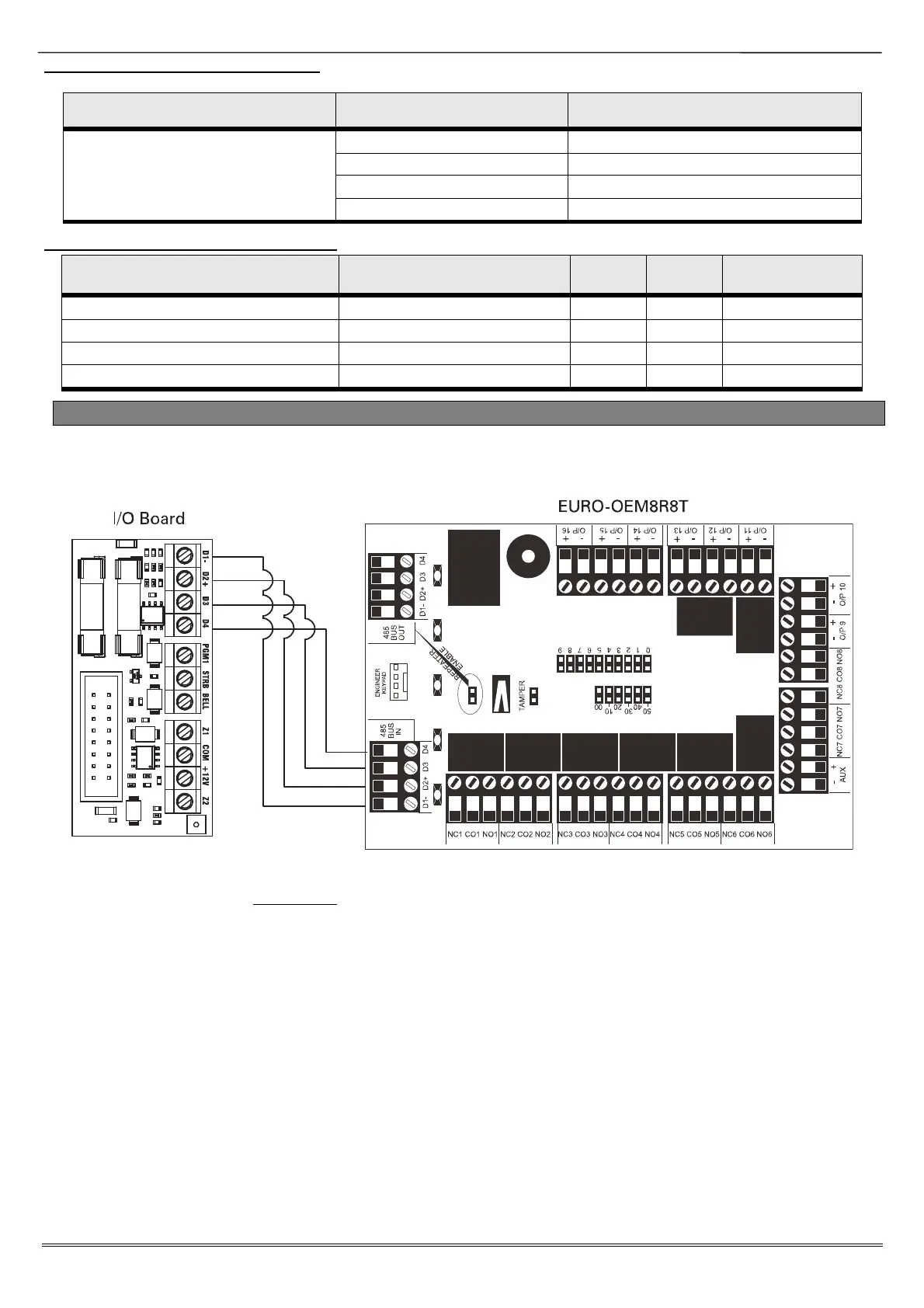

3.11 Connecting an Output Expander
1 x Remote Output Expander can be connected to the Enforcer. Each output expander allows 16
additional outputs.
NOTE: The above shows the I/O board connected to a EURO-OEM8R8T. If using a EURO-
OEM16R+PSU, the D2+ MUST NOT be connected.
