Enforcer: Installation Manual
Page: 12

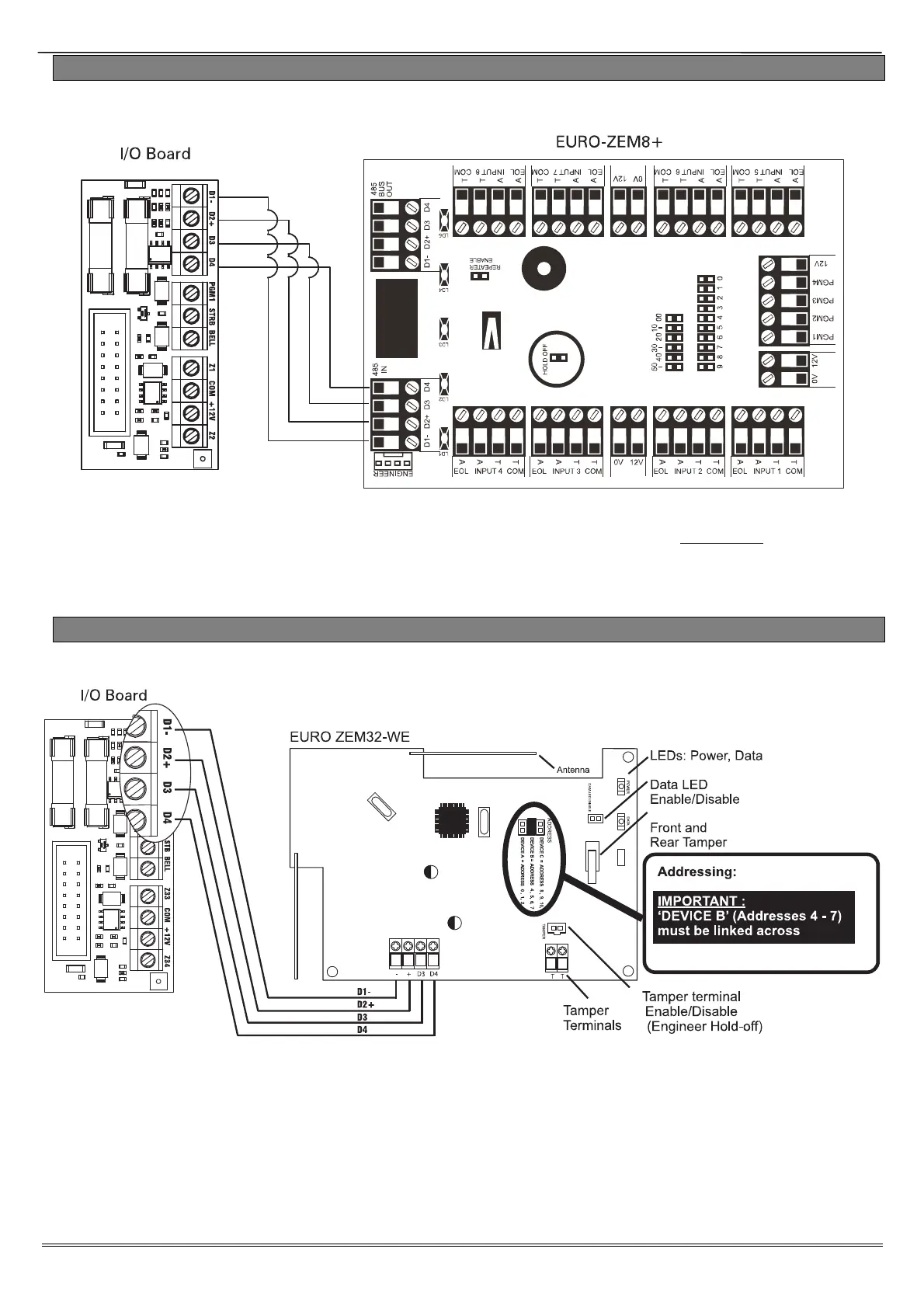

3.9 Connecting a Wired Input Expander
Up to 4 x Remote Input Expanders can be connected to the Enforcer.
NOTE: The above shows the I/O board connected to a EURO-ZEM8+, the connections for a EURO-
ZEM8 are done in the same way. NOTE: If using a EURO-ZEM8+PSU, the D2+ MUST NOT be
connected.
ZEM Address 0 (Inputs 35-42), ZEM Address 1 (Inputs 43-50),
ZEM Address 2 (Inputs 51-58), ZEM Address 3 (Inputs 59-66).
3.10 Connecting a Wireless Input Expander
1 x Wireless Input Expander can be connected to the Enforcer.
The HomeControl+ panel now supports the addition of 1 wireless ZEM to expand the number of wireless
inputs available. The wireless ZEM allows 32 wireless inputs to be learnt. These 32 inputs are
programmed as 4 different ZEMs (addresses), and each having 8 Wireless Inputs assigned. Here is an
example:
Wired ZEMs and Wireless ZEMs can be installed together on a system and as long as they are addressed
uniquely, they will work alongside each other. For example, if you wish to use 24 wireless inputs and 8
wired inputs, you can address the Wireless ZEM as ZEM 0, 1 and 2 in the programming function ‘Install
ZEM’ and learn 24 inputs to the system using the ‘Wireless Device Control’ menu (see the Programming
Manual for further information). Then address a wired ZEM as ZEM 3.
To Next Page
