Pyronix Enforcer Installation Manual

Enforcer: Installation Manual
Page: 11

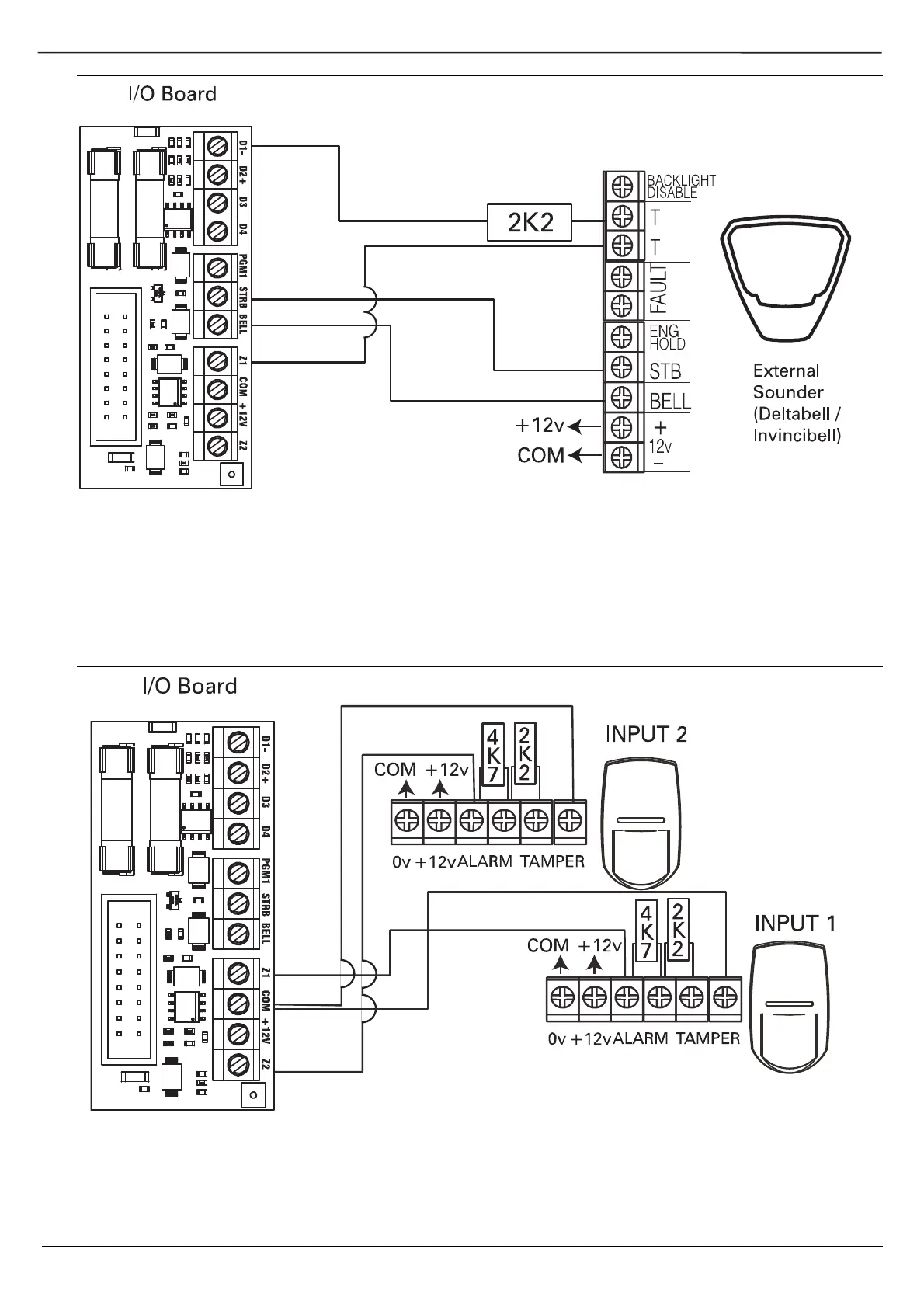

Wiring a Wired External Sounder
To create the bell tamper circuit, a resistor is required across 0V supply and tamper circuit of the
bell box. Note that the input must be programmed as ‘tamper’.
The resistor value will correspond to the value selected in ‘WIRING CHOICE’.
IMPORTANT: THE BELL BOX CONNECTED WILL NEED TO BE IN SCB MODE. Unless the bell box
is a Pyronix Deltabell.
Wiring Wired Inputs
The End of Line value for all wired inputs is programmed in ‘CHOOSE MODE’. At default they are
set to DEOL and the resistor values are 4K7 for Alarm and 2k2 for tamper.

Pyronix Enforcer Specifications

General

Battery Backup	Yes
Mobile App	Yes (PyronixCloud)
Two-Way Wireless Technology	Yes
Power Supply	Mains powered with battery backup
Remote Control	Yes (via keyfob)
Event Log	Yes
Compatibility	Works with Pyronix detectors and accessories
Encryption	AES 128-bit encryption
