Enforcer: Installation Manual
Page: 10

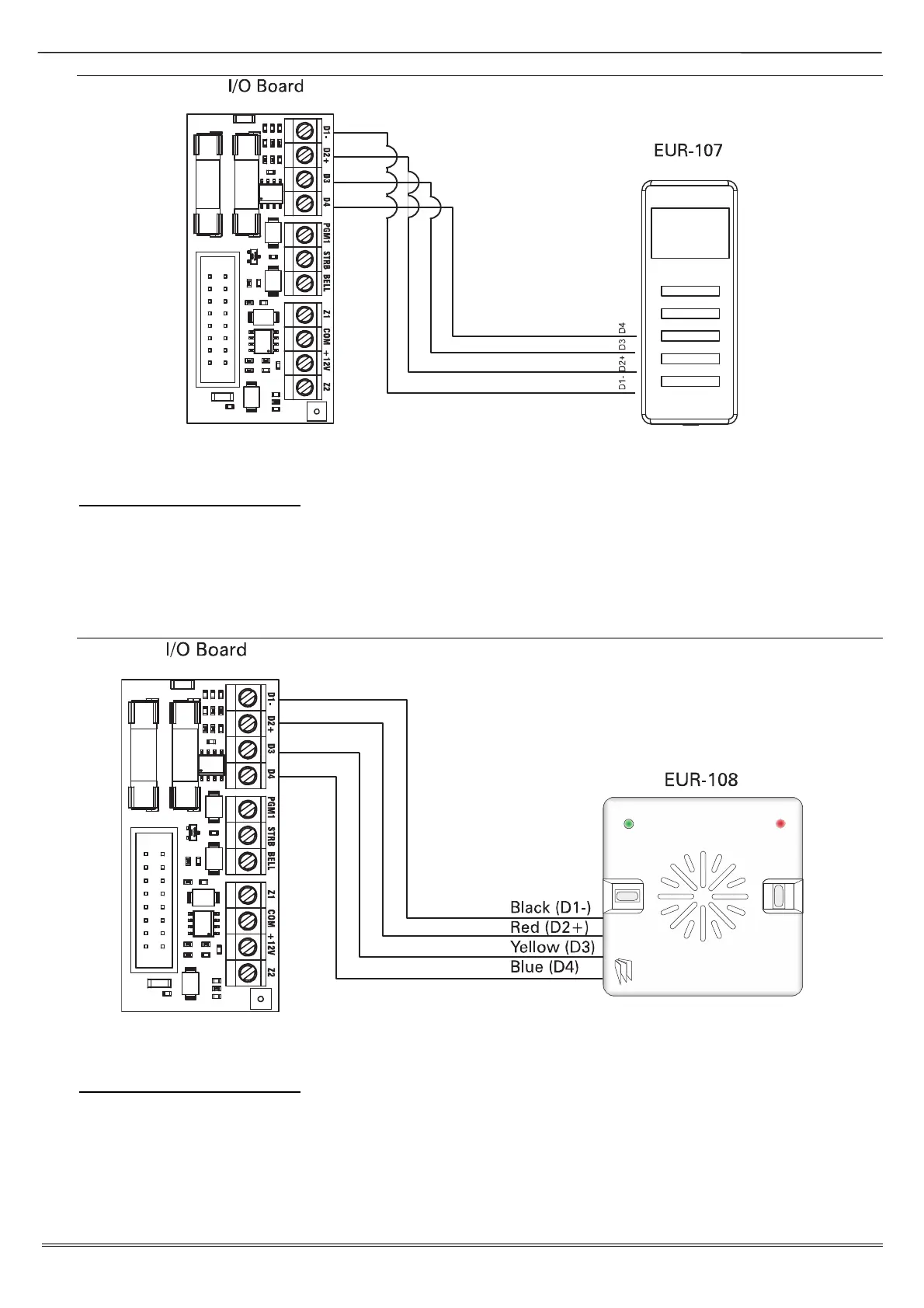

Connecting Internal Tag Readers (EUR-107)
Up to 3 readers can be connected to the Enforcer. Each keypad or reader need to be addressed
as described below. These will also need assigning in the Engineer function '‘Assign Keypads /
Readers’.
Addressing at the Reader
Address 1 = SWITCH 1 ON.
Address 2 = SWITCH 2 ON.
Address 3 = SWITCH 1: ON, SWITCH 2: ON.
NOTE: If using the EUR-107 as access control/entry control please refer to the peripheral
instructions for connection details
Connecting External Tag Readers (EUR-108)
If an additional external reader is connected, this will need to be assigned in the programming,
‘Assign Keypads/ Readers’. Each reader will also need to be addressed individually via connecting
certain wires to ground.
Addressing at the Reader
Address 1: Brown, Orange to GND
Address 2: Brown, Green to GND
Address 3: Brown to GND
NOTE: If using the EUR-108 as access control/entry control please refer to the peripheral
instructions for connection details
