2.6 Keypads & Proximity Readers Wiring
NOTE: When connecting keypads to a Matrix panel, the first keypad must always be ID1.

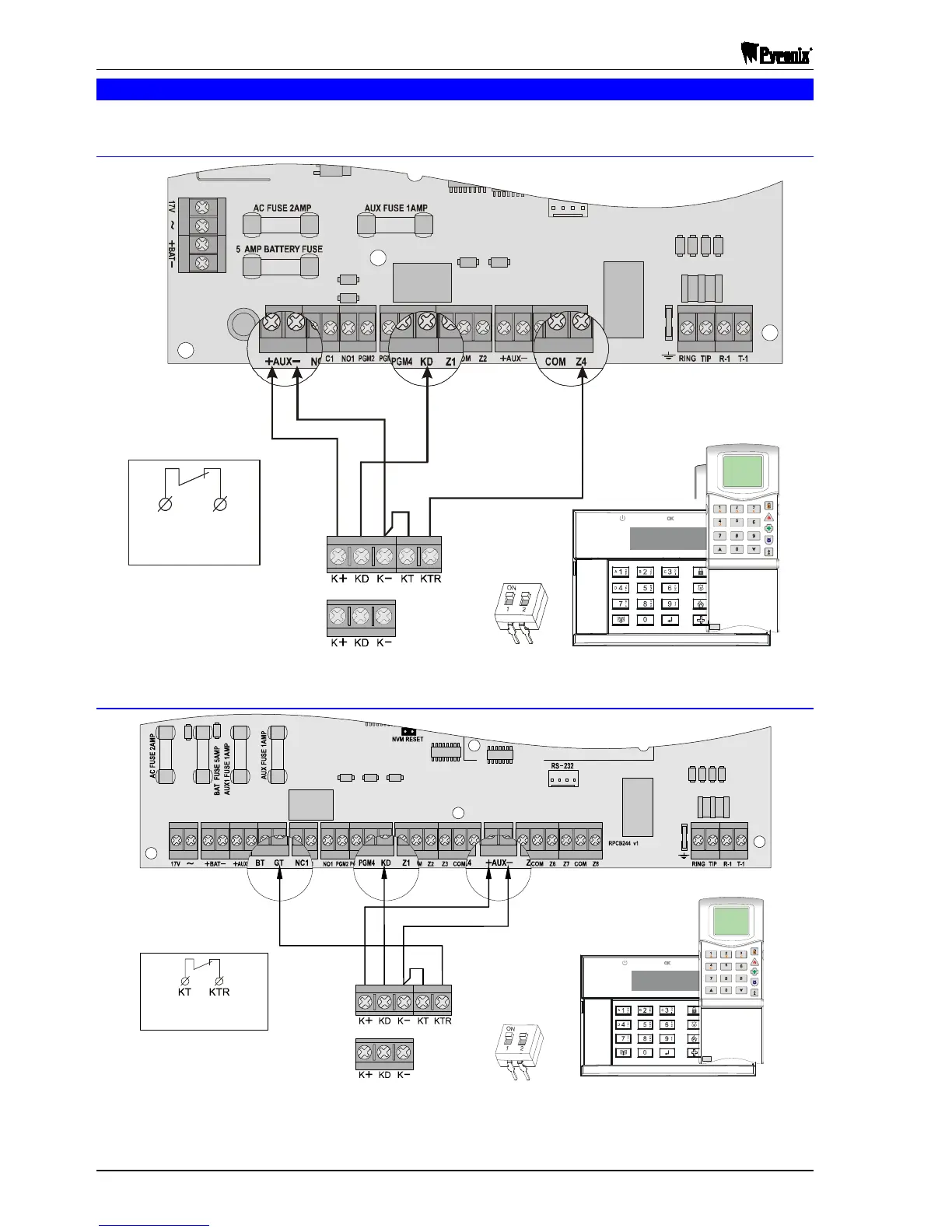

2.6.1 Connecting a Single Keypad to a Matrix 424
MATRIX
Keypad 1
(ID 1)
KT KTR
ICON
Keypad
LCD
Keypad
Tamper terminals
of ICON keypad
NOTE: Tamper connections must go to a zone programmed as Tamper.
2.6.2 Connecting a Single Keypad to a Matrix 832
NOTE: After adding or removing equipment from the system, use engineers function 754 to scan for
all devices on the Matrix bus.
ICON
Keypad
LCD
Keypad
KEYPAD 1
(ID1)
MATRIX 832 PCB
Tamper terminals
of ICON Keypad
OK
OK
