Pyronix Matrix 832 Installation Manual

Matrix 424, 832, 832+ Installation Manual
RINS918-6 Page 35

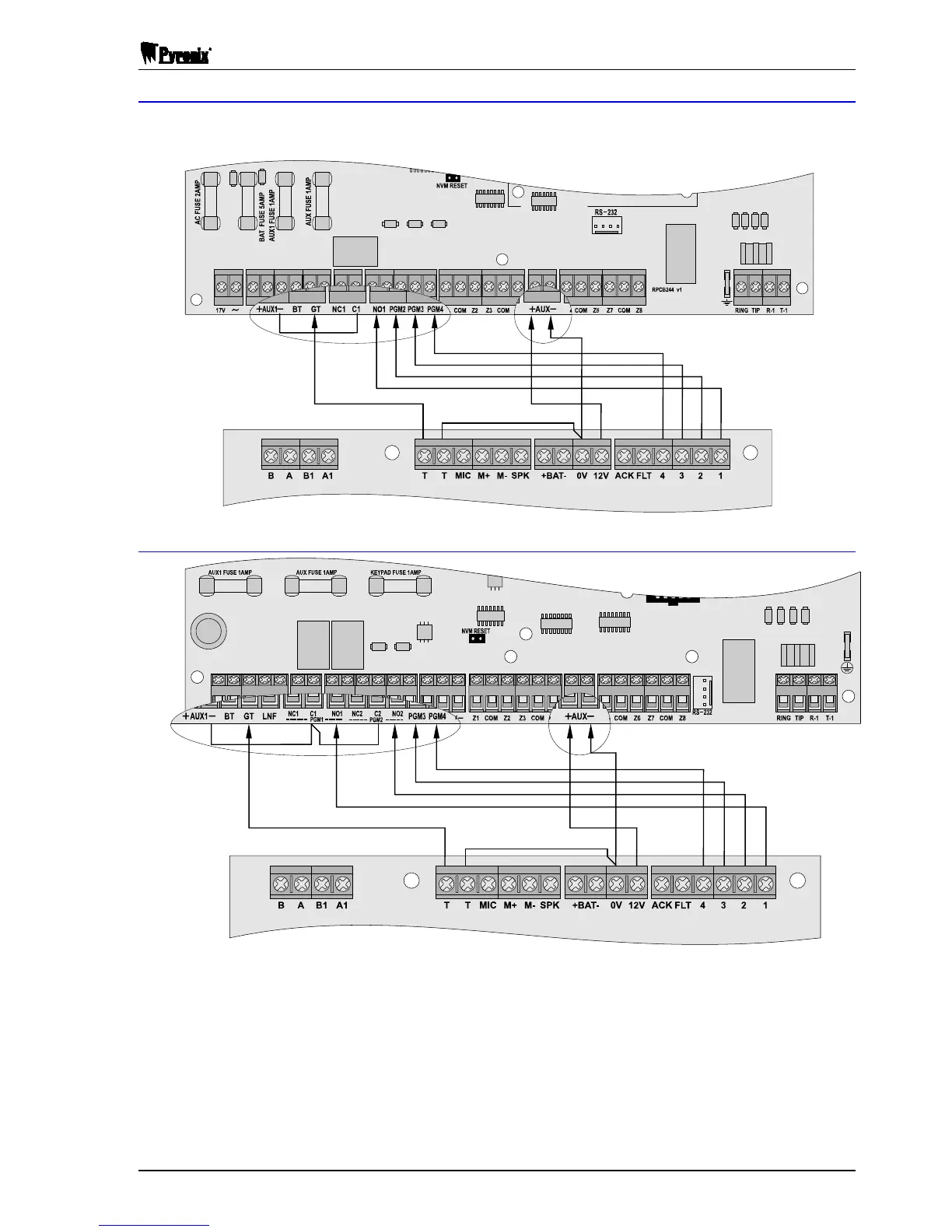

2.13.7 Vocaliser Connection to Matrix 832 (424)
NOTE: Terminal Connections to Matrix 424 are the same as to a Matrix 832, except that the tamper is
connected to a zone programmed as “Tamper”.
2.13.8 Vocaliser Connection to Matrix 832+
NOTE: See Vocaliser Manual for complete Vocaliser programming options.
In the above instances programmable outputs are programmed as follows:
PGM1 = “External Bell”
PGM2 = “Follow PA”
PGM3 = “Follow Fire”
PGM4 = “C+” (if Abort function is required)
MATRIX 832+ PCB
VOCALISER
MATRIX 832 PCB
VOCALISER
