Matrix 424, 832, 832+ Installation Manual
RINS918-6 Page 39

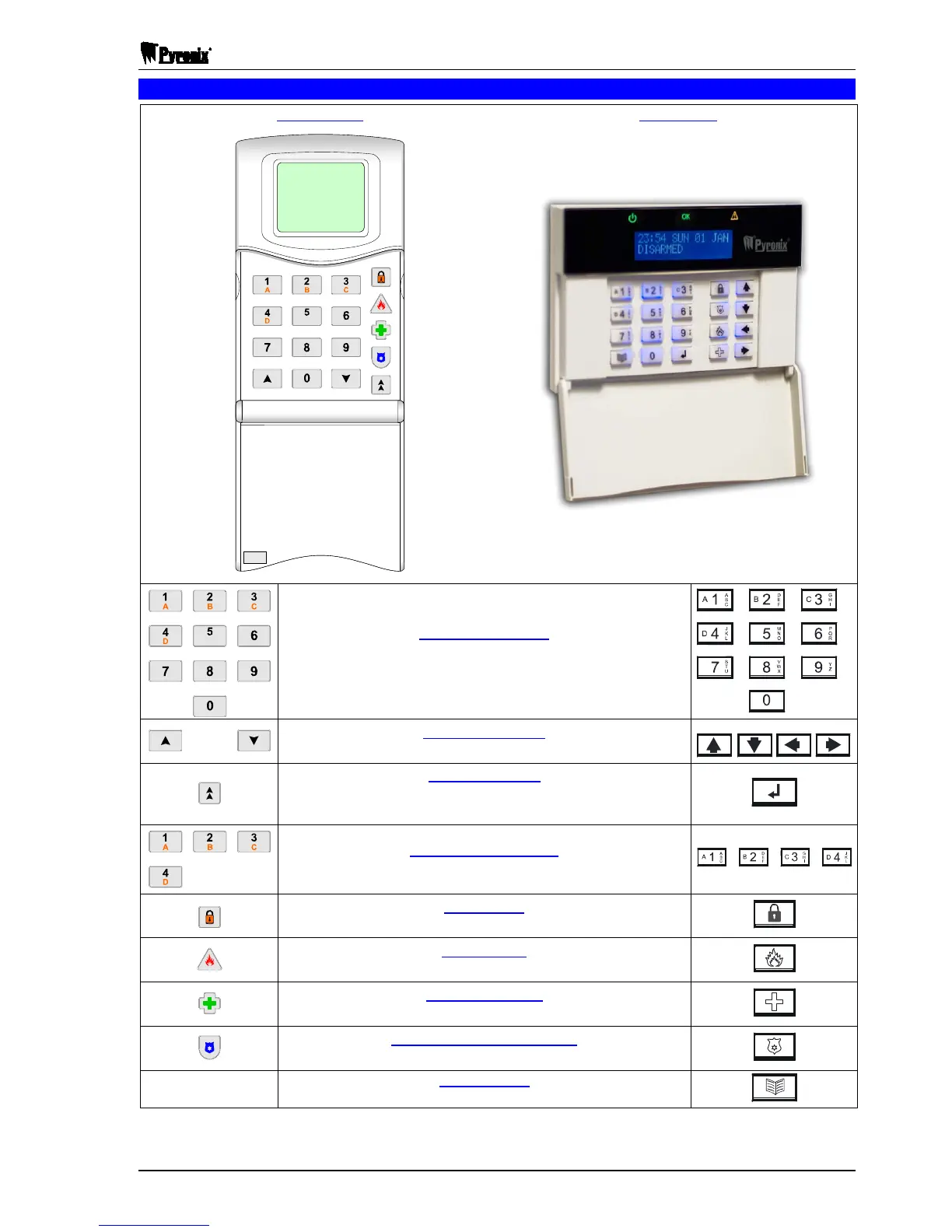

3.3 Keypad Layout & Button Meanings
ICON Keypad
LCD Keypad
Numerical Buttons
Used to enter user codes
and programming the system
Direction Buttons
Used to select options and scroll display
Function Button
Used to enter / exit user mode, engineer mode,
programmable function and to save options
A, B, C and D Buttons
Used to select Partitions/Arm Modes A, B, C or D
Arm Button
Used to change arm mode and options
FIRE Button
Holding this button down for 2 sec. will trigger a Fire Alarm
MEDICAL Button
Holding this button down for 2 sec. will trigger a Medical Alarm
PERSONAL ATTACK Button
Holding this button down for 2 sec. will trigger a PA Alarm
Menu Button
Used to enter and exit menu mode
