Matrix 424, 832, 832+ Installation Manual
RINS918-6
Page 53

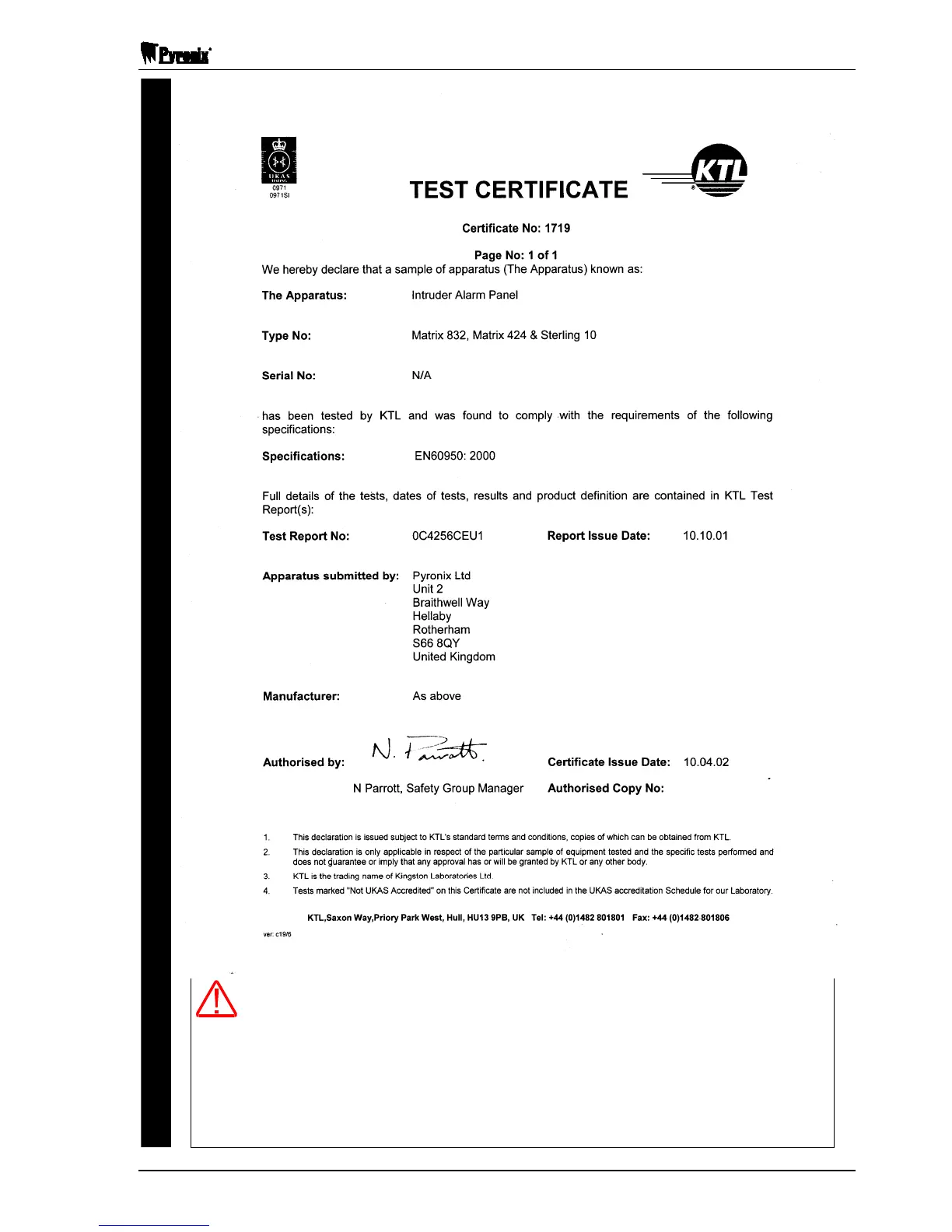

COMPLIANCE
The maximum voltage applied to the equi
pmen
t must not exceed the safety extra low
voltage SELV limits specified in IEC60950 / EN60950 / UL60950 30VDC / 30VAC /
42.4Vpeak.
If you need to switch
greater voltage, cu
rrent or power you will require the use of a
separate external switching relay.
