2 – General Description
Ethernet Port
59225-00 B 2-7
A
2.3
Ethernet Port
The Ethernet port shown in Figure 2-6 is an RJ-45 connector that provides a
connection to a management workstation through a 10/100 Base-T Ethernet
cable. A management workstation can be a Windows®, Solaris™, Linux®, or
MacOS® X workstation that is used to configure and manage the switch fabric.
You can manage the switch over an Ethernet connection using SANsurfer Switch
Manager, the Command Line Interface (CLI), or SNMP. The switch through which
the fabric is managed is called the fabric management switch.
The Ethernet port has two LEDs: the Link Status LED (green) and the Activity LED
(green). The Link Status LED illuminates continuously when an Ethernet
connection has been established. The Activity LED illuminates when data is being
transmitted or received over the Ethernet connection.

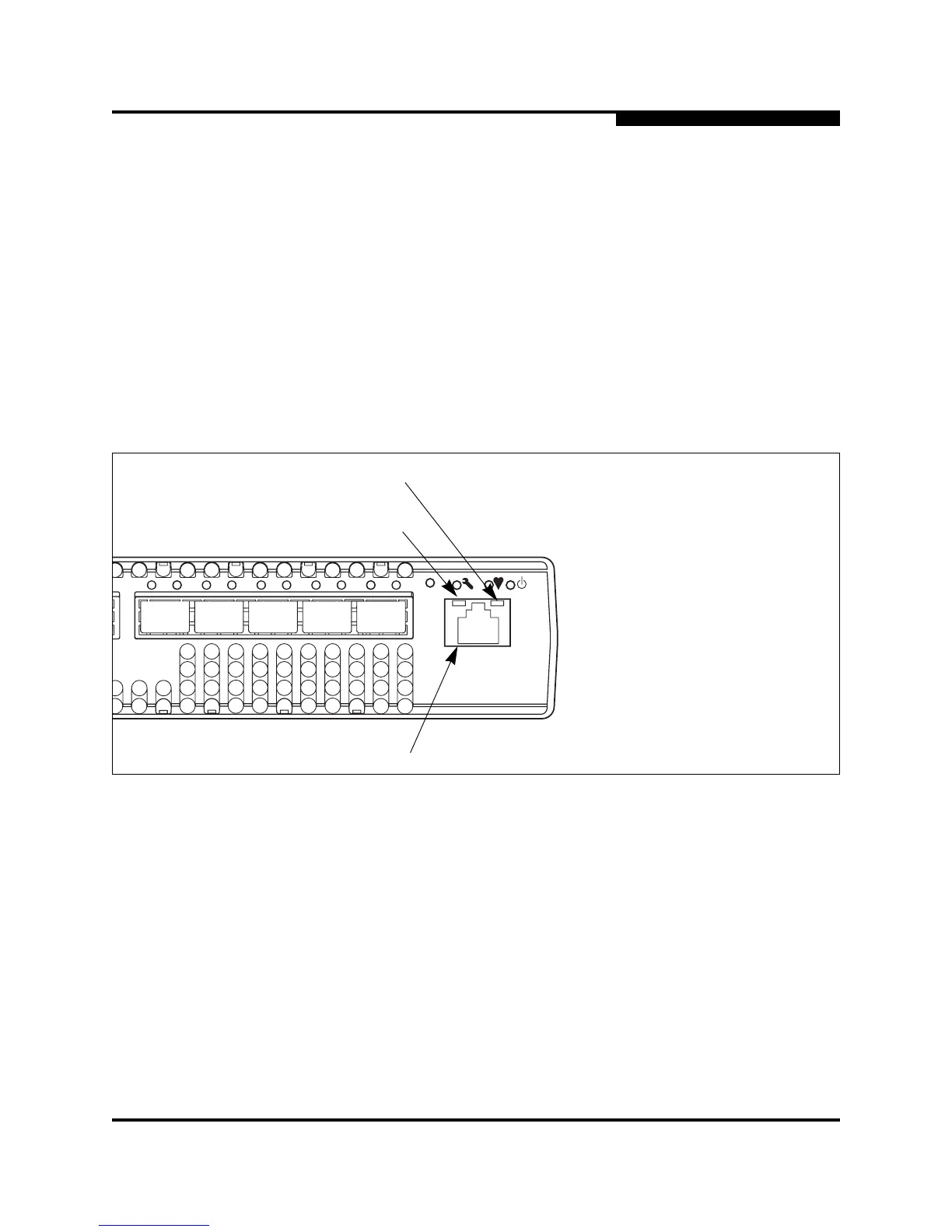

Figure 2-6. Ethernet Port
L A L A
L A L A L A
5 6 7 8 9
RJ-45 Ethernet Port
Activity LED
(Green)
Link Status LED
(Green)
