2 – Using QuickTools
QuickTools User Interface
59235-02 A 2-3
L

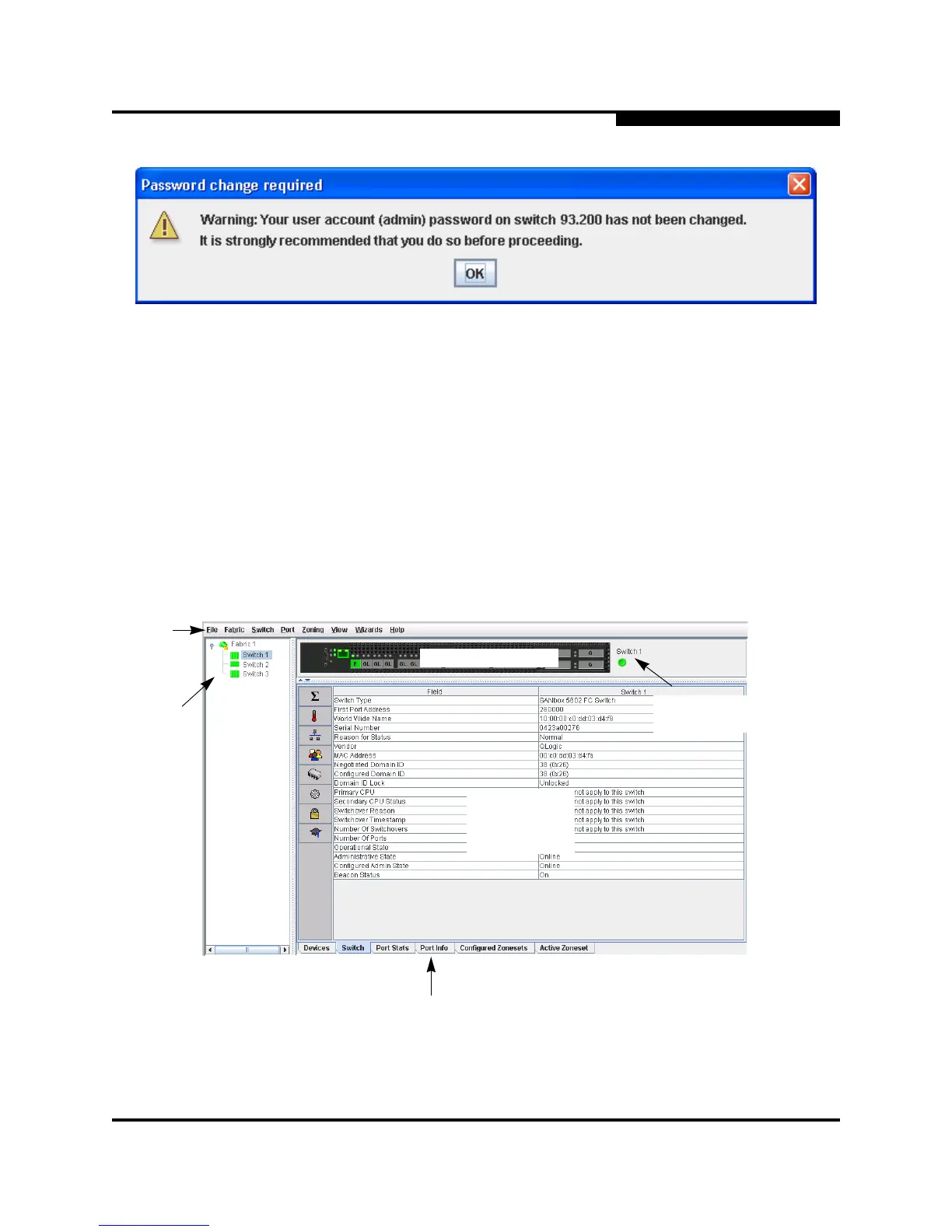

Figure 2-2. Password Change Required Dialog
2.3
QuickTools User Interface
The QuickTools web applet uses the faceplate and backplate displays to manage
the switches in a fabric. The interface, as shown in Figure 2-3, consists of a menu
bar, fabric tree, graphic window, data windows (some with buttons), and data
window tabs. The switch faceplate is displayed in the graphic window and shows
the front of a single switch and its ports. While there is no topology display, the
fabric name is displayed for reference in the fabric tree above the switch names.
Click a switch name or icon to display a different switch faceplate in the graphic
window. Information displayed in the data windows corresponds to the data
window tab selected.
Figure 2-3. QuickTools Interface
Data Window Tabs
Graphic Window
Fabric
Tree
enu
Bar
Data Window
Fabric/Switch Name
and Status
To Next Page
