4 – Managing Switches
Configuring a Switch
59235-02 A 4-23
L
4.6.5
Network Properties
Use the Network Properties dialog shown in Figure 4-10 to change IP
configuration parameters. After making changes, click the OK button to put the
new values into effect. To open the Network Properties dialog, choose one of the
following:
Open the faceplate display for the switch you be configuring. Open the
Switch menu and select Network Properties.
Right-click a switch graphic in the faceplate display, and select Network
Properties from the popup menu.

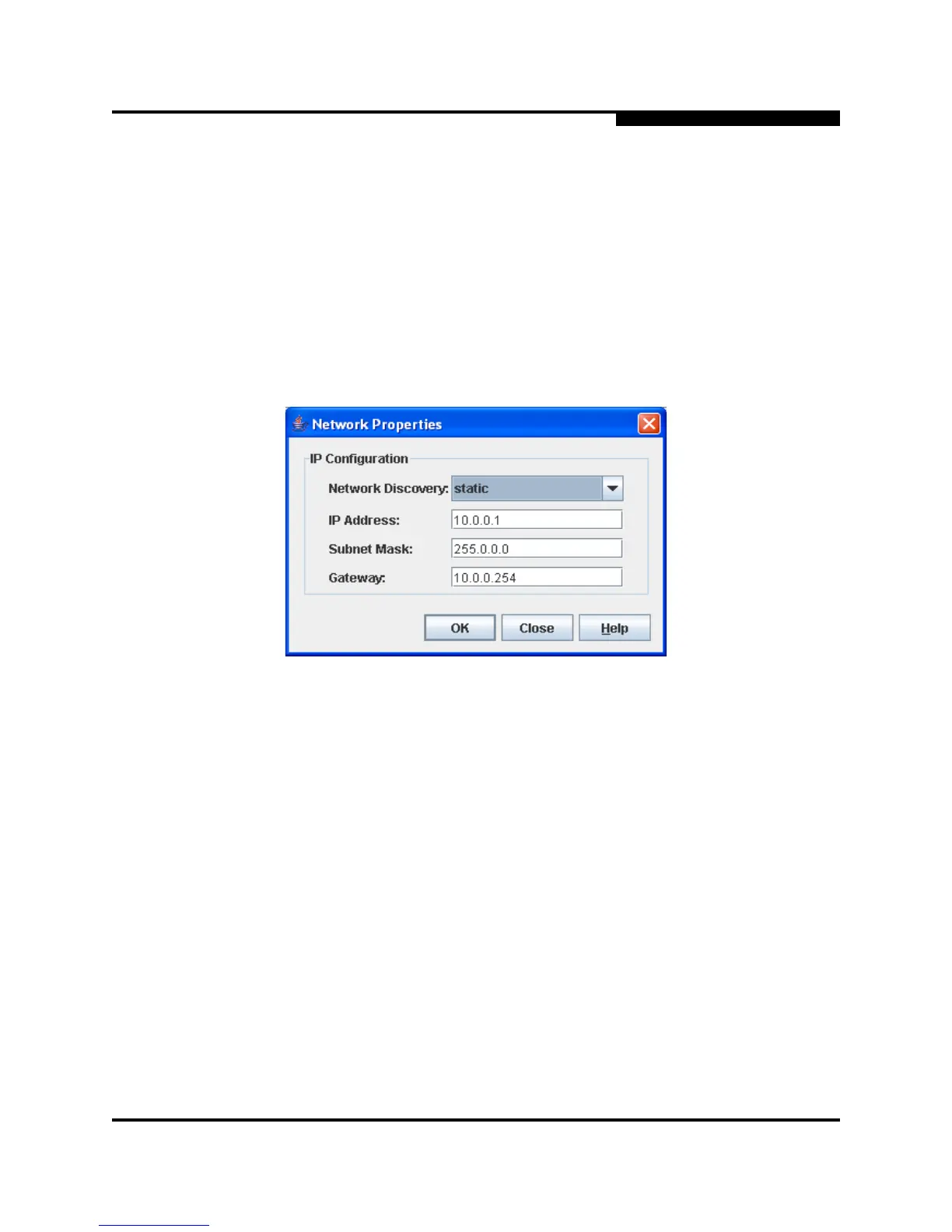

Figure 4-10. Network Properties Dialog
