4 – Managing Switches
Configuring a Switch
59235-02 A 4-25
L
4.6.6
SNMP Properties
Use the SNMP Properties dialog shown in Figure 4-11 to change SNMP
configuration parameters. After making changes, click the OK button to put the
new values into effect. To open the SNMP Properties dialog, choose one of the
following:
Open the faceplate display for the switch you be configuring. Open the
Switch menu and select SNMP Properties.
Right-click a switch graphic in the faceplate display, and select SNMP
Properties from the popup menu.

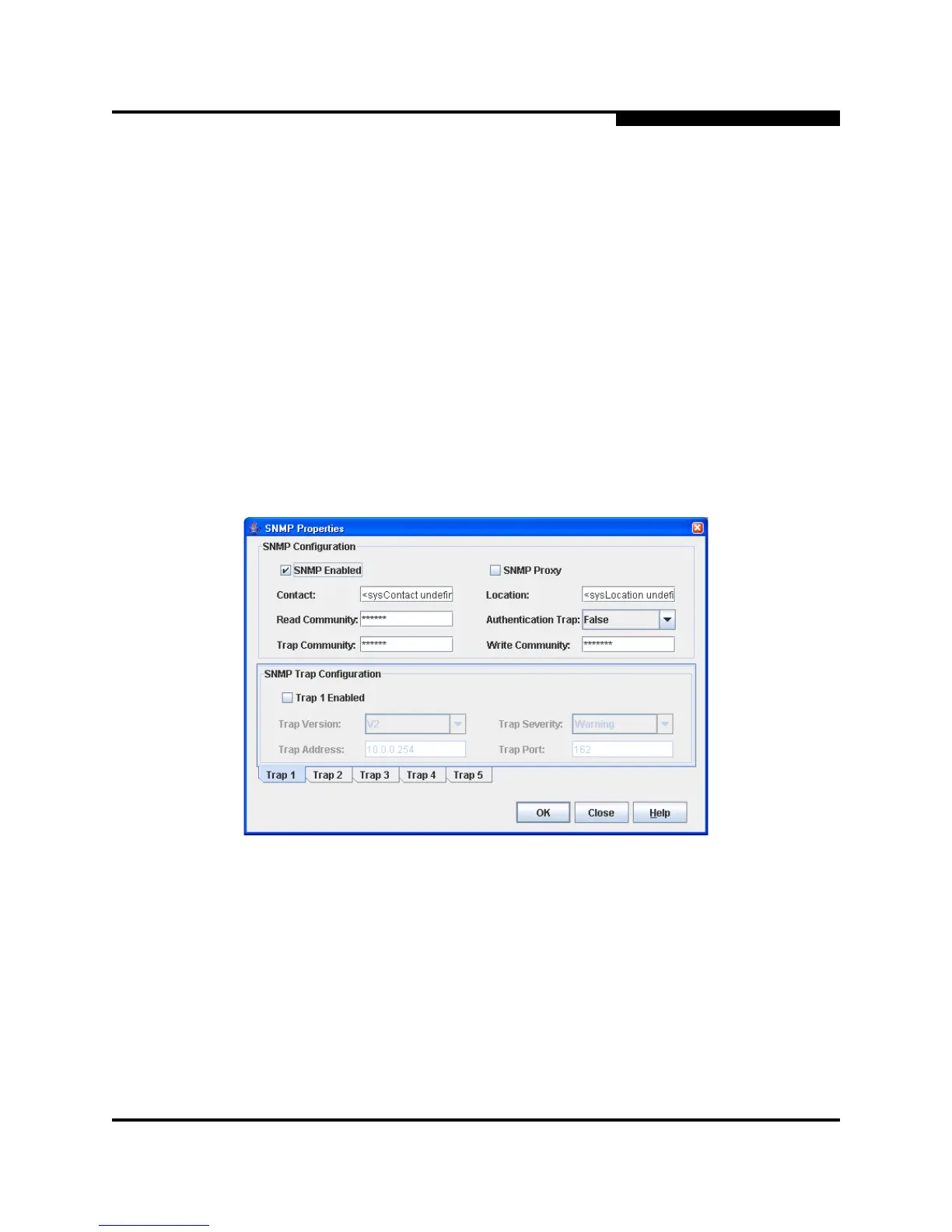

Figure 4-11. SNMP Properties Dialog
Note: Since the Read Community, Trap Community, and Write Community
settings are like passwords and are write-only fields, the current
settings are displayed as asterisks.
