QNAP REXP-1220-RP User Manual

27
Chapter 4. Cable the System
4.1. Cabling Instructions

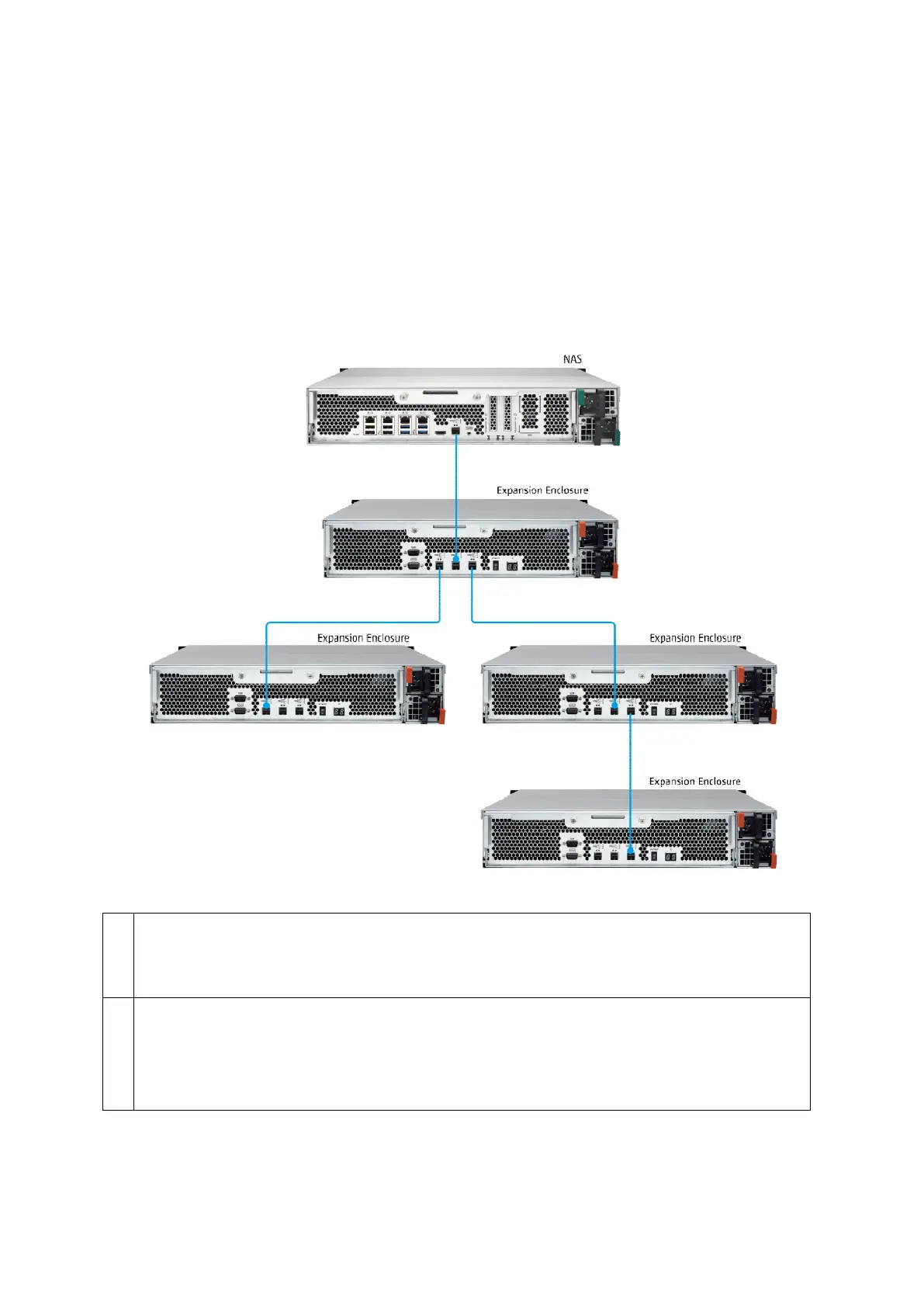

An example of connecting a QNAP NAS to four REXP-1200U-RP enclosures is shown below.
1 Connect the QNAP NAS to the REXP-1220U-RP:
If one REXP-1200U-RP enclosure is configured, connect storage expansion ports on
the NAS to the expansion port of the enclosure.
2 Connect the REXP-1220U-RP to other REXP-1220U-RP:
If two REXP-1220U-RP enclosures are configured, connect one of *the mini SAS ports
to a port on the other REXP-1220U-RP using the external Mini SAS cable (SFF-8644).
(*Note: An optional storage expansion card is required on the QNAP NAS.)
An example of connecting a QNAP NAS to four REXP-1200U-RP enclosures is shown below.
