Important

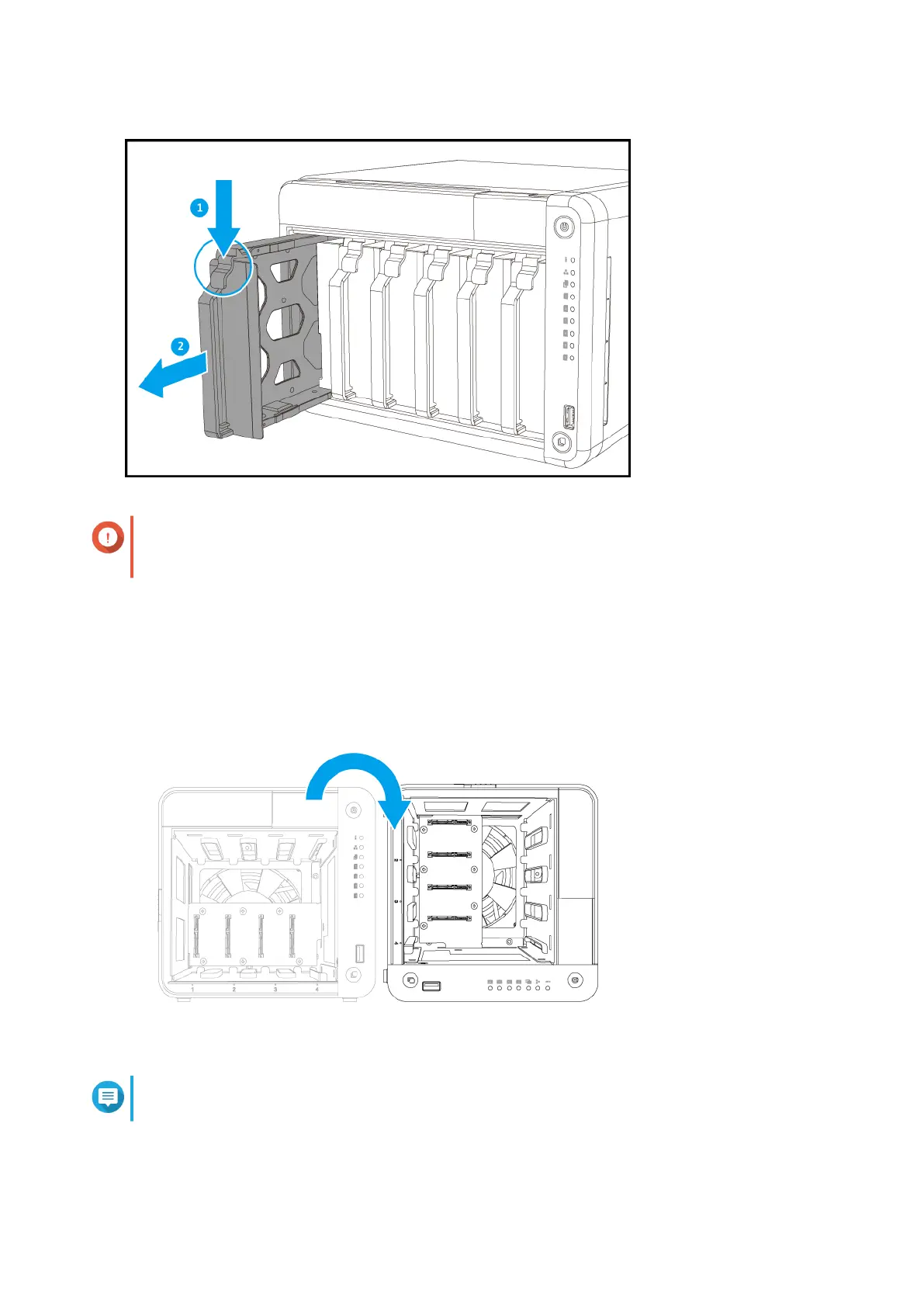

Remember the number of each drive. The drive trays will need to be returned to their original
bays.
b.
Pull the tray handle outward.
c.
Pull the tray out.
6.
Place the NAS on its right side.
Note
This image shows the TS-453D model.
7.
Optional: Remove an existing module.
TS-x53D User Guide
Installation and Configuration
24
24
26
Table of Contents
Table of Contents
2
Preface
4
About this Guide
4
Audience
4
Document Conventions
4
Product Overview
5
About TS-X53D
5
Hardware Specifications
5
Package Contents
7
Components
8
Front Panel
8
Rear Panel
8
Right Panel
9
Drive Numbering
10
Safety Information
11
Installation Requirements
12
Setting up the NAS
12
Installation and Configuration
14
Hardware Installation
14
Installing Drives
14
Replacing Memory Modules
23
Installing Expansion Cards
29
Installing Expansion Units
36
QTS Installation
39
Installing QTS Using Qfinder Pro
39
Installing QTS Using the Cloud Key
40
Installing QTS Using an HDMI Connection
42
Basic Operations
43
Power Button
43
Reset Button
44
USB One Touch Copy Button
44
Leds
45
Audio Alert
47
Troubleshooting
48
Forcing Qfinder Pro or Myqnapcloud to Locate the NAS
48
Hot-Swapping Failed Drives
48
Recovering Unintentionally Removed Healthy Drives
49
Support and Other Resources
49
Glossary
50
Cloudkey
50
Myqnapcloud
50
Myqnapcloud ID
50
Qfinder Pro
50
Qts
50
Notices
51
Limited Warranty
51
Disclaimer
51
GNU Public License
51
FCC Notice
59
CE Notice
59
Sj/T 11364-2006
60
