• Do not bend the module.

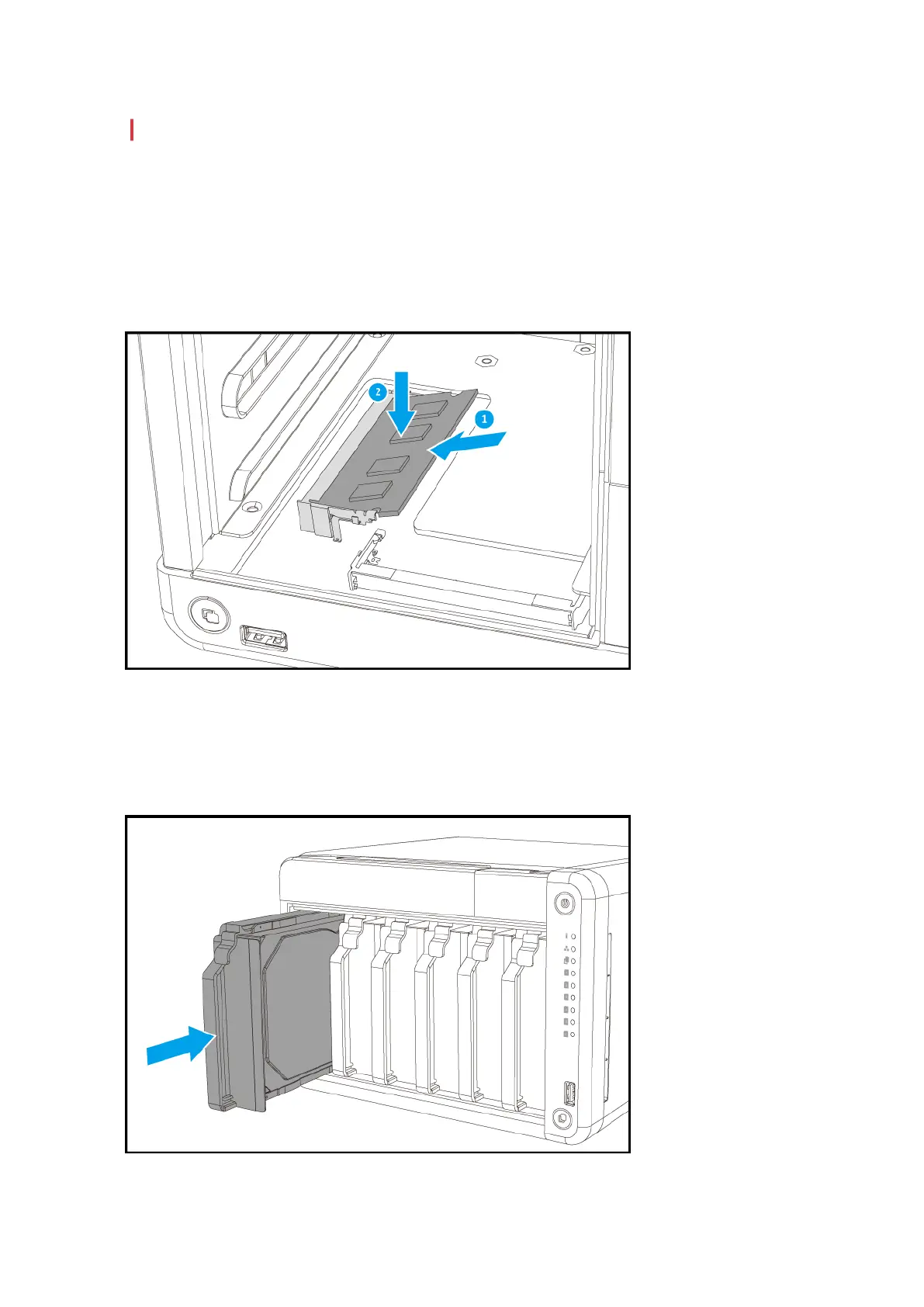

8. Install a new module.
a. Align the notch with the ridge in the slot.
b. Insert the module into the slot.
c. Verify that the metal connectors are completely inserted into the slot.
d. Carefully press down on the module until the retention clips lock the module into place.
9. Load the tray into the bay.
a. Insert the tray into the bay.
b. Push the handle.
TS-x53D User Guide
Installation and Configuration 26
