b. Remove the M.2 SSD.
c. Remove the other M.2 SSD.
10. Remove the riser card.
Warning
Do not touch the components on the circuit board or allow the components to come into
direct contact with metallic objects. Doing so may cause damage.

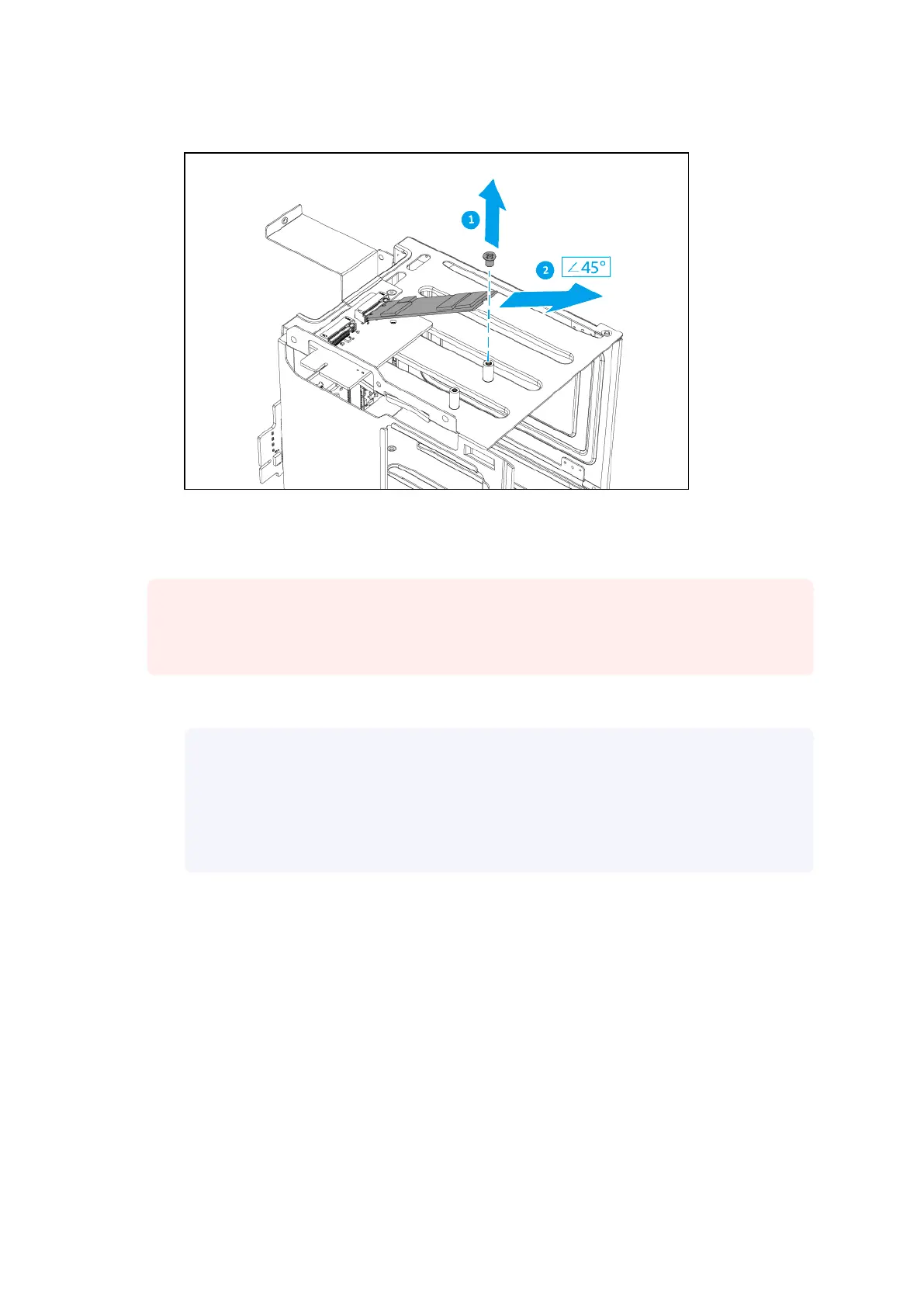

a. Remove the screw that secures the riser card to the drive cage.
Note
• The pan head M3x5 screw requires a Phillips #2 screwdriver.
• A torque of 7 kgf.cm (6.08 lbf.in) ± 0.5 kgf.cm (0.43 lbf.in) is recommended for
electric screwdrivers.
| NAS Repair Manual
Category A NAS Models 17
